Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
1 / 5
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Send Inquiry

Product Description

Yellow DC Gear Motor with Plastic Wheels for Toy Cars

📢
Product Promotion: High-performance yellow DC gear motors designed specifically for toy vehicle applications and DIY robotics projects.

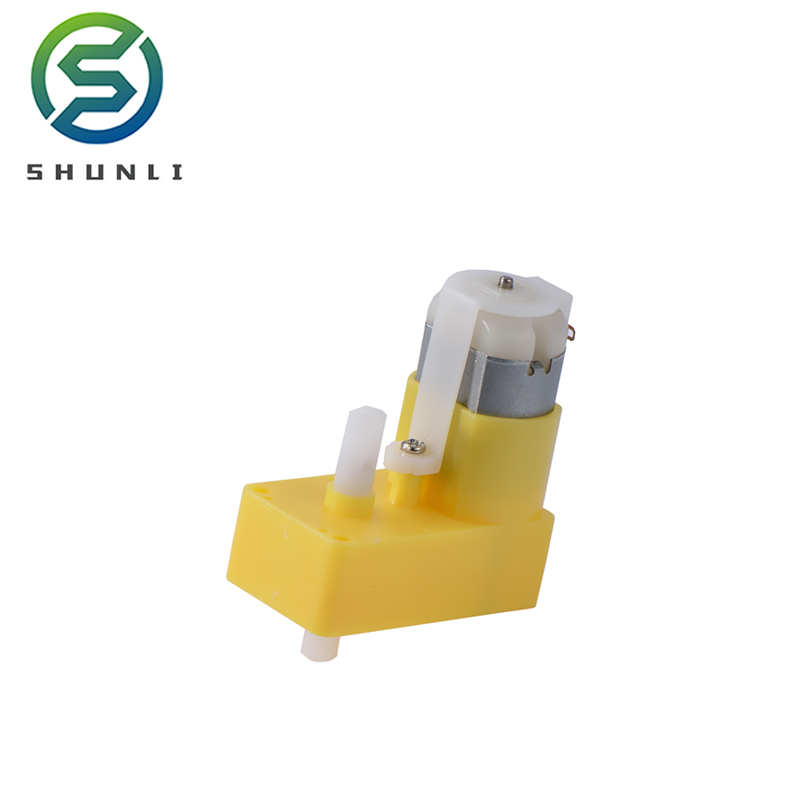

Yellow Dc Gear Motor Front View

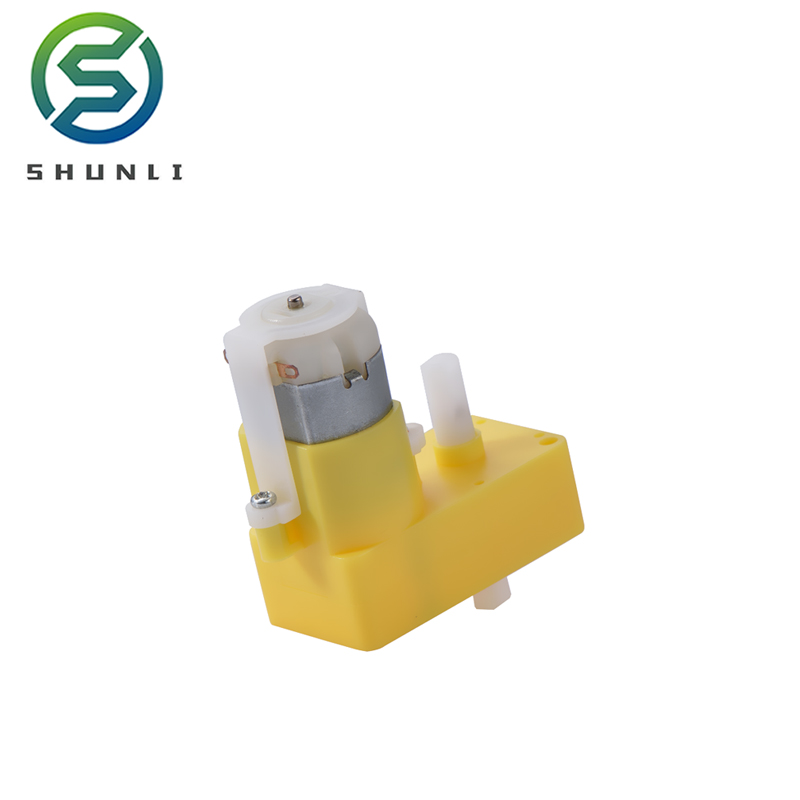

Motor Component Details

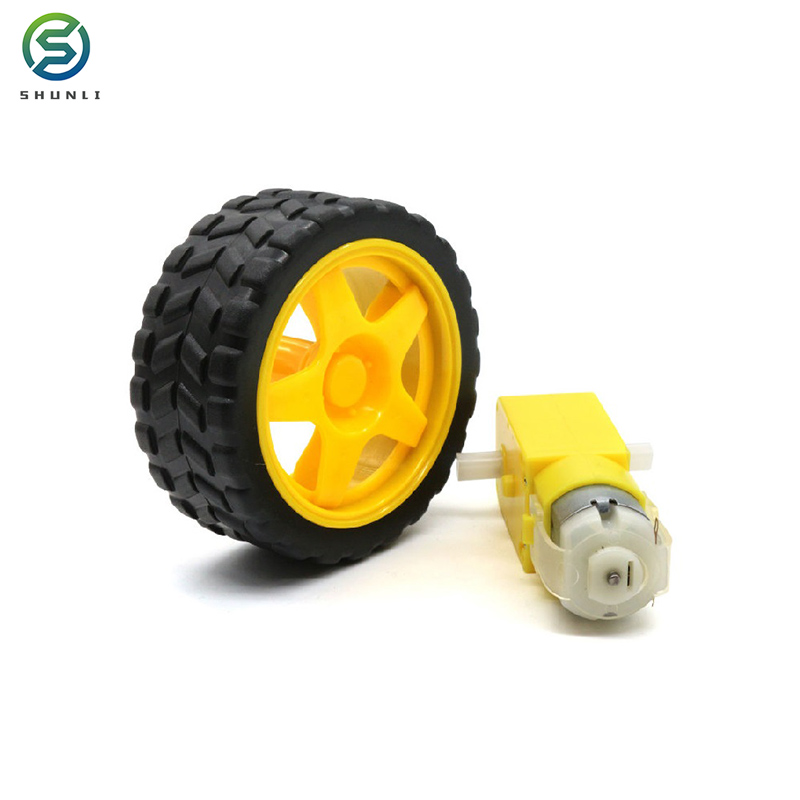

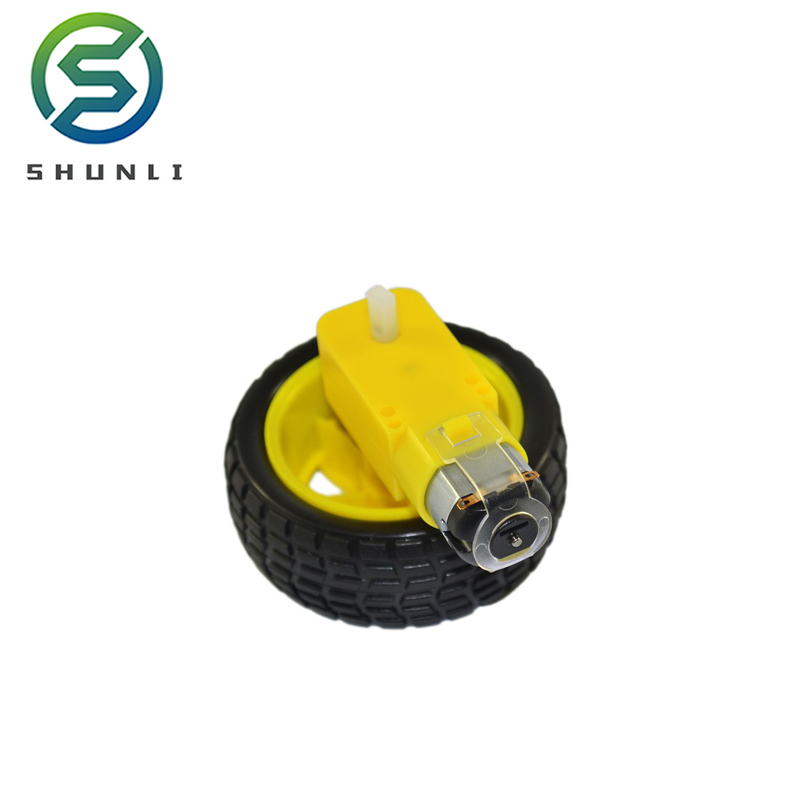

Motor with Wheel Assembly

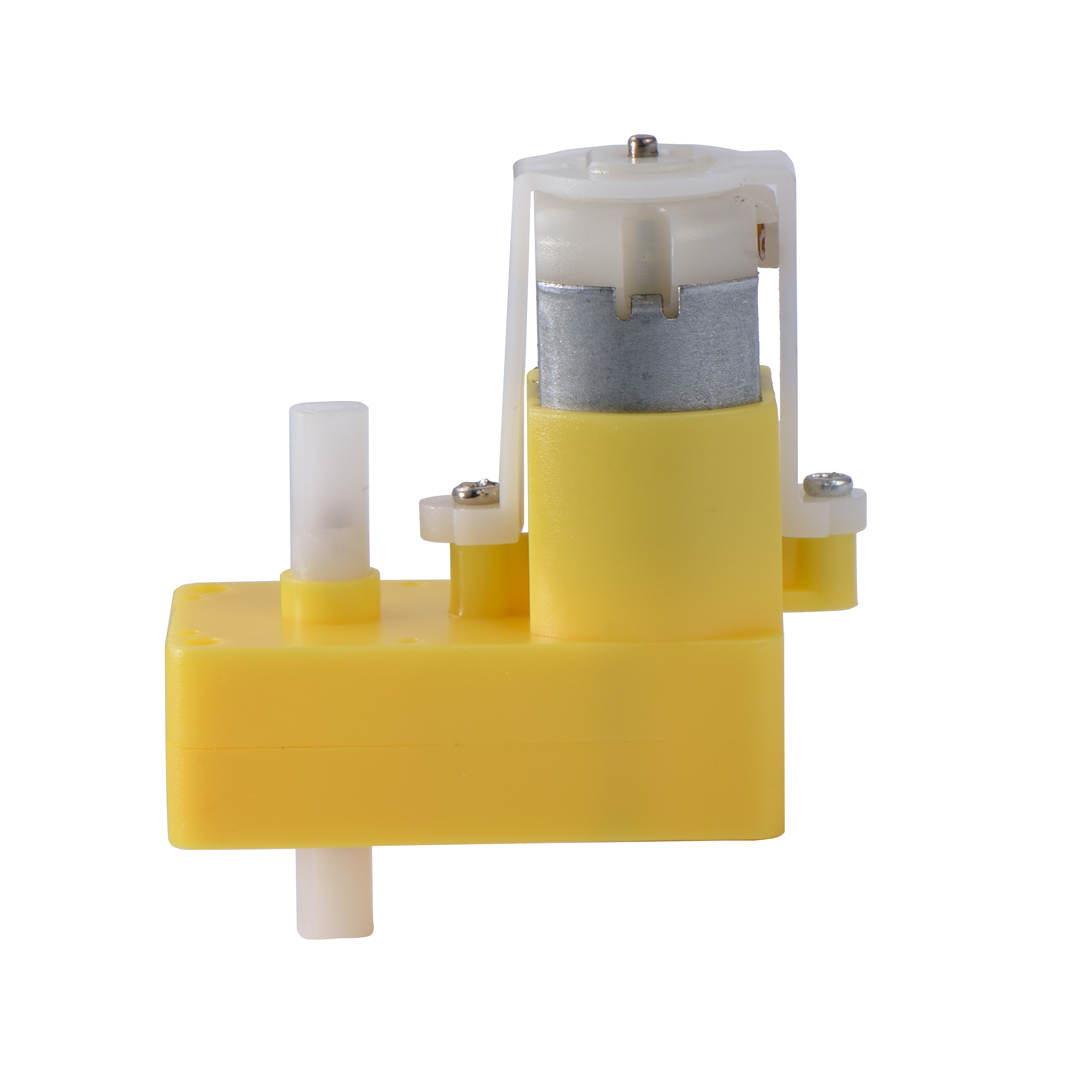

Macro view of Gear Motor

Technical Specifications & Characters

Model Voltage No-load Load Stall
Working Voltage (V) Rated Speed Current Speed Current Torque Output Stall Torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
Technical Dimensional Drawing

Product Gallery & Application

Application View 1
Application View 2
Application View 3
Application View 4
Application View 5
Application View 6

Frequently Asked Questions (FAQ)

What is the operating voltage for these gear motors?
These motors are designed to operate within a flexible voltage range of 3.0V to 12.0V DC, making them compatible with various battery setups.
Are the yellow plastic wheels included with the motor?
The motor and wheels are typically shown as a set for toy car applications. Please refer to the specific model selection for assembly details.
What is the typical no-load speed for these motors?
Depending on the model, the no-load speed ranges from 50 rpm to 100 rpm at rated voltages, providing a good balance of speed and torque for small vehicles.
Can these motors be used for Arduino or Raspberry Pi projects?
Yes, these DC gear motors are highly popular for DIY robotics, smart cars, and educational projects involving microcontrollers.
How much torque do these motors provide?
The stall torque varies by model, ranging from approximately 2.7 Kg.m to 4.0 Kg.m, which is sufficient for most lightweight toy car designs.
Is the gearbox made of plastic or metal?
This specific series features a durable plastic gearbox housing and internal gears, designed for lightweight and cost-effective performance.
