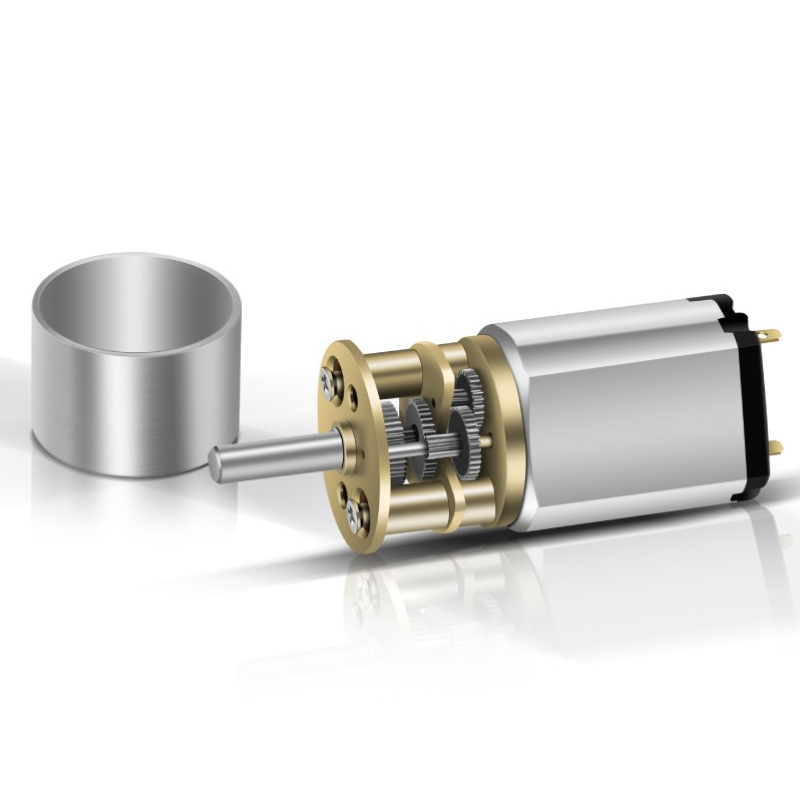

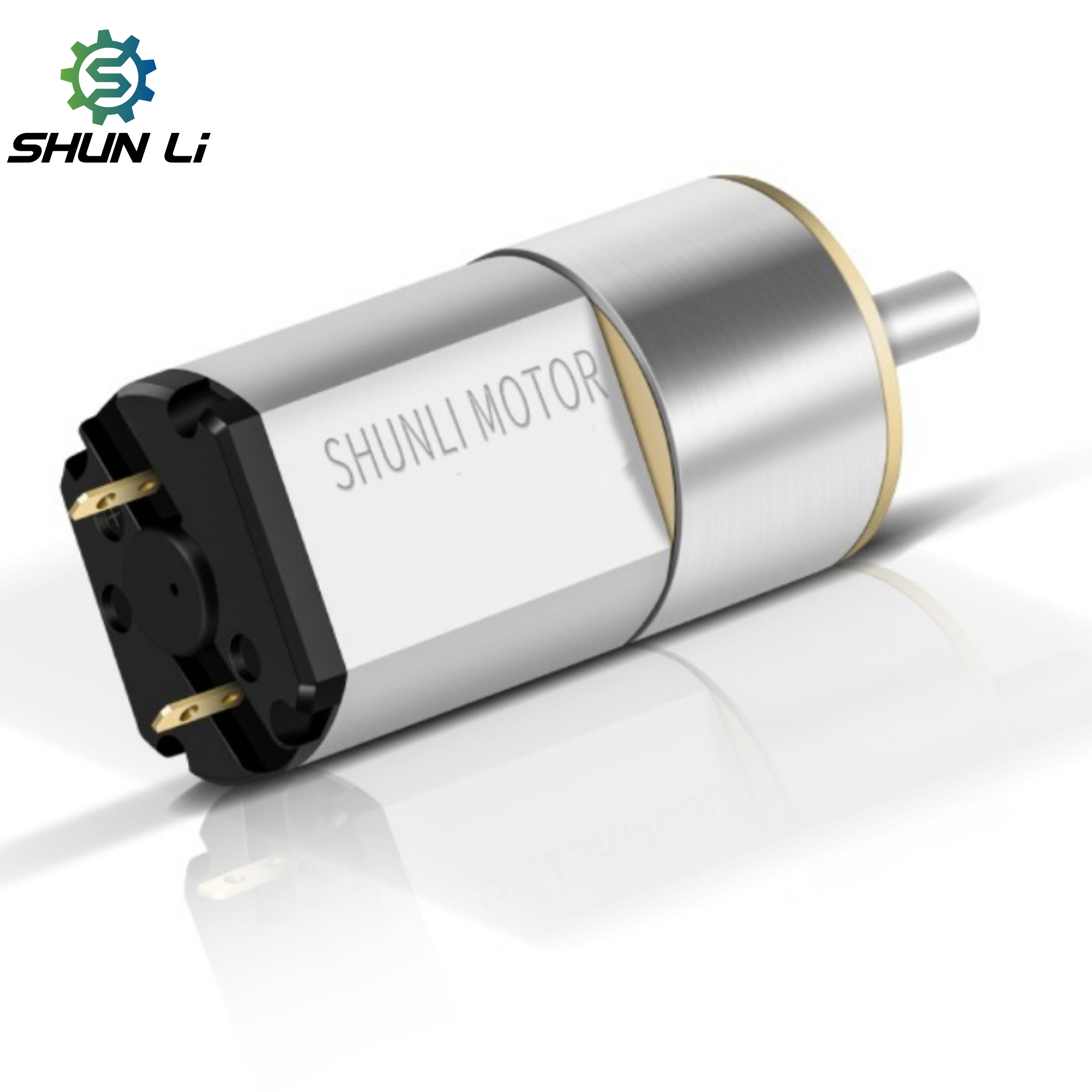

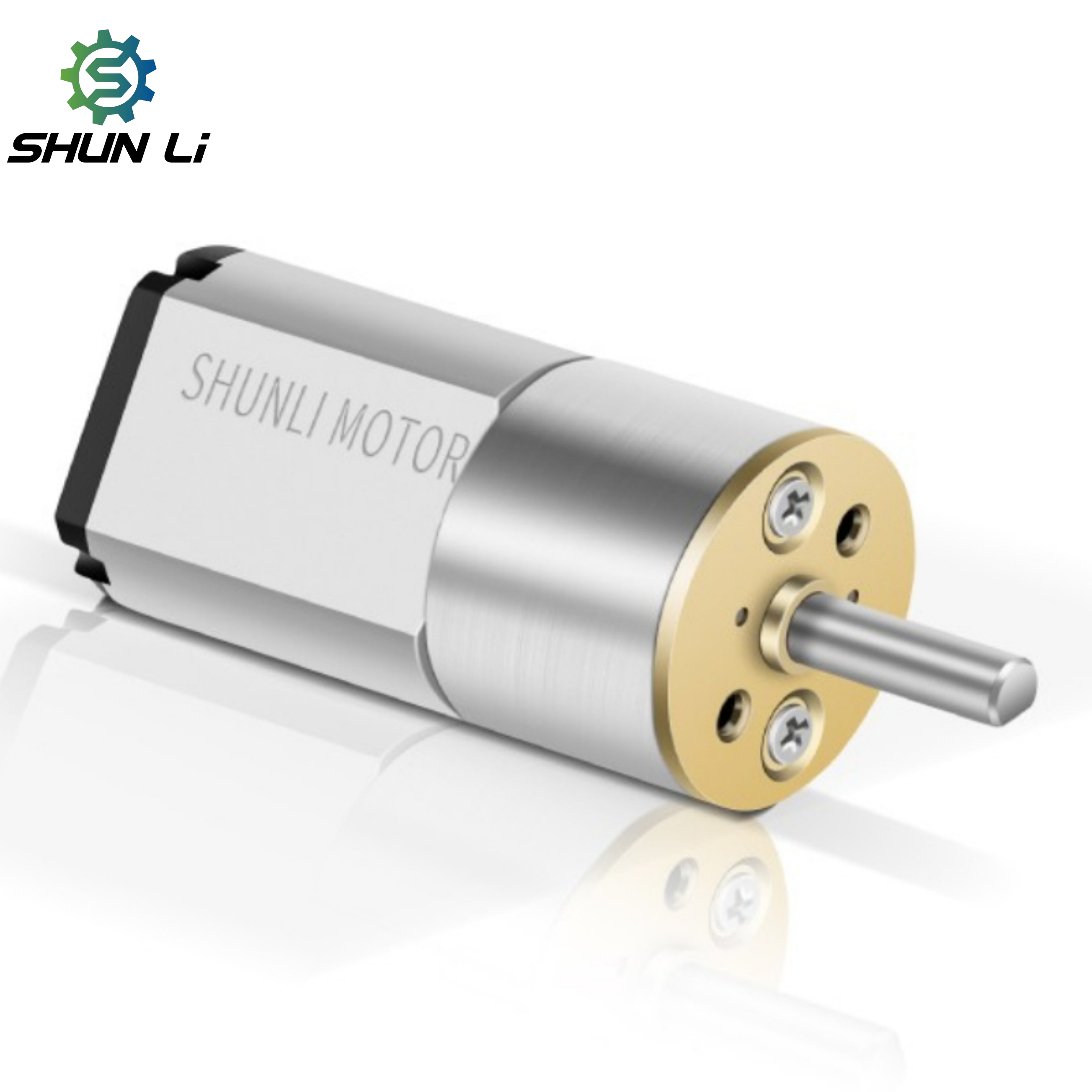

Modulox Drive
Modulox Drive

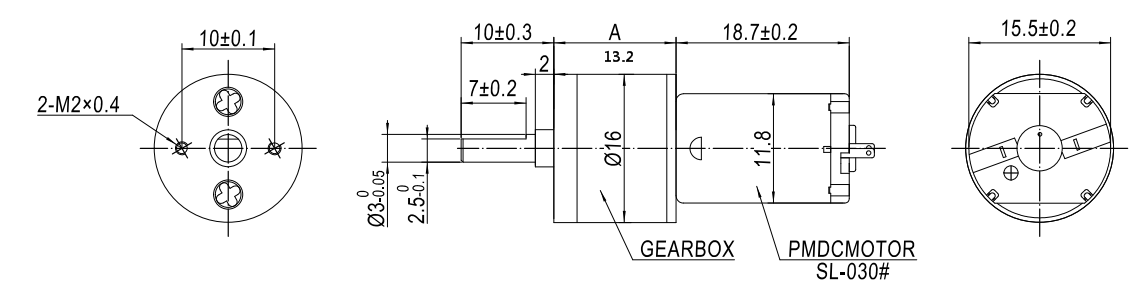

Model: GM16AM030

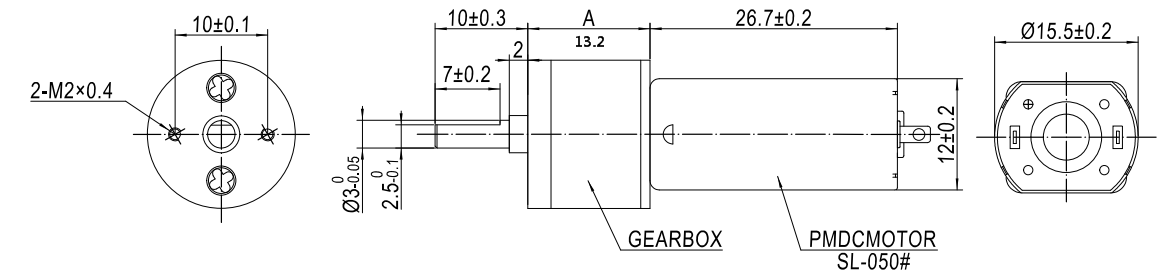

Model: GM16AM050
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (N.m/Kgf.cm) | Current (mA) | Torque (N.m/Kgf.cm) | |||
| GMP16M030-100K | 1:100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1:300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |

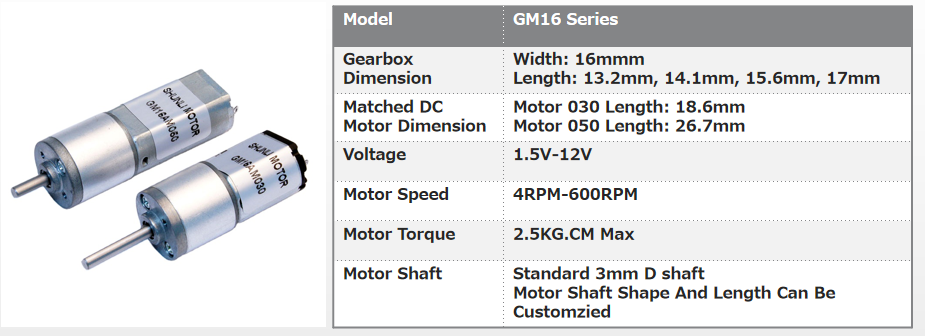

| Number of Stages | 4 | 5 | 6 | 7 |
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |
| Gearbox Length "A" (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
Customer Evaluation
Certifications

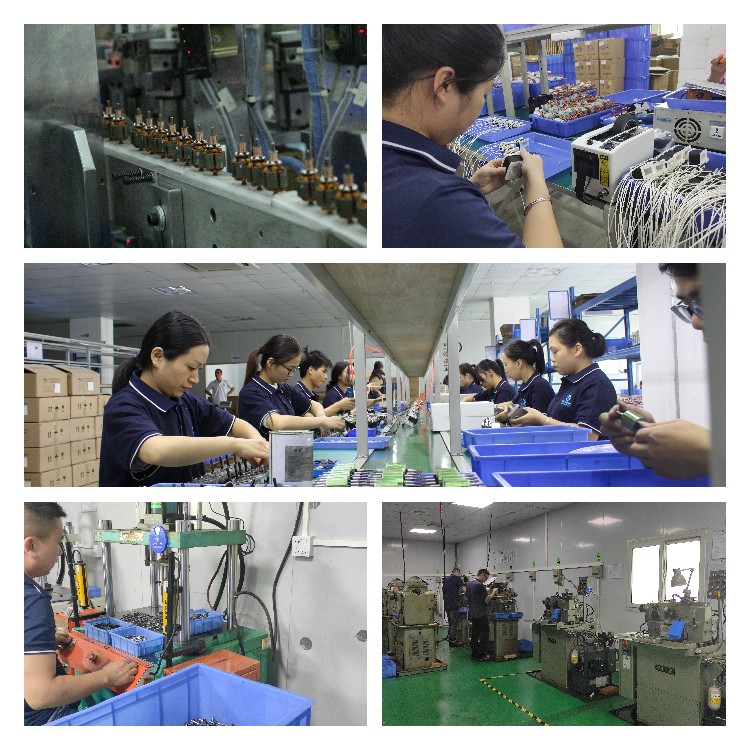

Manufacturing Expertise
Specializing in motor production for more than 14 years, our professional R&D team and mature management ensure a premium experience.

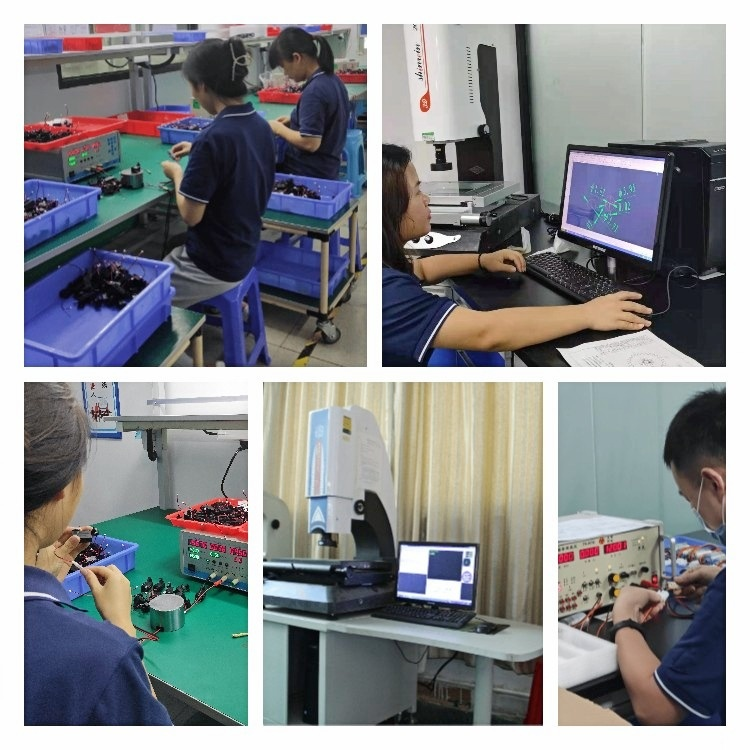

Quality Control
Rigorous quality checks at every step from material receipt to shipment. Quality is the basis of our development.
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
We support multiple payment options including online assurance orders (MasterCard, Visa), PayPal, and TT transfers.
Yes, we provide full customization services to modify technical specifications according to your specific requirements.
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certifications if needed.
We utilize professional inspection staff and high-precision testing equipment including Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers.
Standard samples are generally completed within 2 weeks, while customized samples take approximately 3 weeks.
