Home > DC Gear Motor > 20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

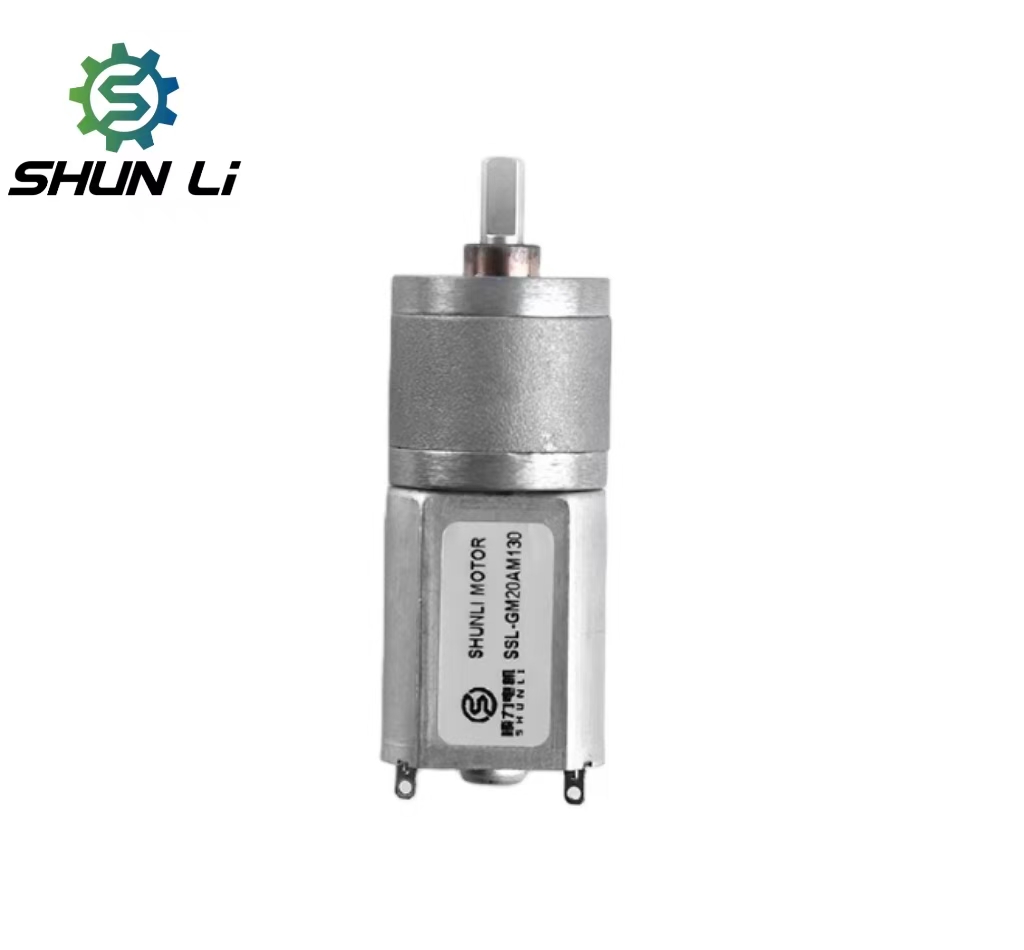

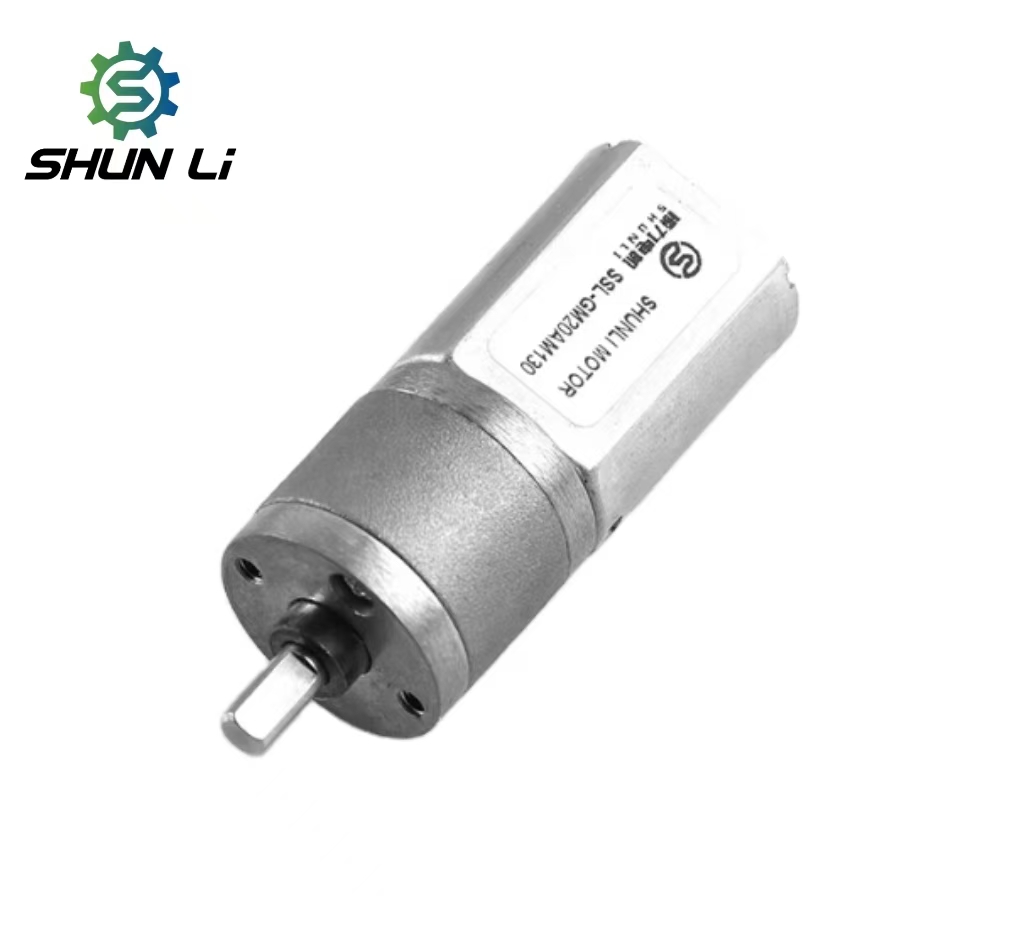

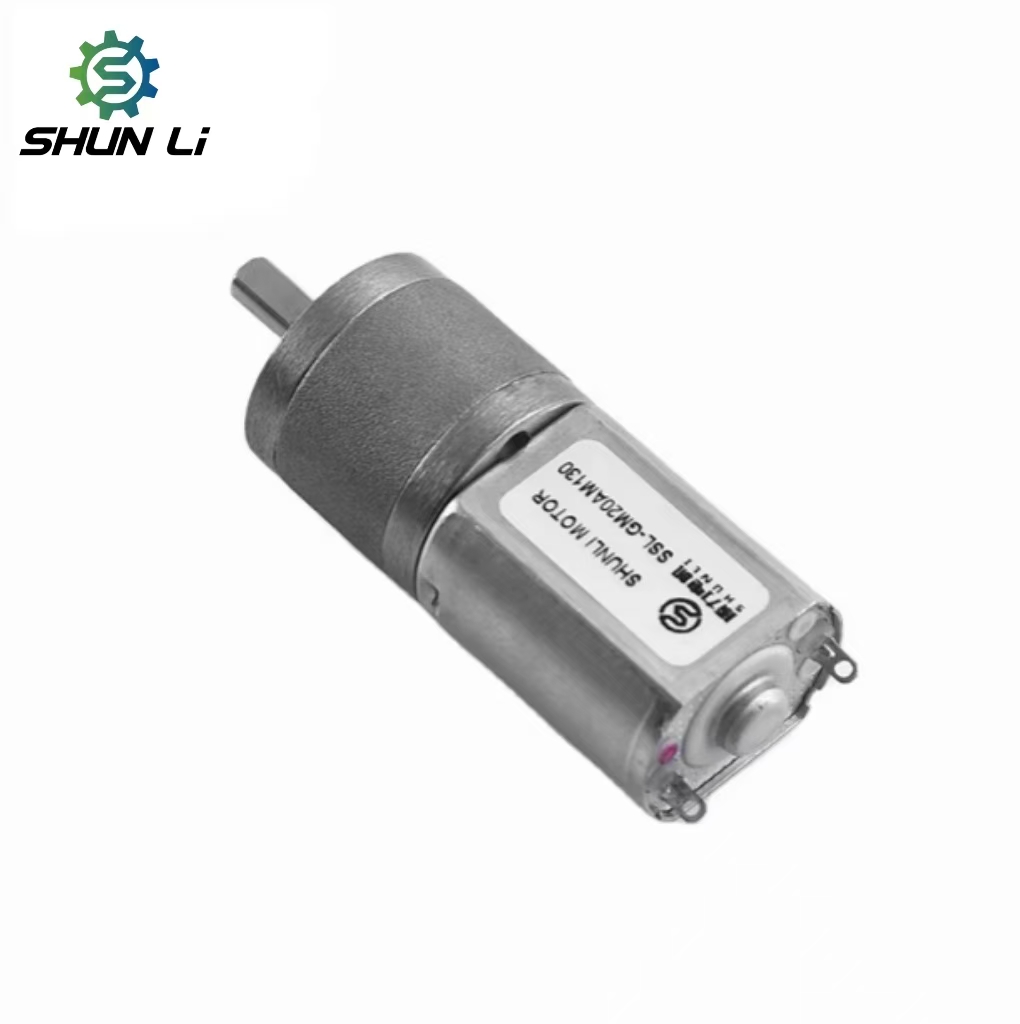

20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
1 / 5
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

Send Inquiry

Product Description

Micro Gear Motor Overview
Product Specification
Product Model GM20AM130/180
Gearbox Length 14.5~20.5mm
Speed 32RPM-88RPM
Voltage 6V/5V
Torque 0.1N.m/0.32N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

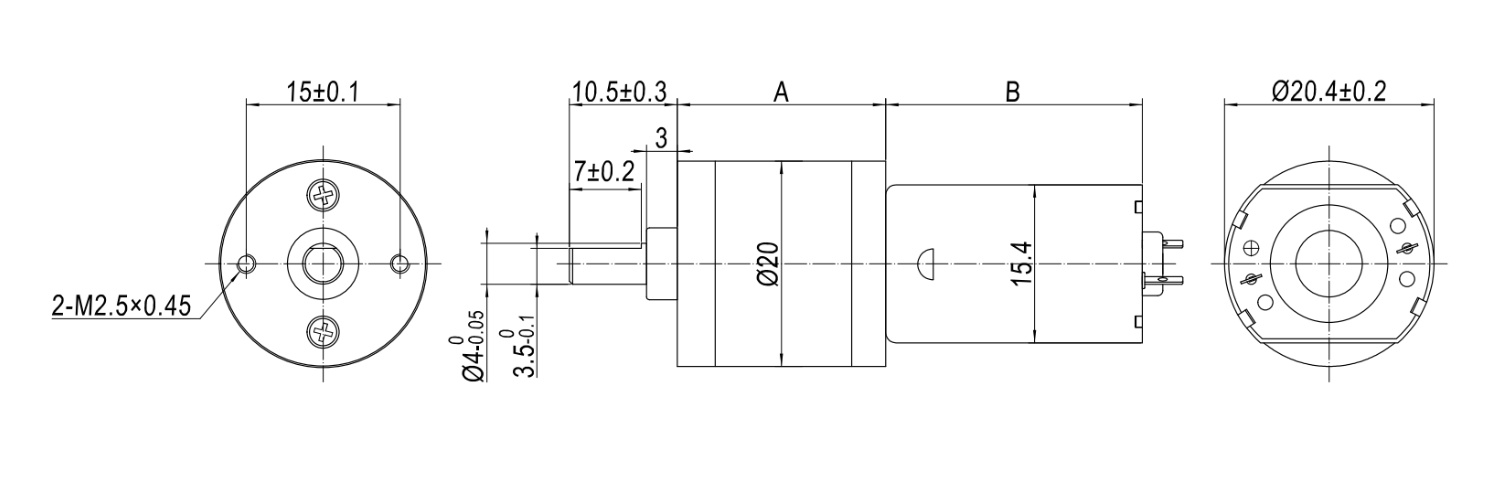

Technical Drawing

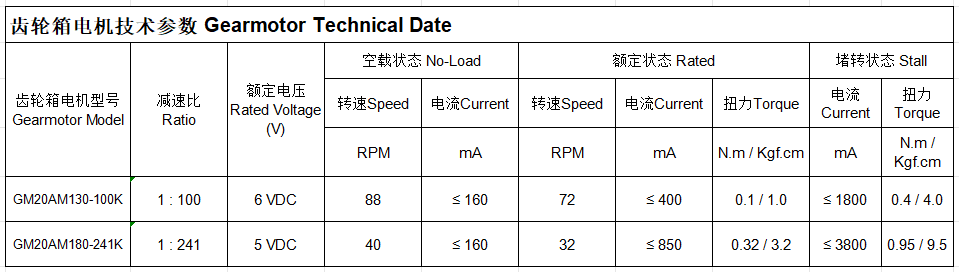

Performance Curves
Product Applications & Details
Motor Application 1
Motor Application 2
Motor Application 3
Motor Application 4
Motor Application 5
Motor Application 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of industry experience.
What are the available payment terms for new customers?
We support online assurance orders which accept Master Card and Visa. Additionally, payments via PayPal or TT are also welcome.
Can you provide customization for specific motor requirements?
Yes, we specialize in customization. We can adjust the motor parameters and transmission dimensions to meet your specific requirements.
What quality certifications do your motors hold?
Our products are certified with CE, FCC, and ISO. If your project requires other specific certifications, we can apply for them accordingly.
How do you ensure product quality control?
We employ professional inspection staff at every production stage. Final products undergo rigorous testing using hardness testers, 2.5D image testers, salt spray chambers, life testers, and noise testers.
What are the typical applications for these micro gear motors?
These motors are widely used in smart home devices, robotics, electronic locks, medical equipment, and precision office automation tools.
