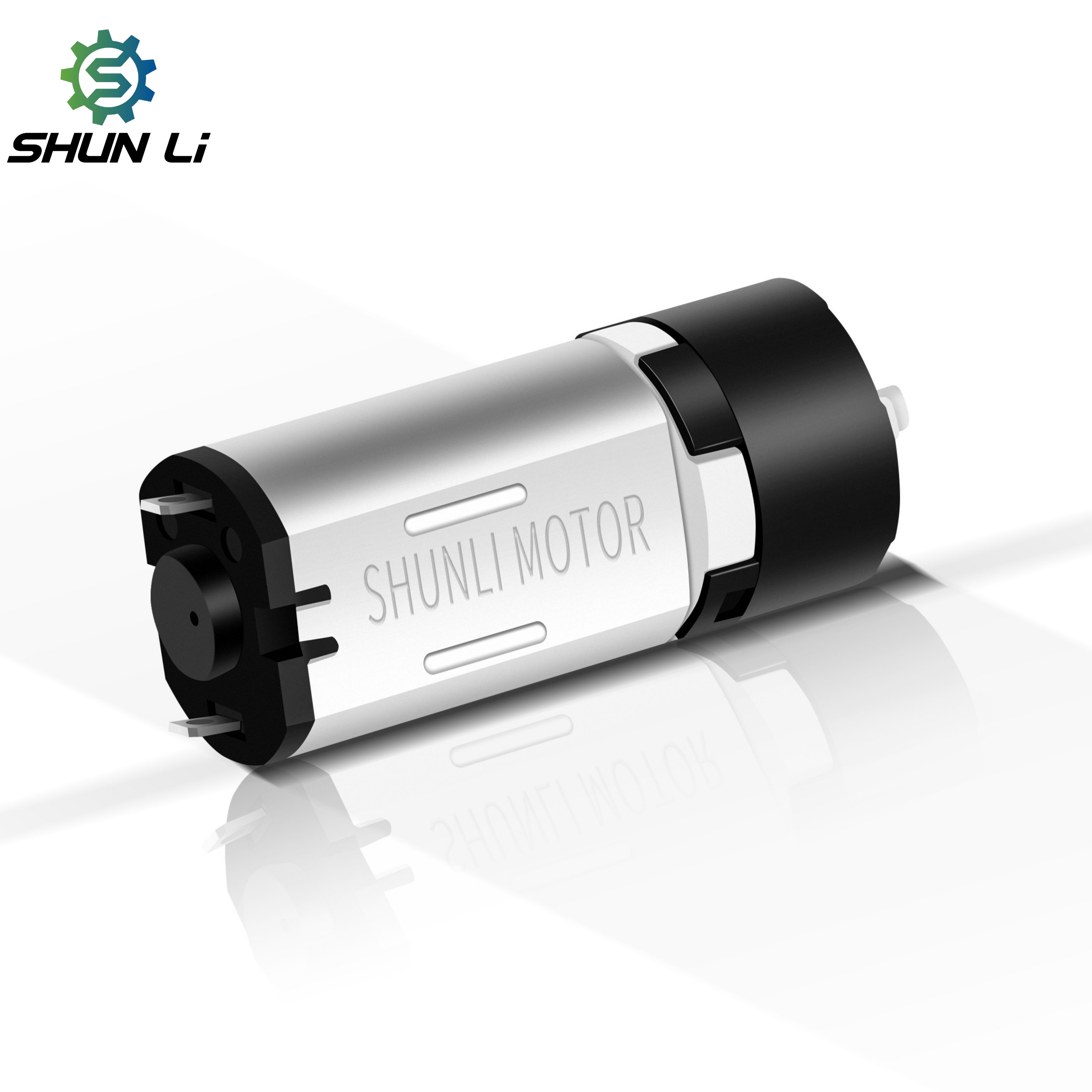

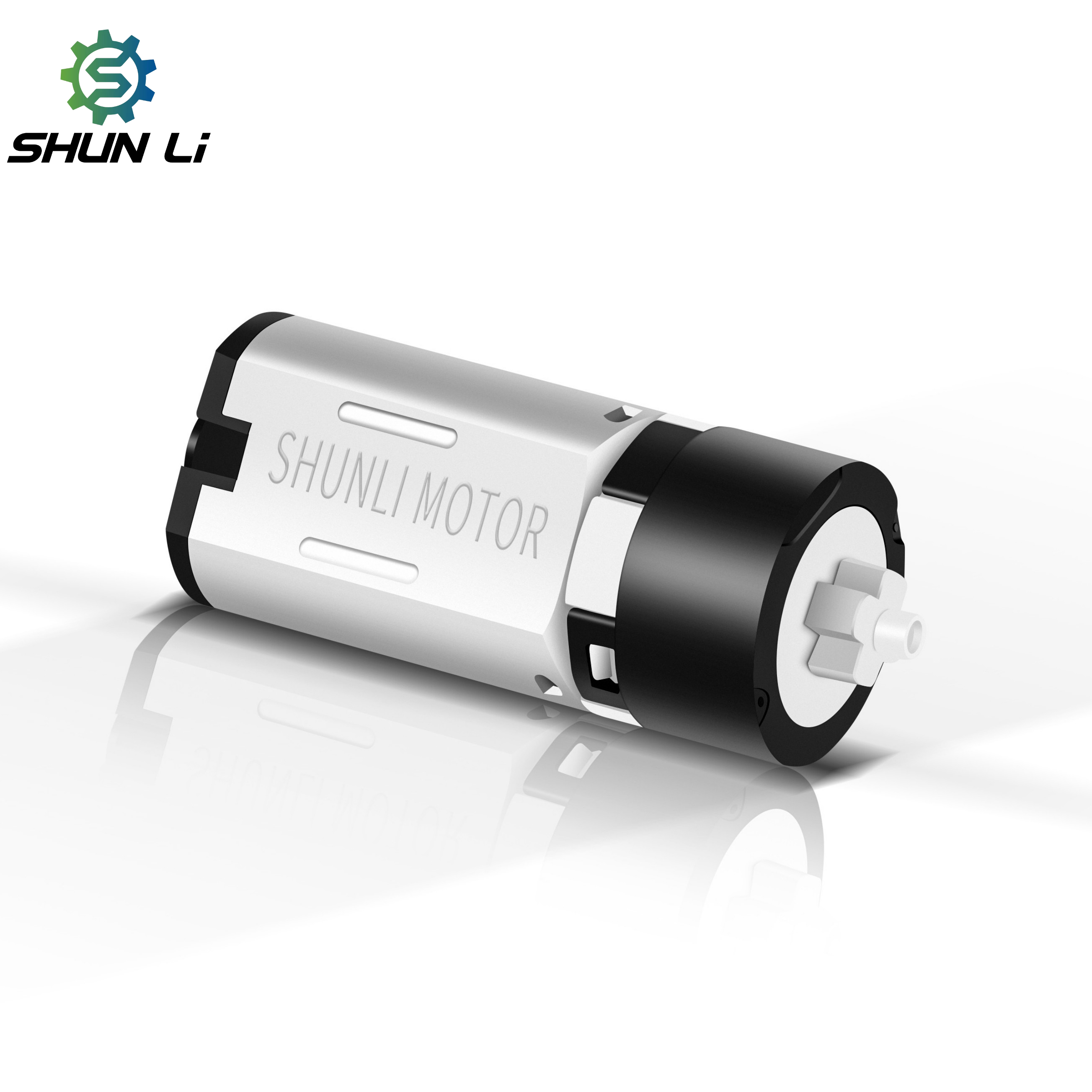

Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
1 / 5
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox

Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox

Send Inquiry

Product Description

Product Overview
Product Detail
Product Model GMP12PMN10/N20/N30
Gearbox Length 19.7±0.5mm
Speed 65RPM-205RPM
Voltage 4.6V/4.5V/12V
Torque 0.2~0.5 mN.m
Customization Dimensions and motor parameters can be customized

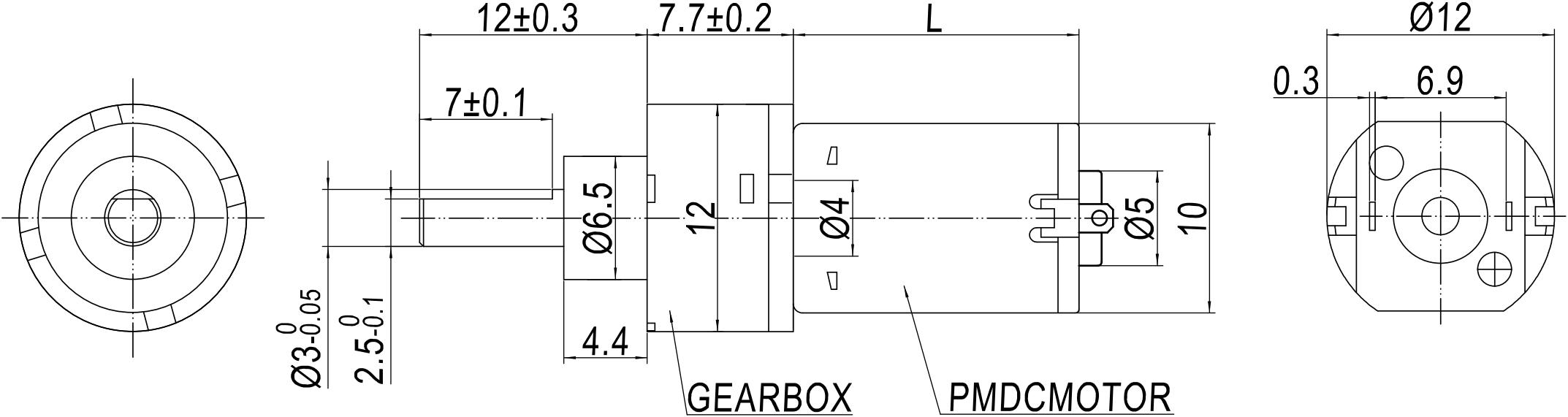

Product Feature 1

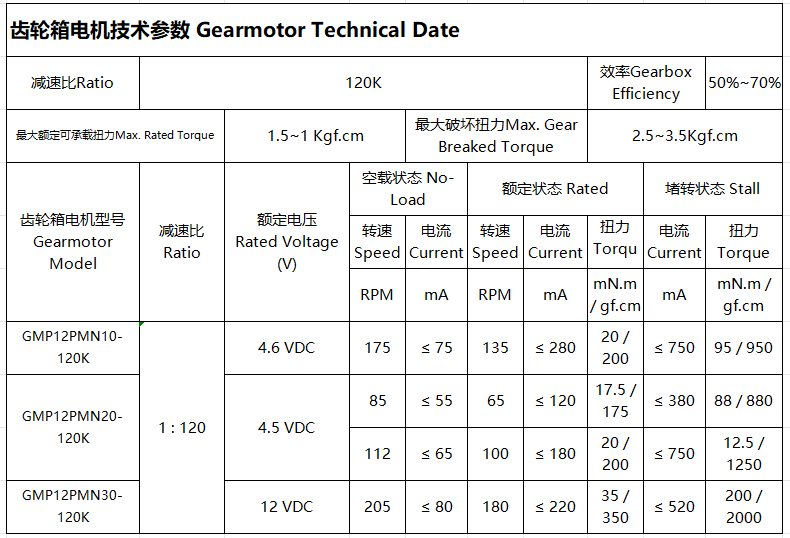

Product Feature 2
⚙️ Product Gallery & Applications
❓ Frequently Asked Questions
Q1:  Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q2:  What is the payment term for a new customer?
A: We can draw up an Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customers can also pay with PayPal or TT etc.
Q3:  I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
Q4:  Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5:  How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the motor, we use equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers for complete quality verification.
Q6:  Do you support OEM/ODM services?
A: Yes, we provide full support for customization of transmission dimensions and motor parameters to meet specific industrial needs.
