High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
1 / 5
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment
High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment

High Torque Low Rpm 12v 130rpm DC Planetary Gear Motor for Industrial Equipment

Send Inquiry

Product Description

VR Showcase
Product Display

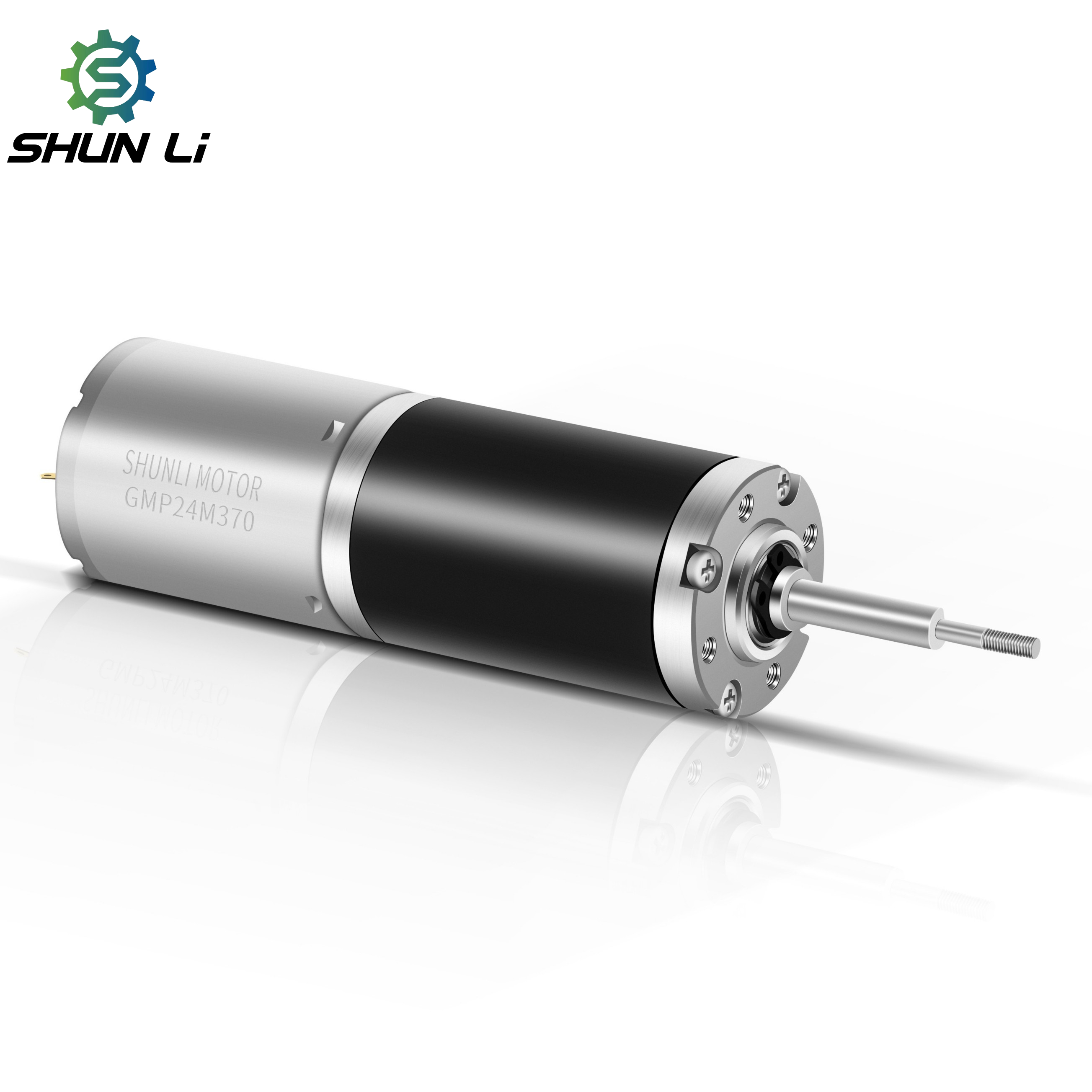

Product Feature
Technical Specifications
Product ModelGMP24M370
Gearbox Length19~48.6MM
Speed29RPM-46RPM
Voltage24V
Torque0.12 N.m/0.4 N.m
Support CustomizationThe Transmission Dimensions And Motor Parameters Can Be Customized

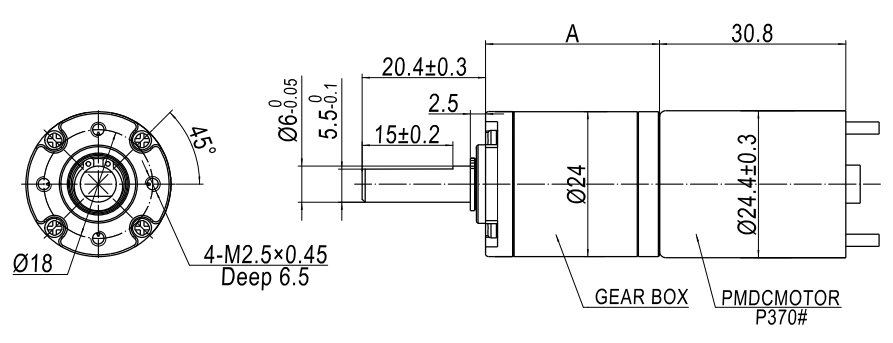

Technical Drawing 1

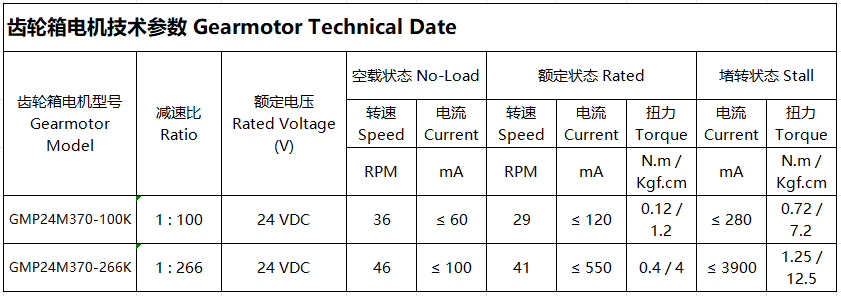

Technical Drawing 2
Product Gallery
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What are the payment terms for new customers?
We can process Ali Assurance Orders online (credit card/Visa), as well as payments via PayPal or TT.
3. Can you customize a motor if I can't find a suitable one?
Yes, we can customize a suitable motor including transmission dimensions and parameters according to your requirements.
4. Do you hold any product certifications?
Yes, we hold CE, FCC, ISO, and other relevant certificates. We can also apply for specific certificates upon request.
5. How do you manage quality control?
We utilize professional checking staff and advanced machinery such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers throughout the process.
6. Are the motor parameters adjustable?
Yes, both the physical transmission dimensions and the internal motor parameters are fully customizable to meet specific application needs.
