Home > Planetary Gear Motor > Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor

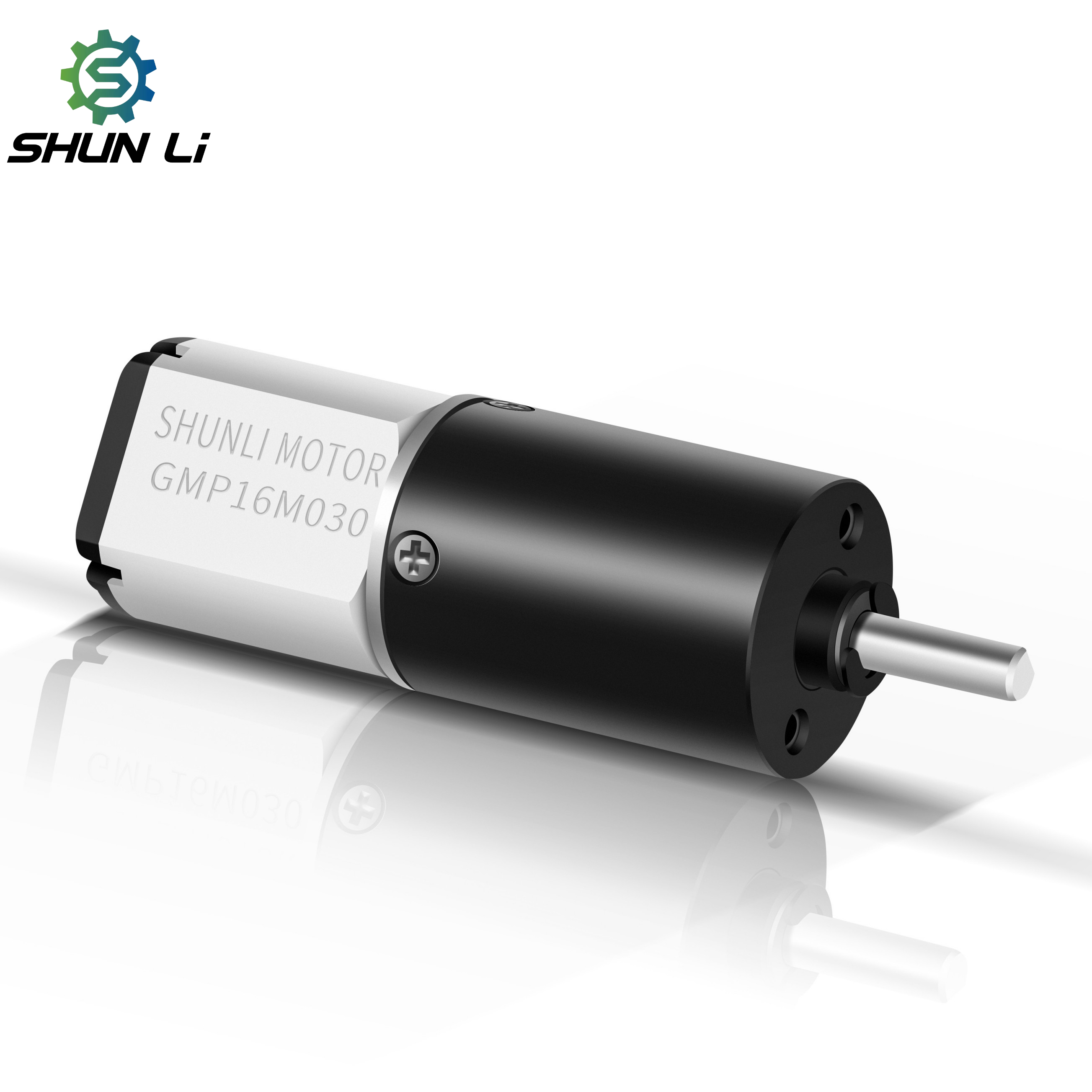

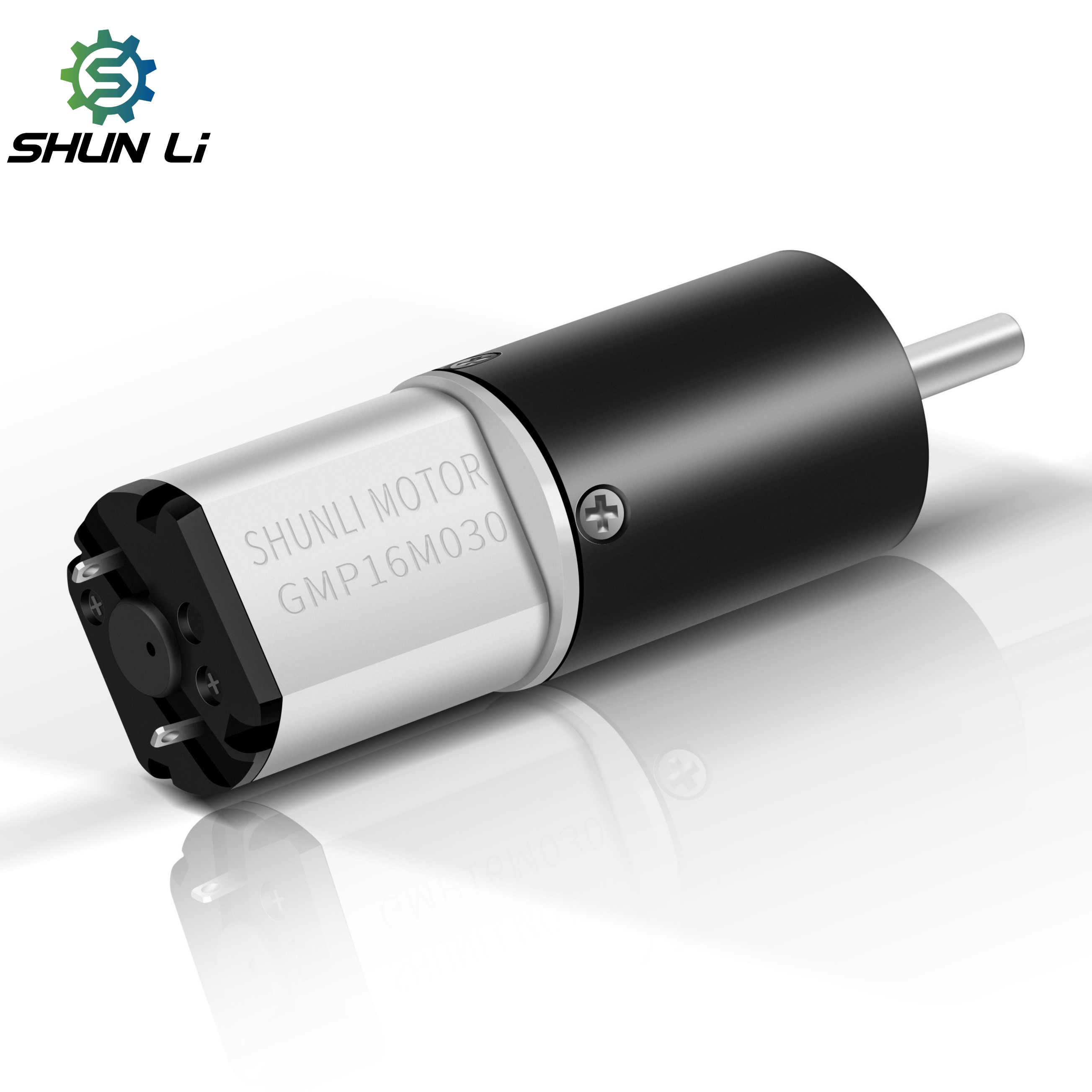

Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
1 / 4
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor
Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor

Cheap Micro High Torque 16mm 5v 6v 12v Dc Planetary Gear Reducer Electric Motor

Send Inquiry

Product Description

Product Presentation
Motor Details
Product Model GMP16M030/050
Gearbox Length 12.2MM~26.6MM
Speed 46RPM~92RPM
Voltage 3.7V
Torque 0.035 N.m~0.12 N.m
Support Customization Transmission Dimensions and Motor Parameters can be customized

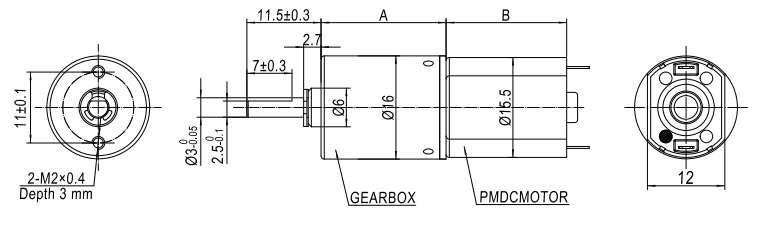

Technical Drawing 1

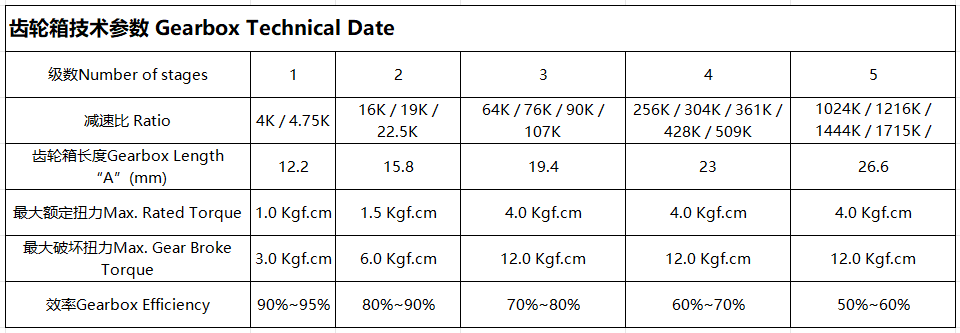

Technical Drawing 2

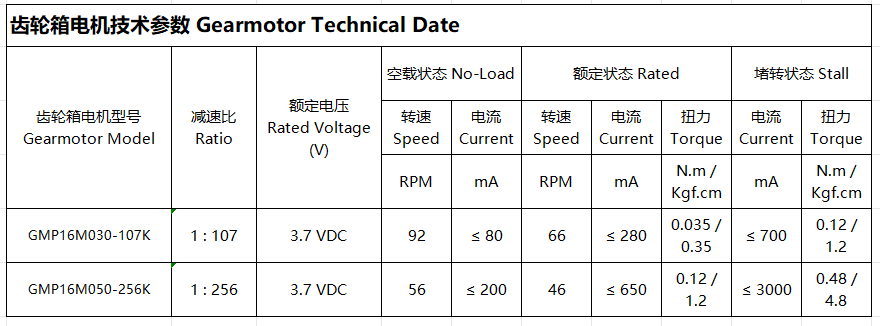

Performance Chart

Production & Factory Showcase

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What payment methods do you support?
We offer multiple payment options including online orders (Master Card, Visa), PayPal, and TT (Telegraphic Transfer).
Can you provide customized motor solutions?
Yes, if you cannot find a suitable motor on our website, we can customize parameters and dimensions according to your specific requirements.
What quality certifications do your motors have?
Our motors are certified with CE, FCC, ISO, and other standards. We can apply for additional certifications if required by your market.
How is your quality control process structured?
We have professional inspection staff on every production line. Final products undergo rigorous testing using hardness testers, 2.5D image testers, salt spray chambers, and life testers.
What testing equipment is used for product reliability?
We utilize advanced machinery including Temperature Test Machines, Noise Testers, and comprehensive quality analysis tools to ensure motor performance and durability.
