Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

1 / 5

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Send Inquiry

Product Description

Product Description

Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor

Product Details

Motor Customized Specification available upon request.

Reference Drawing

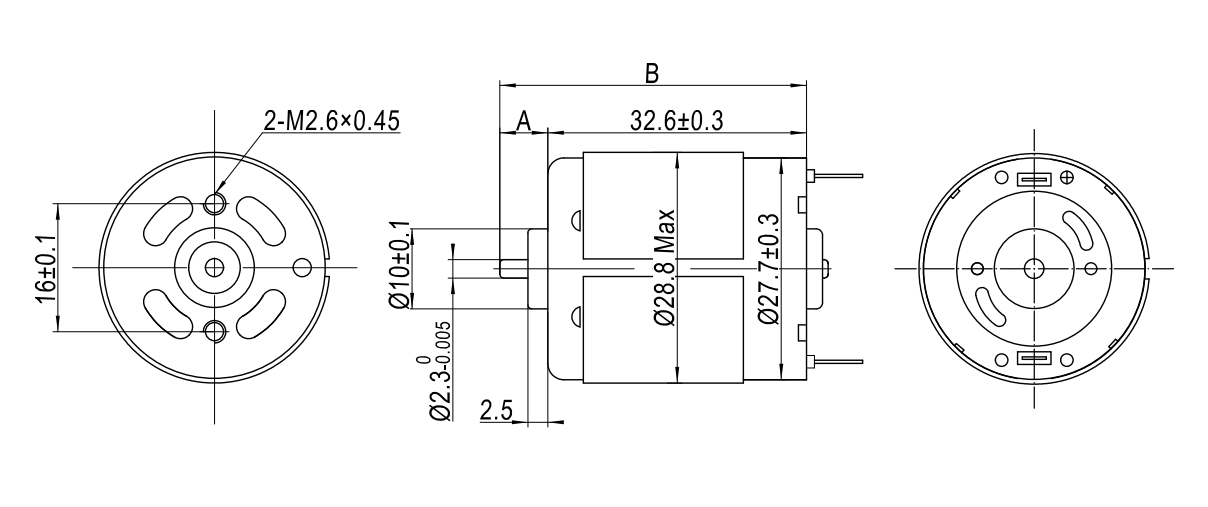

------ RS - 365 RS-365 Drawing

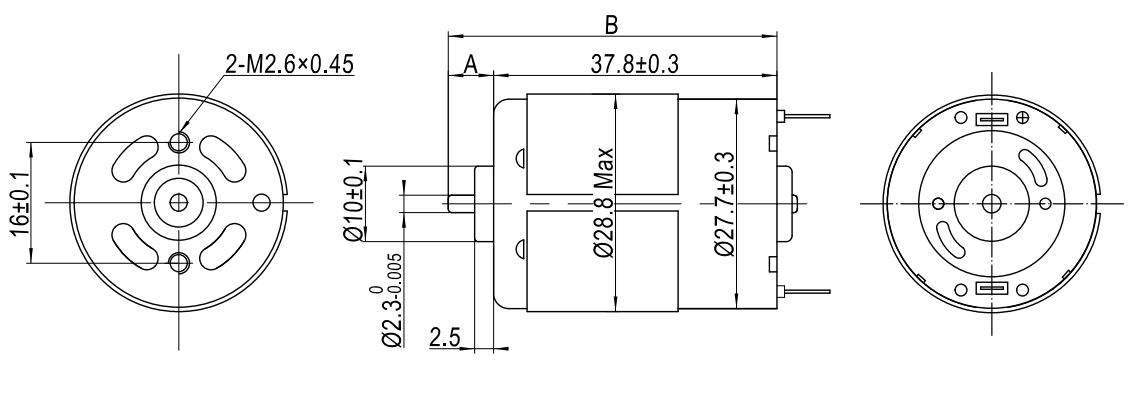

------ RS - 385 RS-385 Drawing

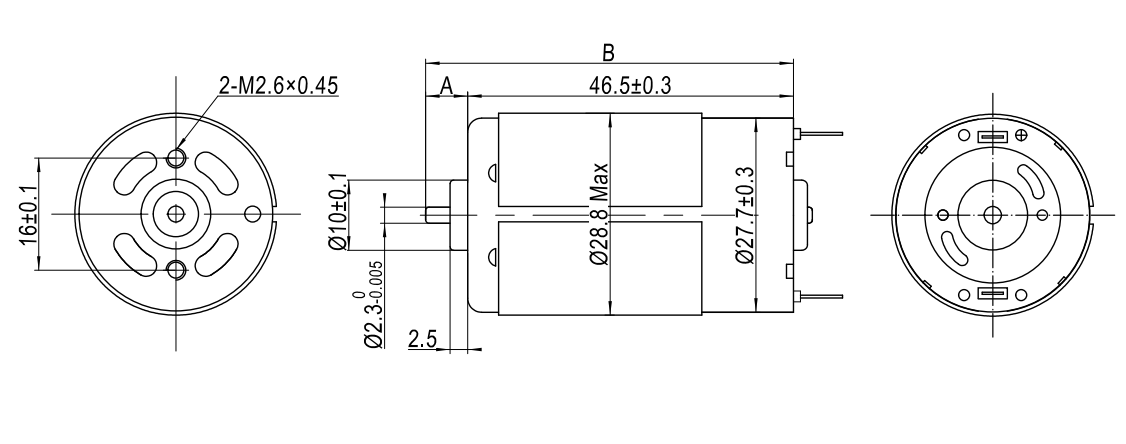

------ RS - 395 RS-395 Drawing

Note: The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Recommend Products

Frequently Asked Questions

What are the primary applications for the 390PH motor?

The 390PH DC motor is specifically designed for high-speed applications such as professional hair dryers and micro vacuum cleaners.

Can the technical specifications be customized?

Yes, we offer customization for shaft length, voltage range, and performance parameters to meet your specific project requirements.

What is the typical operating voltage for these motors?

Most models operate at 12VDC, but the operating range can span from 6.0V to 24.0V depending on the specific model and winding.

Does the motor support high-speed operation?

Absolutely. Certain configurations like the RS-390SH 2975 can reach up to 12,000 RPM at no-load.

How do I select the right motor model?

Refer to the Reference Datasheet for torque, current, and speed values. If you're unsure, feel free to share your device's power requirements for a recommendation.
