775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

1 / 5

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

📘 Product Description

775 DC Motor for Power Tools Low Price Motor 12V 24V DC Motor

📋 Product Details

Motor Customized Specification available upon request.

📐 Reference Drawing

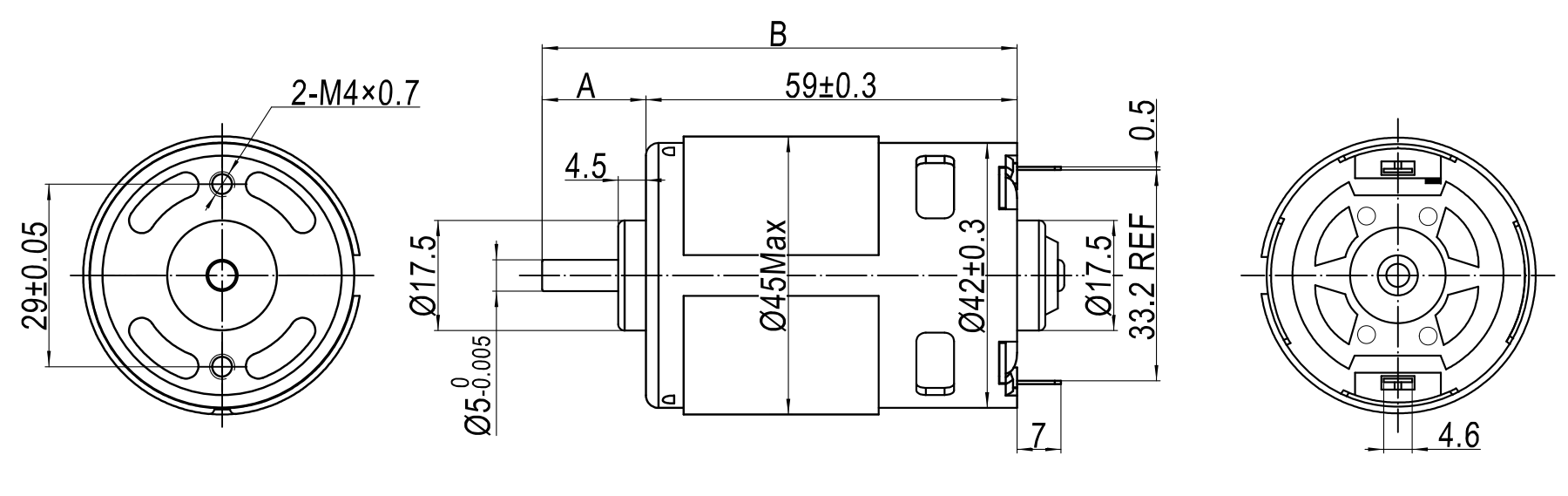

🔹 RS - 755 H

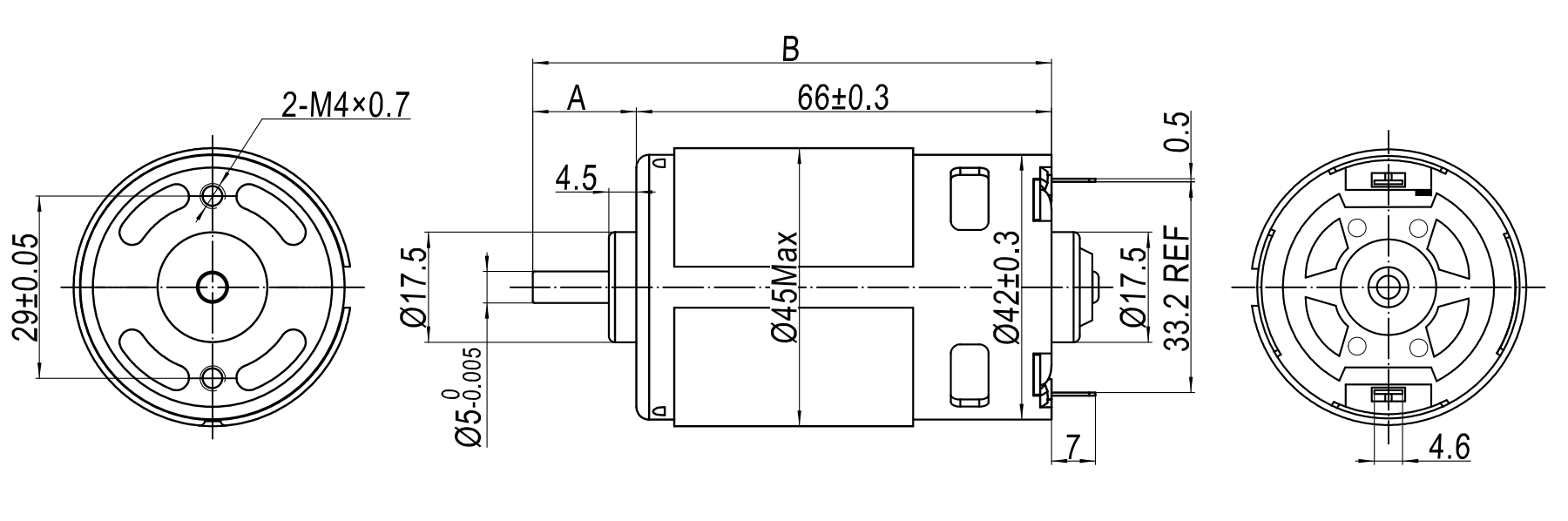

🔹 RS - 775 H

Notice: The length of shaft can be customized.

📊 Technical Data

Model	Rated Voltage (V)		No-Load		Rated				Stall
Model	Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81	111.8	115	666.9
RS-775H	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4	13.35	4.07	245.7

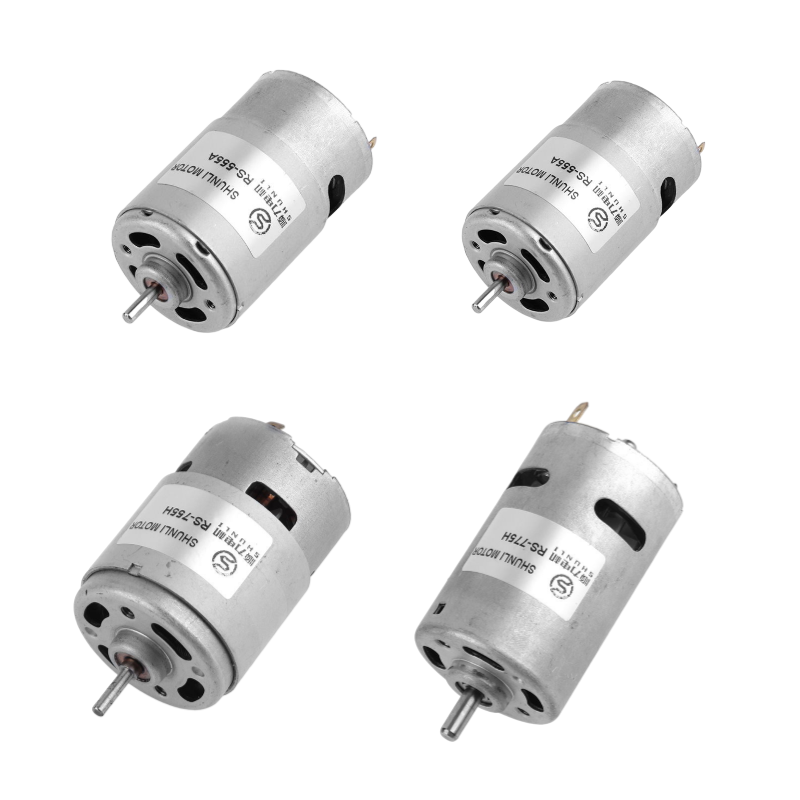

🖼️ Product Showcase

❓ Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

What are the payment terms for new customers?

We support multiple payment methods including online assurance orders (Master Card, Visa), PayPal, and TT.

Can you customize a motor if I can't find a suitable one on the website?

Yes, we can customize motors according to specific technical requirements and dimensions.

Do you have certificates for your motors?

Yes, we hold CE, FCC, ISO, and other relevant certificates. We can apply for additional certifications if required.

How do you ensure quality control?

We use professional checking staff at every process and utilize advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life/Noise testers.

Is the motor shaft length adjustable?

Yes, the length of the shaft is fully customizable to fit your specific power tool or application needs.
