Home > DC Gear Motor > 90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
1 / 5
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor

Send Inquiry

Product Description

Product Header

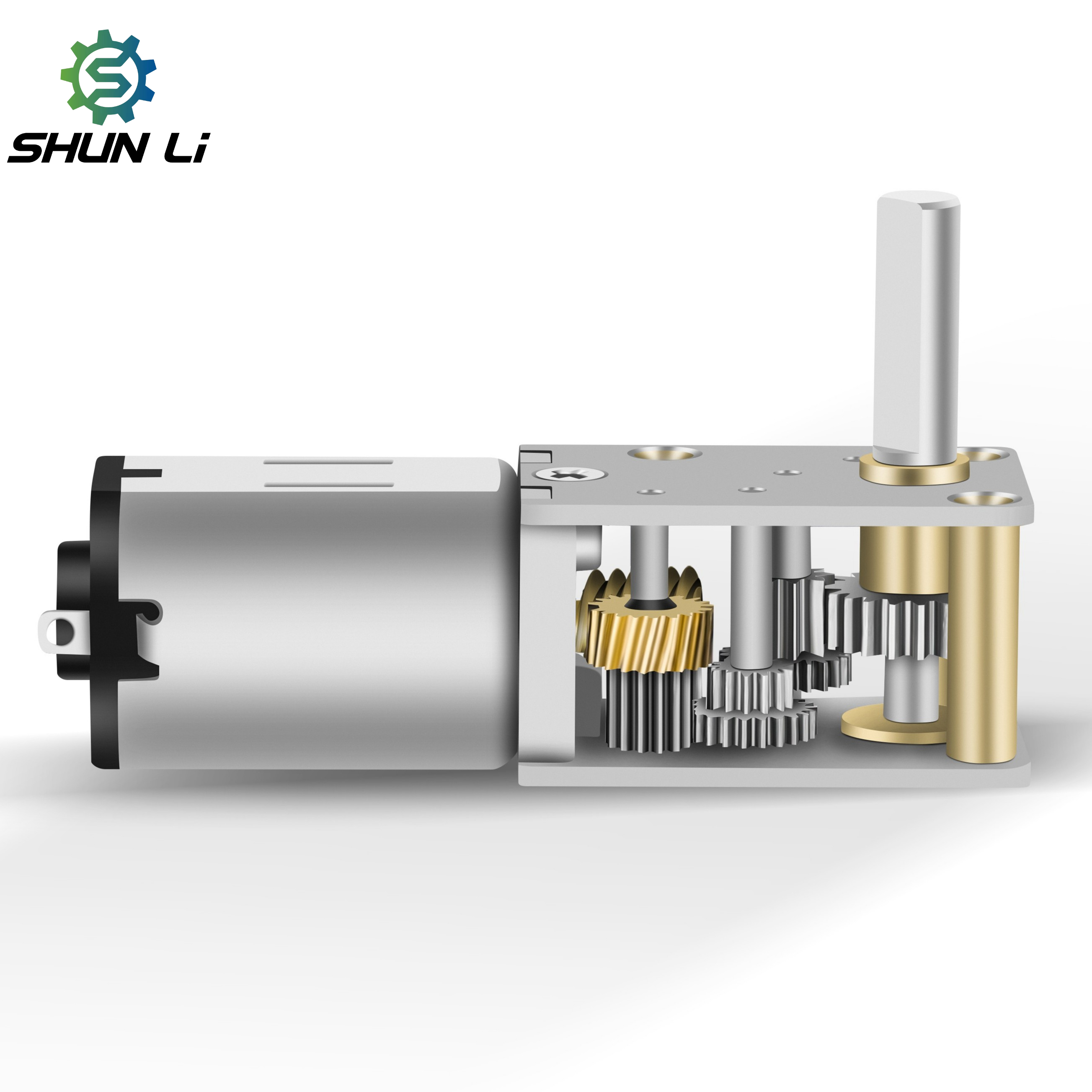

Motor Details
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed 22RPM-145RPM
Voltage 4.5V~12V
Rated Torque 8 mN.m/120 mN.m
Customization ✓Dimensions and parameters can be customized

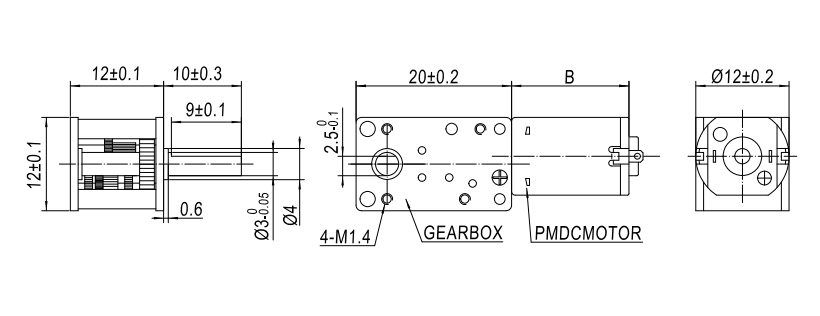

Technical Drawing

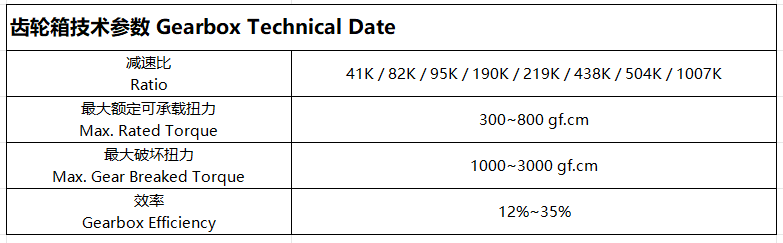

Performance Chart

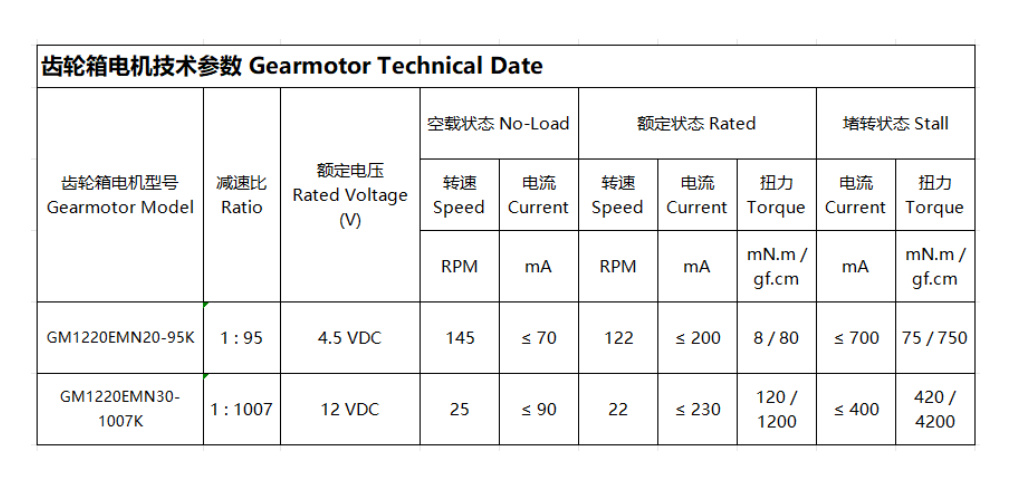

Application View
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
?Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
?What are the payment terms for new customers?
We offer multiple payment options including online assurance orders (Master Card, Visa, etc.), PayPal, and TT for our customers' convenience.
?Can you customize a motor if I can't find a suitable one on the website?
Yes, we can fully customize motors according to specific technical requirements and parameters.
?Do your motors have official certifications?
Yes, our motors are compliant with CE, FCC, and ISO standards. We can also apply for other specific certificates if required.
?How do you ensure quality control during production?
We employ professional inspection staff at every stage. Our testing facility includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers to ensure full quality compliance.
?What is the typical lead time for customized orders?
Lead times vary based on the level of customization required; we strive to provide the most efficient production schedule for our clients.
