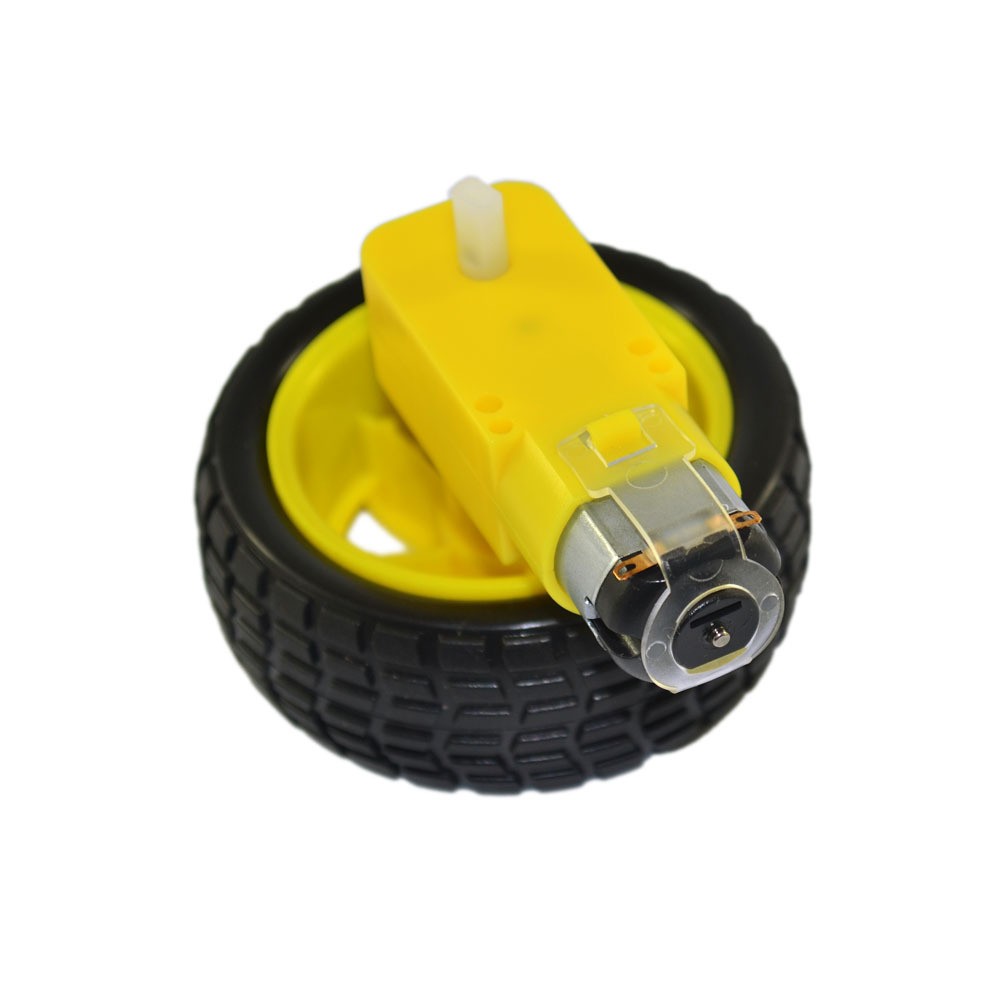

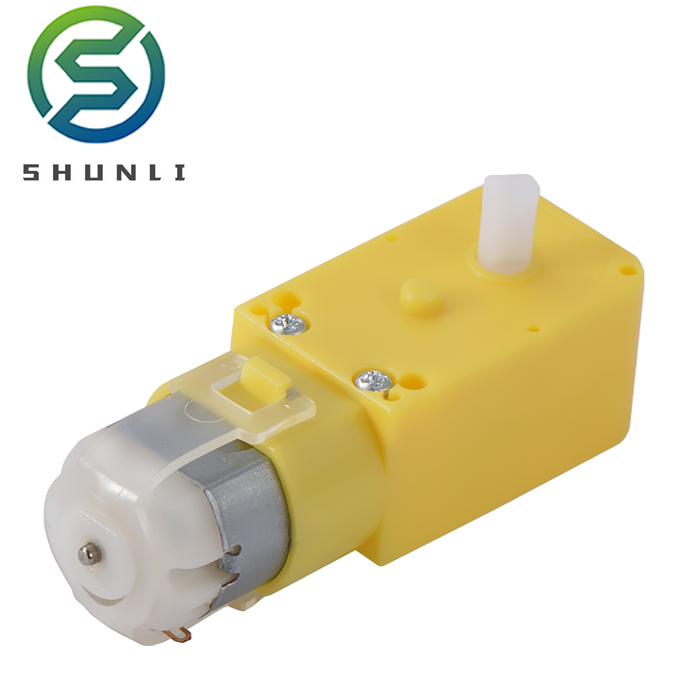

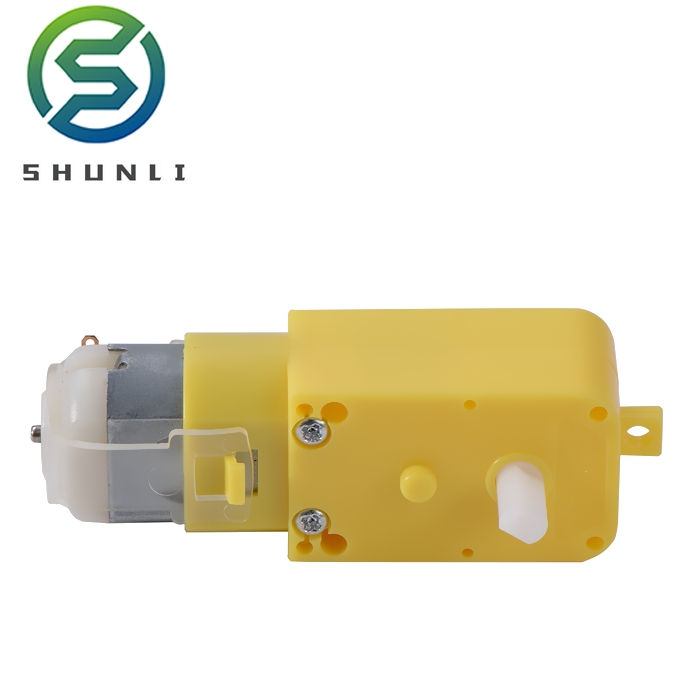

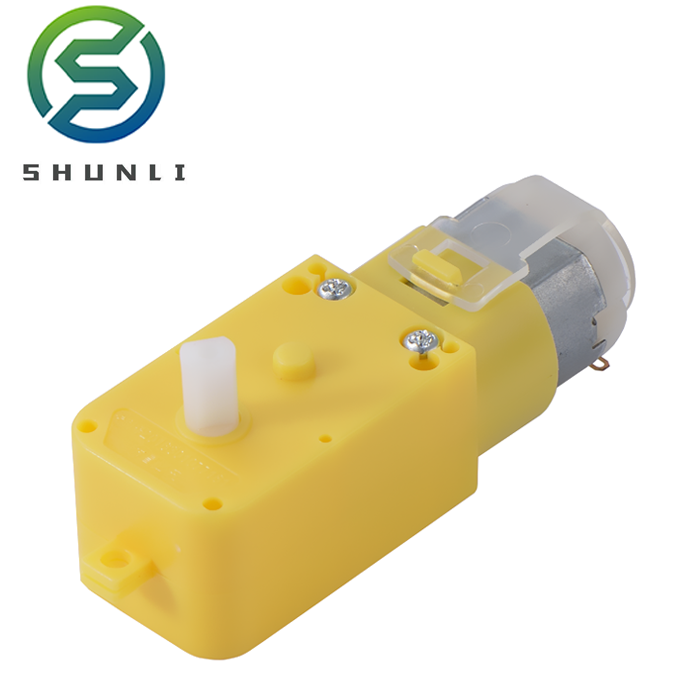

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1 / 5
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot

Send Inquiry

Product Description

Mini DC Gear Motor
⚙️
High Performance: Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

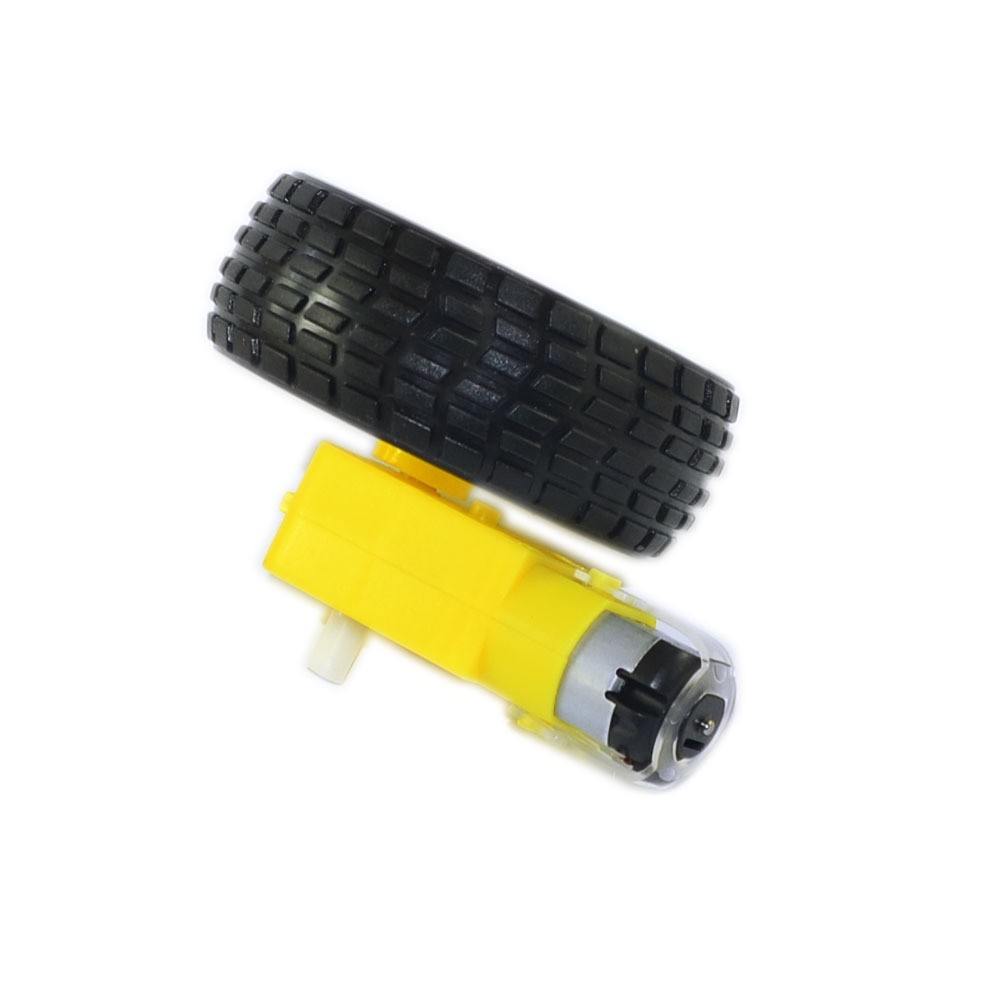

Motor Component 1 Motor Component 2 Motor Component 3
📊 Technical Specifications & Characters
Model Voltage No-load Load Stall
Working Voltage (V) Rated Speed Current Speed Current Torque Power Stall Torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15

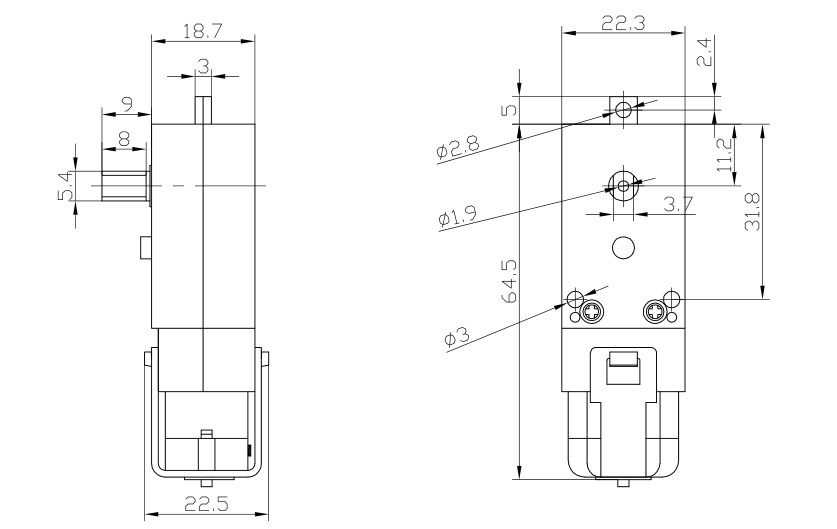

Dimensional Drawing
Production View 1 Production View 2 Production View 3
Detail View 1 Detail View 2
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years, ensuring direct quality control and competitive pricing.
What payment terms do you offer for new customers?
For new customers, we support Ali Assurance Orders for secure online payments via Master Card or Visa. We also accept PayPal and TT (Telegraphic Transfer).
Can you customize a motor if I cannot find a suitable one on your website?
Yes, we provide full customization services. We can design and manufacture a suitable motor based on your specific technical requirements and applications.
Do your motors carry any certifications?
Yes, our motors are certified with CE, FCC, and ISO. If your market requires other specific certificates, we can apply for them as needed.
How do you manage quality control for your products?
We have professional inspectors at every stage of the production line. Final products undergo rigorous testing using equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What applications are these mini gear motors suitable for?
These reduction plastic gearbox motors are ideally designed for toys, toy cars, and robotics, providing efficient torque in a compact form factor.
