Modulox Drive
Modulox Drive

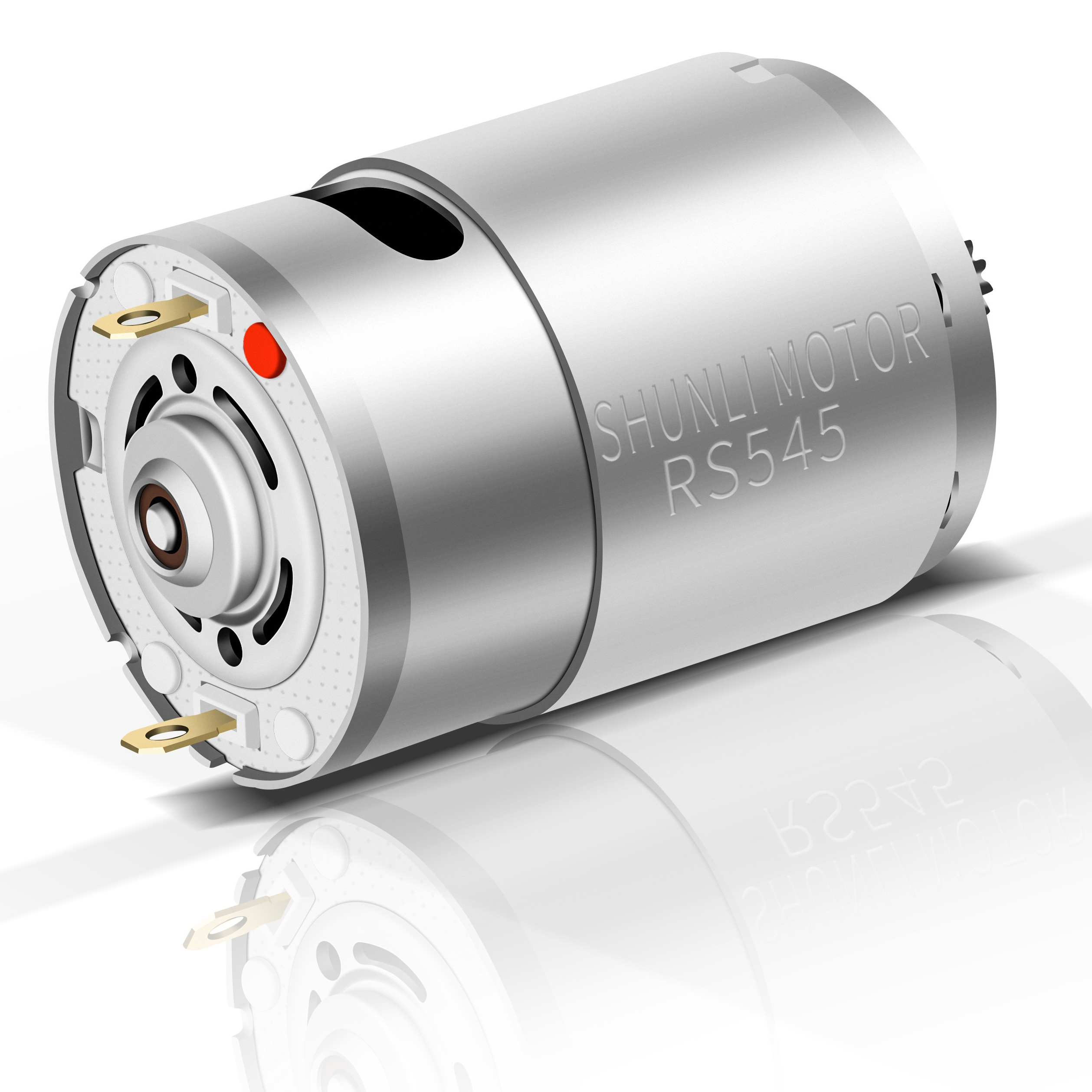

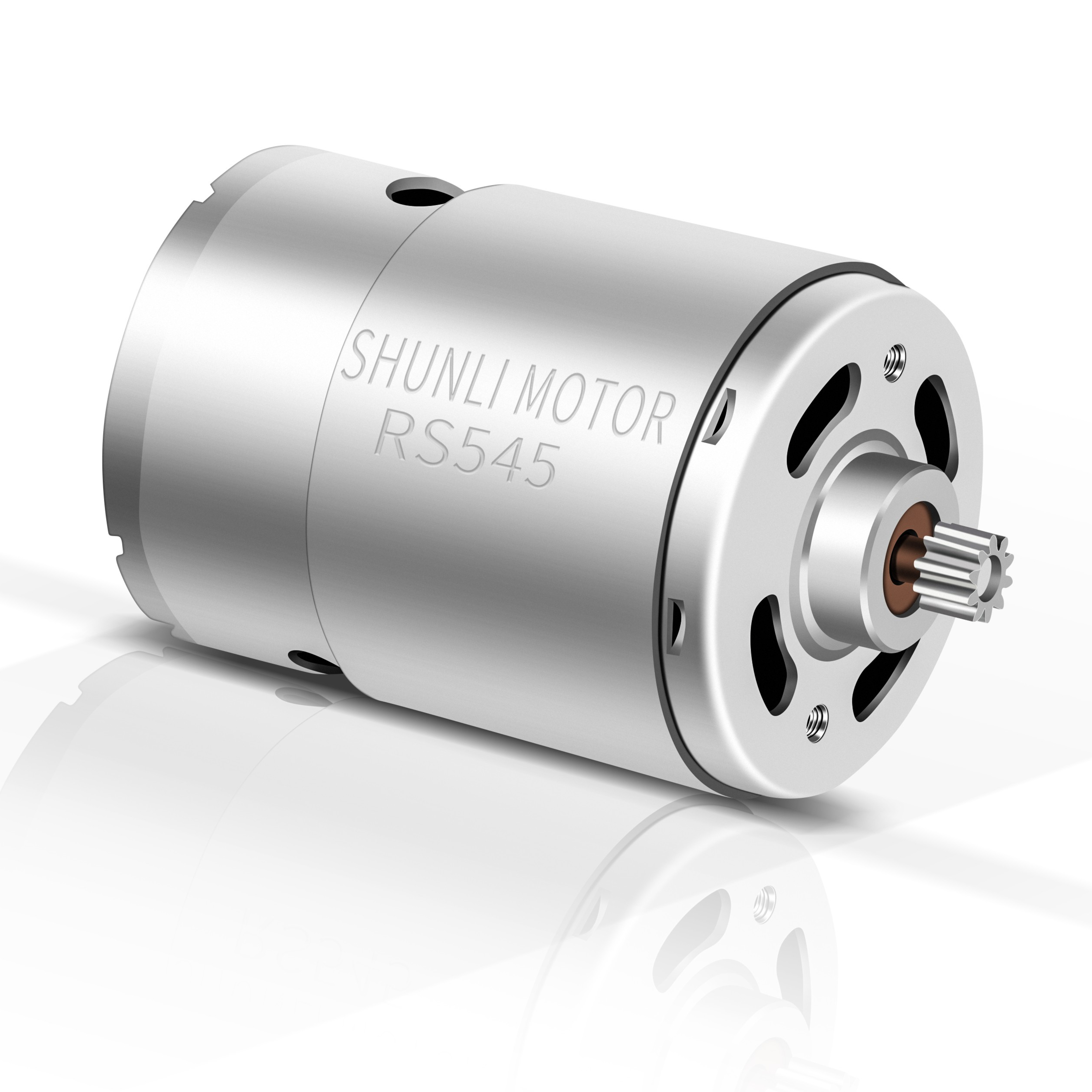

The RS 550, 545, and 555 series are high-performance permanent magnet DC motors designed for high-speed applications reaching up to 30,000 RPM. These motors are engineered for durability and efficiency across various industrial and consumer applications.
Our motors can be tailored to meet specific voltage, speed, and torque requirements for your unique projects.
| Model | Rated Voltage(V) | No-Load | Rated | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Series | Type | Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) |
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 | 10.6 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 | 40.36 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 | 15.35 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 | 12.09 | |
