Product Description

Product Banner
⚙️ Technical Specifications

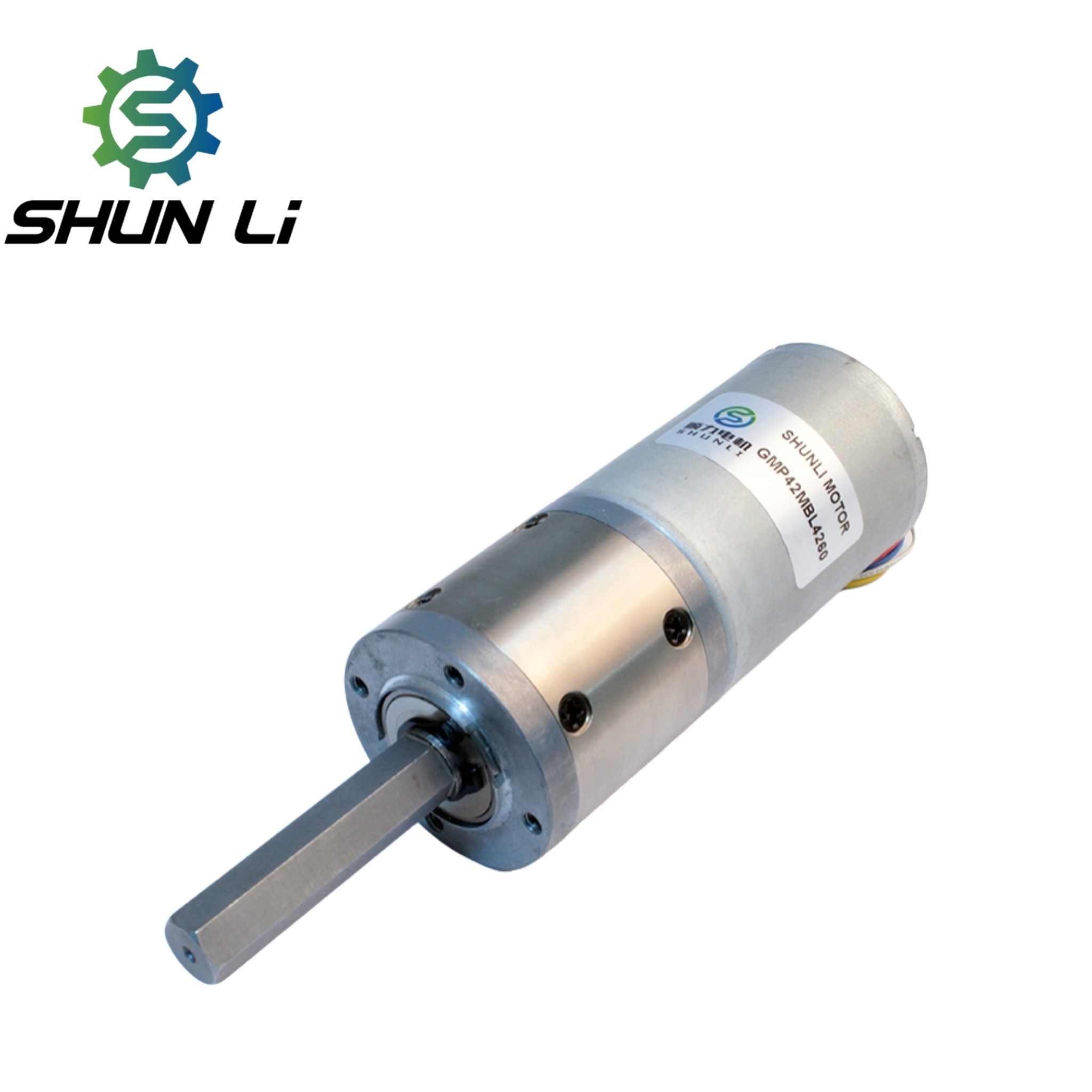

DC Motor Detail
Product Model GMP42MBL4260
Gearbox Length 33.5~67.5mm
Speed 8RPM-135RPM
Voltage 12V/24V
Torque 2.5 N.m / 6.0 N.m
Customization Transmission dimensions and motor parameters can be customized
📊 Dimensions & Performance

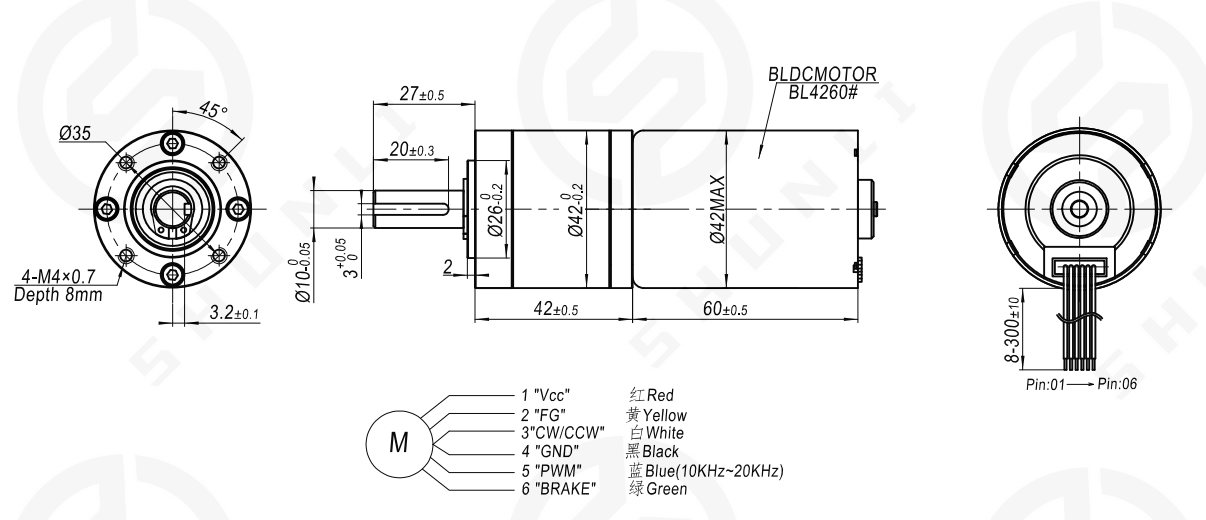

Technical Drawing 1

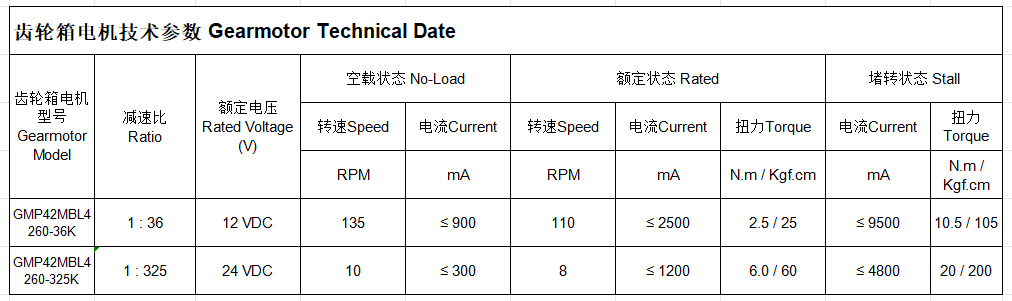

Technical Drawing 2
📷 Product Showcase

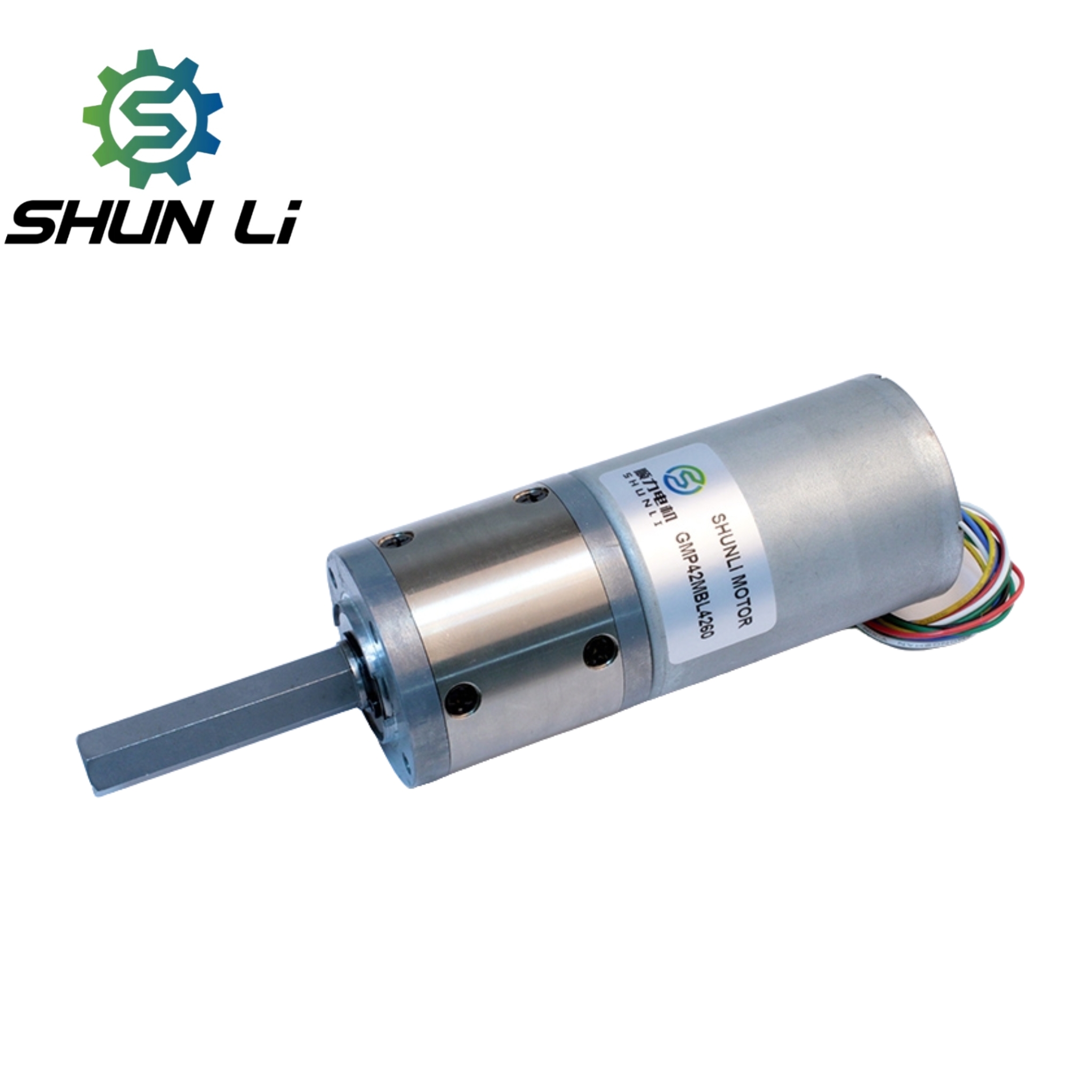

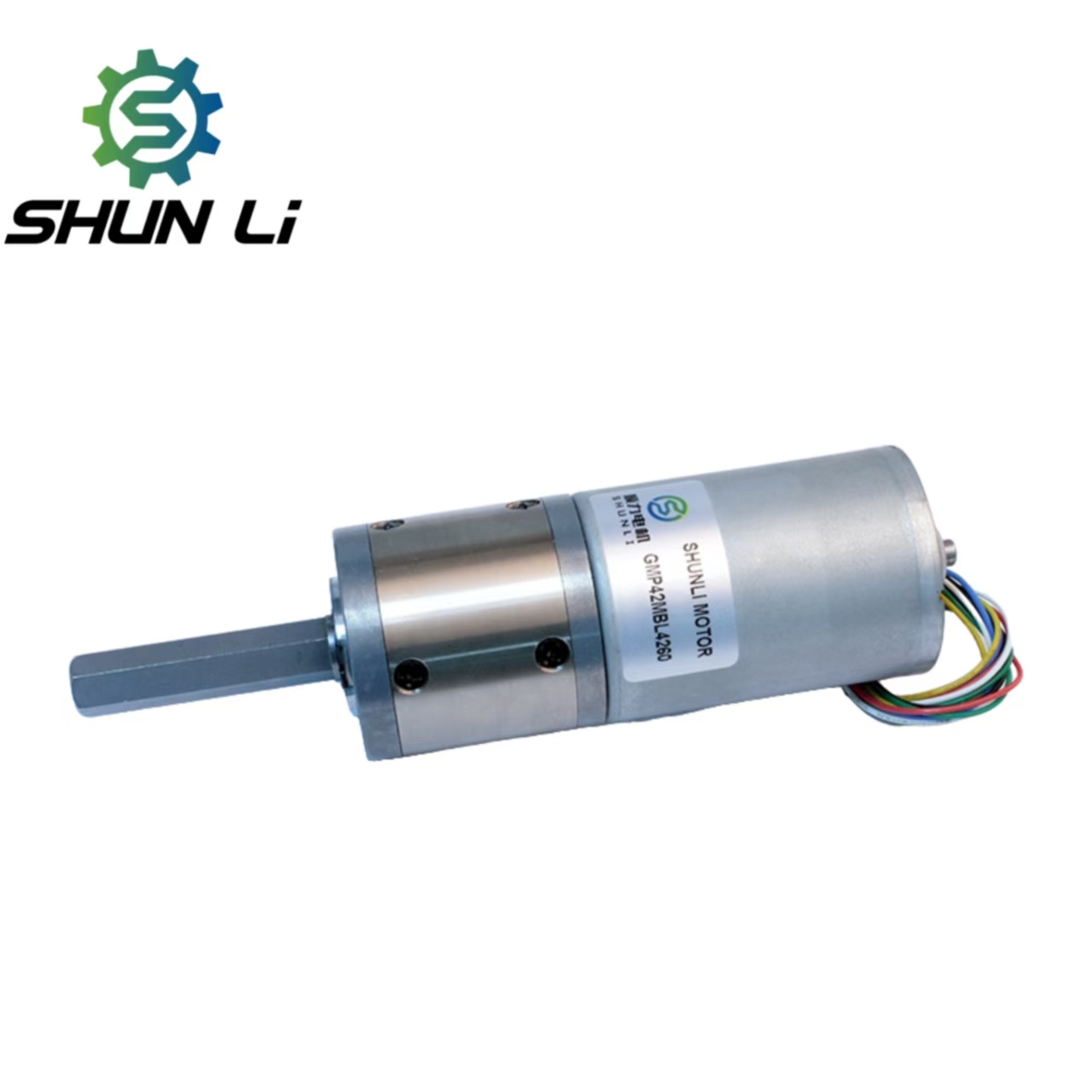

Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of experience.
What is the payment term for a new customer?
We can process Ali Assurance Orders online, allowing payment via Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize a motor if I can't find a suitable one on your website?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, and other certifications. We can apply for additional certificates if required.
How do you handle Quality Control?
We have professional inspectors on every production line. Finished motors undergo testing with Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What information is needed for a customization request?
Please provide basic specifications such as voltage, speed, torque, and dimension constraints for the gearbox and motor.
