China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
1 / 5
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Send Inquiry

Product Description

Product Overview
Product Image
Specifications
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Support Customization Transmission Dimensions And Motor Parameters Can Be Customized
Technical Diagrams & Performance Charts

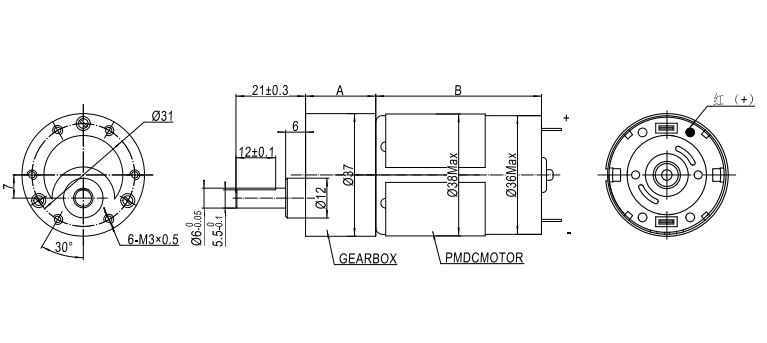

Technical Drawing 1

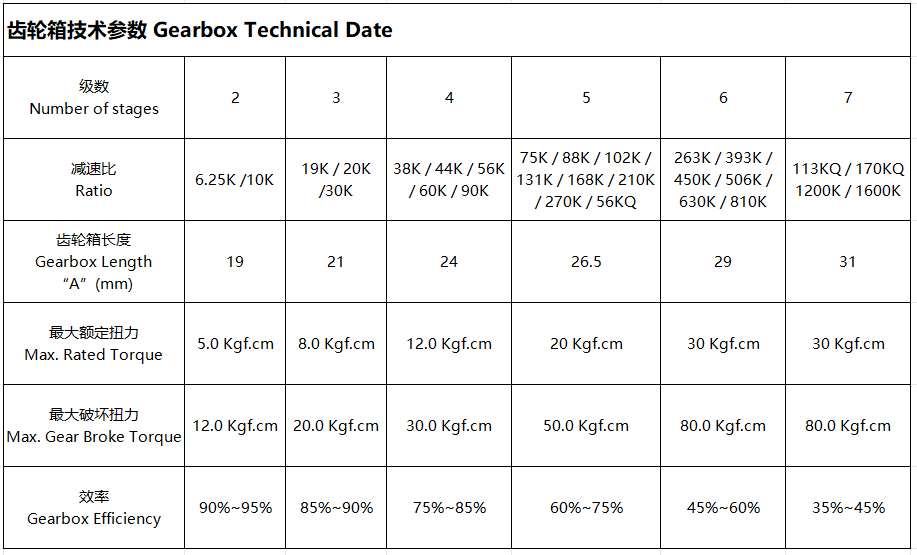

Performance Curve

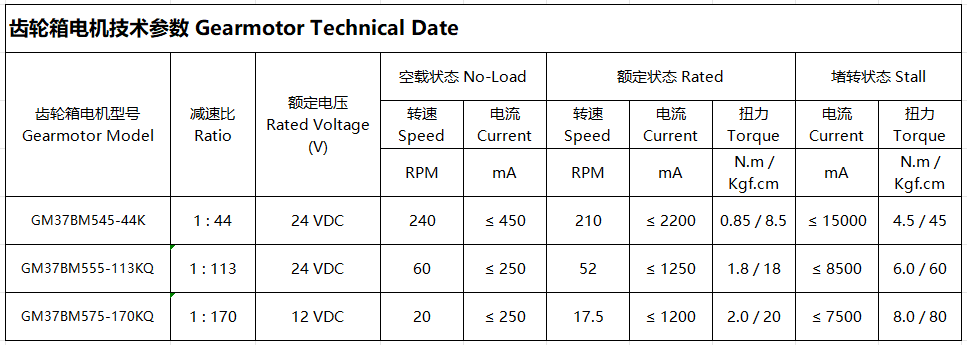

Technical Drawing 2
Product Gallery
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We offer secure online payment options including Credit Cards (Visa, Master Card), PayPal, and TT transfers to ensure a smooth transaction for new clients.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we provide full customization services to modify motor parameters and transmission dimensions according to your specific requirements.
Do you hold quality certifications for your motors?
Yes, our products are certified with CE, FCC, and ISO. We can also apply for other specific certifications if required by your region.
How do you ensure quality control during production?
We utilize professional inspection staff on every production line and perform comprehensive testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers.
What is the typical lead time for customized orders?
Lead times vary based on customization complexity, but we aim for efficiency while maintaining strict quality standards throughout the manufacturing process.
