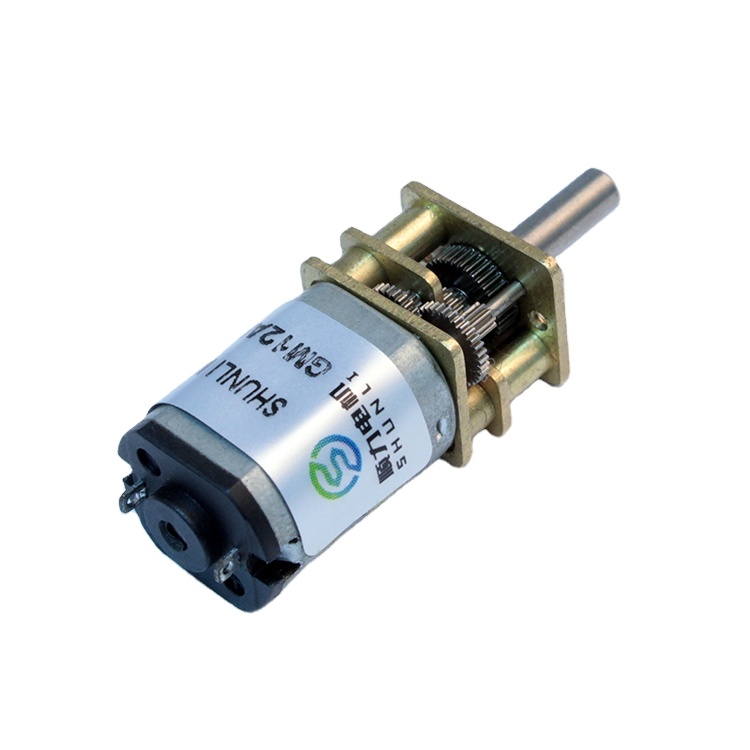

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

⚙️ Product Description

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

💡

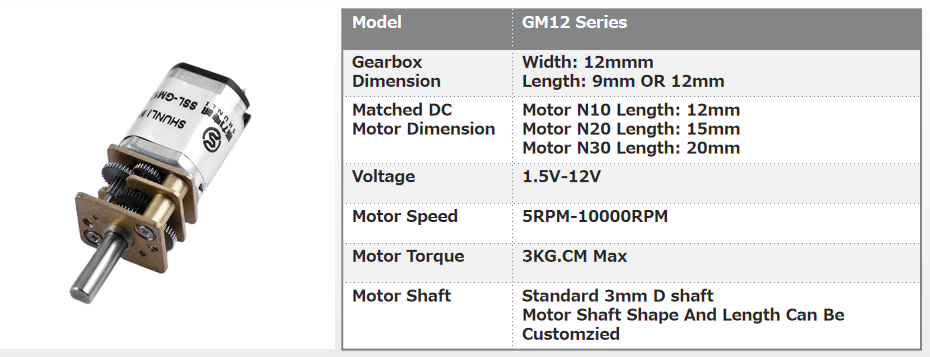

Product Details
High-precision 12mm DC gear motor designed for smart home applications and precision instruments.

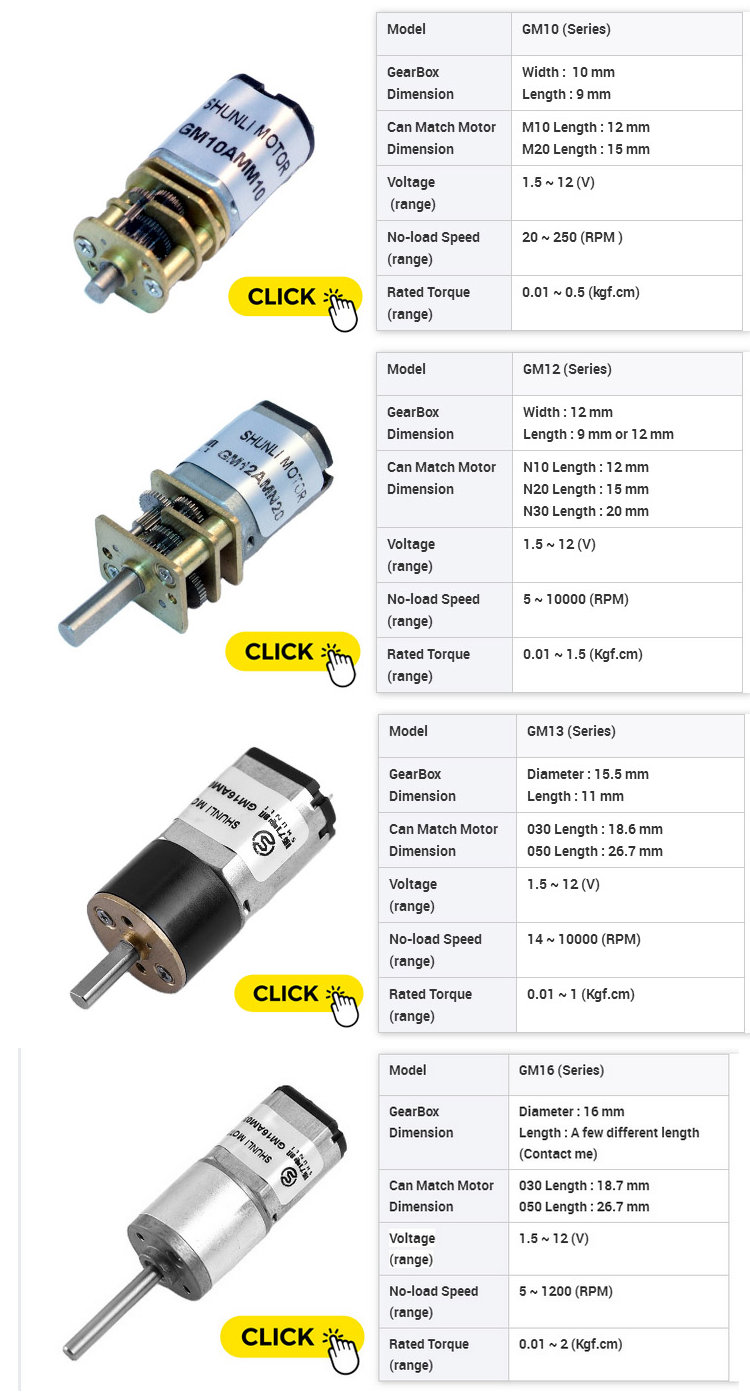

Motor Customized Specification available upon request.

📏 Reference Drawing

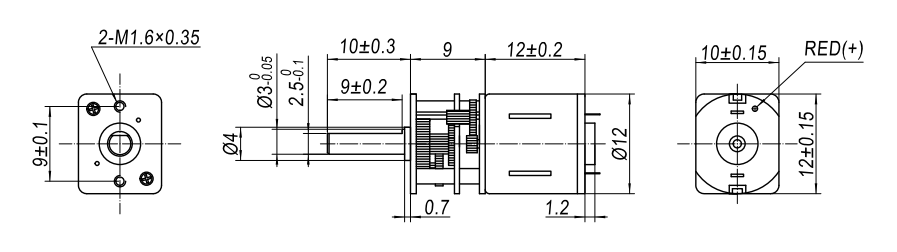

Model: GM12AMN10

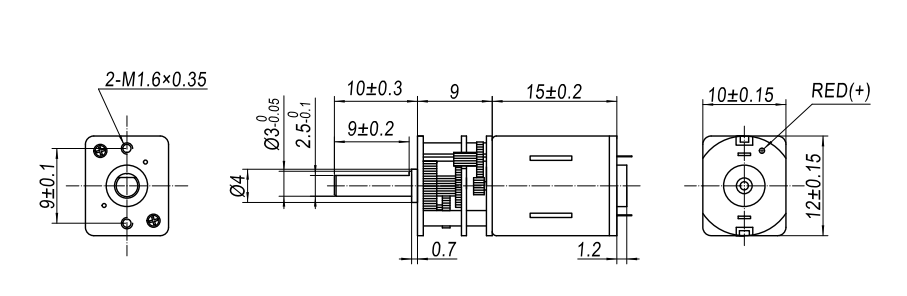

Model: GM12AMN20

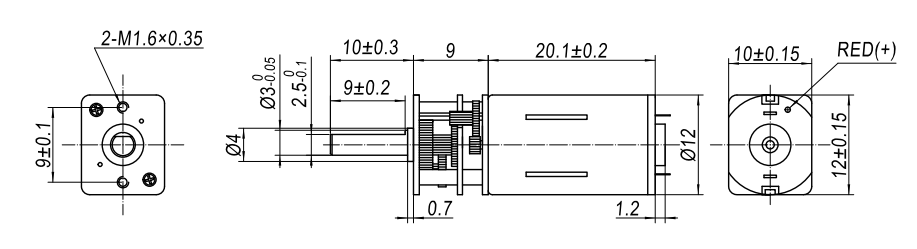

Model: GM12AMN30

📊 Technical Specifications

Gearmotor Model	Ratio	Rated Voltage (V)	No-Load		Rated			Stall
Gearmotor Model	Ratio	Rated Voltage (V)	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m)	Current (mA)	Torque (mN.m)
GM12AMN10-298K	1:298	4.5~6VDC	70	≤ 80	55	≤ 285	5.5	≤ 700	210
GM12AMN20-150K	1:150		92	≤ 55	80	≤ 140	2.8	≤ 700	120
GM12AMN30-10K	1:10		2500	≤ 60	2200	≤ 195	4.0	≤ 400	26

⚙️ Gearbox Technical Data

Number of stages	2	4	5	7
Gearbox Length "L" (mm)	9.0	9.0	9.0	12.1
Max. Rated Torque	200 gf.cm	600 gf.cm	1000 gf.cm	1500 gf.cm
Efficiency	80%~90%	65%~70%	55%~60%	45%~50%

🚀 Application & Quality

🏆 Why Choose Us

🏭

Manufacturing Excellence
We are a factory specialized in motor production for more than 14 years. With a professional R&D team and mature management, we ensure a premium experience.

✅

Quality Control
Every step from material receipt to shipment is carefully checked. Quality is the foundation of our development.

🌟 Our Services

✔️ High Credibility: We are a gold seller with an established reputation.

✔️ Timely Delivery: 100% on-time delivery rate to ensure your project stays on schedule.

✔️ Fast Sampling: Standard samples within 2 weeks; customized samples within 3 weeks.

✔️ Quick Response: All inquiries and messages will be replied to within 2 hours.

❓ Frequently Asked Questions

1. Are you a trading company or a manufacturer? We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

2. Can you customize a motor for my specific application? Yes, we can customize motor specifications (voltage, speed, torque, shaft size) according to your specific requirements.

3. What certificates do your motors have? Our products are certified with CE, FCC, ISO, and other relevant industry standards to ensure global compliance.

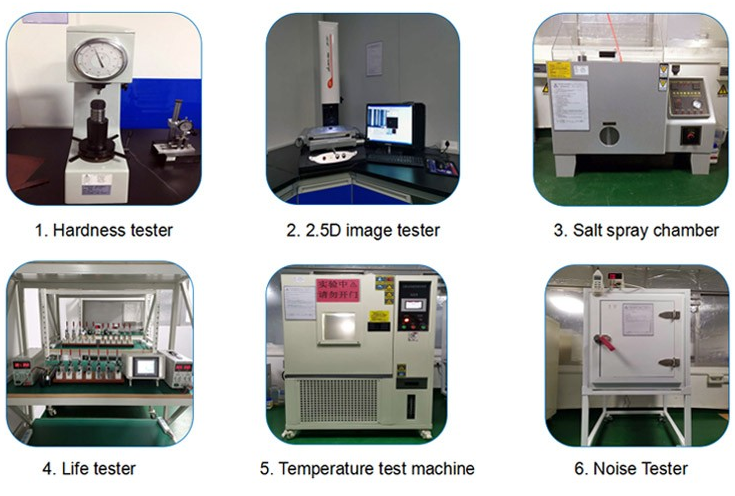

4. How do you handle quality control? We utilize professional inspection equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers at every production stage.

5. What is the typical lead time for samples? Standard samples are generally produced within 2 weeks, while customized solutions take approximately 3 weeks.

6. Do you provide technical support? Yes, our R&D team and experienced engineers provide comprehensive technical support for your motor selection and application integration.
