Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

Product Main View
Technical Specifications

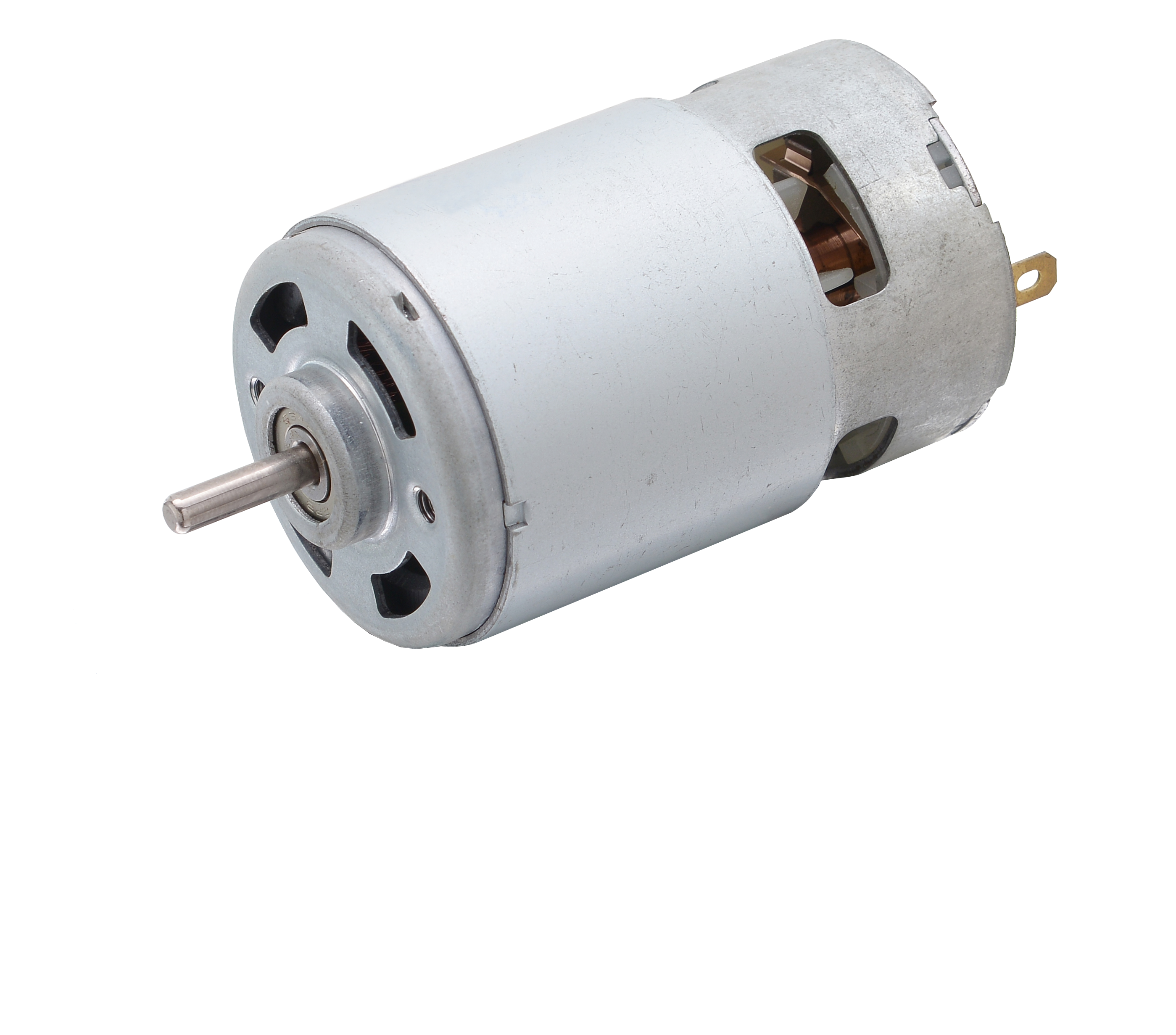

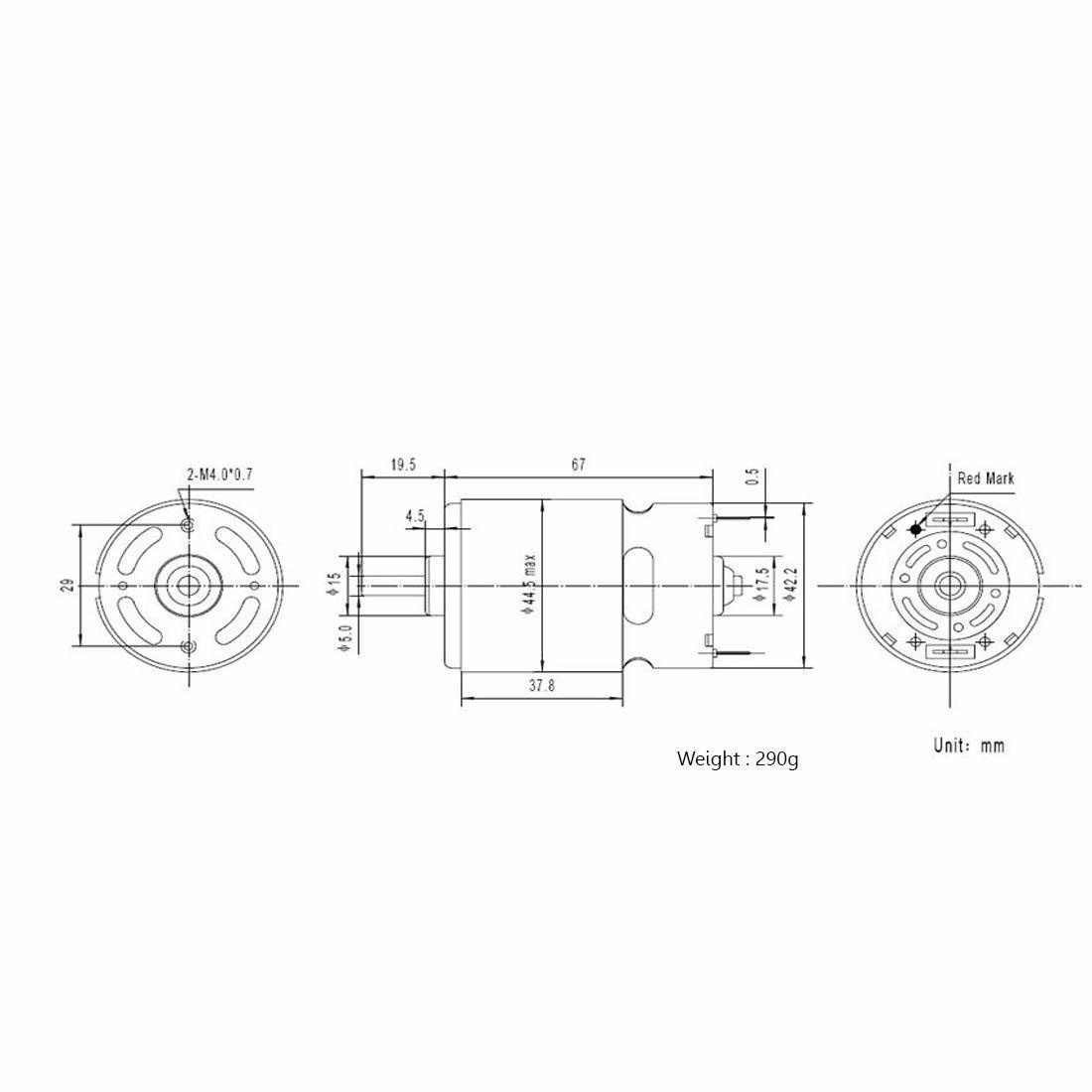

Motor Dimensions
Product Model 7 Series
Motor Diameter 7 Series: 42.3 mm (With protecting magnetic ring: 45 mm)
Motor Length 755 motor: 59mm
775 motor: 66mm
Motor Voltage 7.2-48VDC
Motor Speed 3000-20000RPM
Motor Shaft Standard 5mm D shaft (Shape and length can be customized)
Product Features

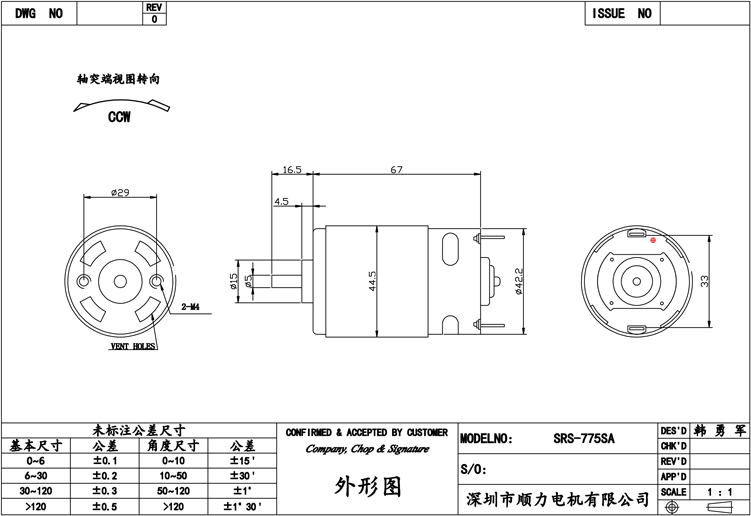

Motor Feature 1

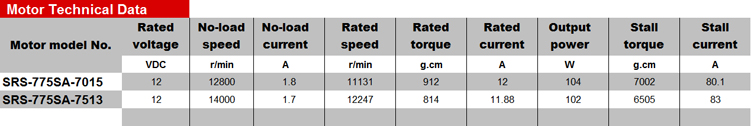

Motor Feature 2

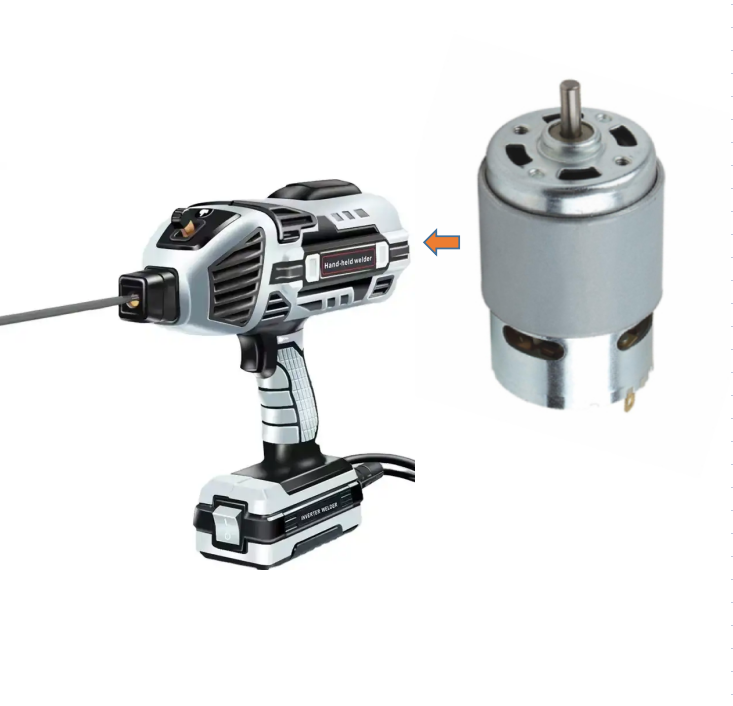

Product Application & Display
Display 1 Display 2 Display 3 Display 4 Display 5 Display 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
2. What are the payment terms for new customers?
We support multiple payment methods including online assurance orders (MasterCard, Visa), PayPal, and TT transfers.
3. Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize motors according to your specific requirements, including shaft shape, length, and performance parameters.
4. What certificates do your motors have?
Our products are certified with CE, FCC, ISO, and other relevant industry standards. We can apply for additional certifications if required.
5. How do you ensure product quality?
We utilize professional quality control staff and advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
6. Do you support OEM/ODM services?
Yes, with our 14 years of manufacturing experience, we provide full OEM and ODM services to meet diverse industrial and consumer needs.
