Product Description

Product Display
Technical View
Product Specifications
Product Model GMP36M545/555/575
Gearbox Length 26MM~54MM
Speed 11.5 RPM-250RPM
Voltage 24V/24V/12V
Torque 2.5 N.m/0.45 N.m/3.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

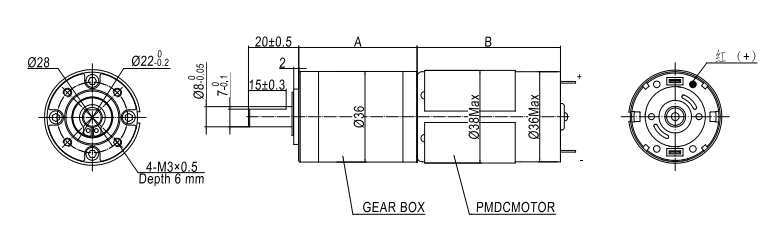

Technical Drawings & Dimensions

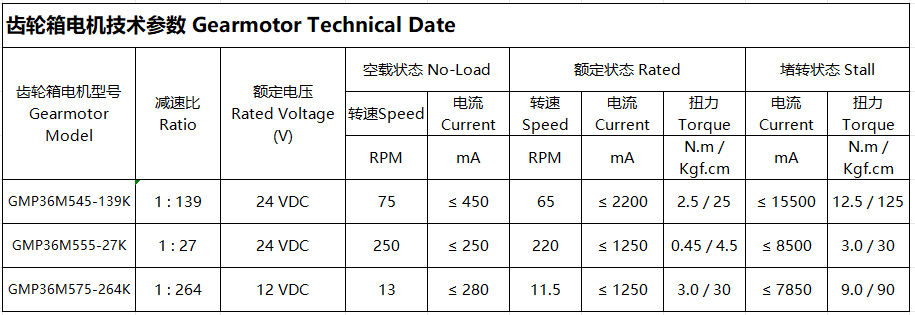

Drawing Performance Curve
Product Showcase
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We can process orders via Online Assurance, which supports Master Card, Visa, etc. We also accept PayPal and TT payments.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize motor parameters and transmission dimensions according to our customer's specific requirements.
Do you hold certifications for your motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for other specific certificates if required.
How do you manage quality control?
We have professional inspection staff on every production line. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What testing equipment is used for quality assurance?
Our quality lab is equipped with advanced machinery including Temperature Test Machines, Life Testers, Salt Spray Chambers, and specialized Noise testing equipment to ensure every motor meets standards.
