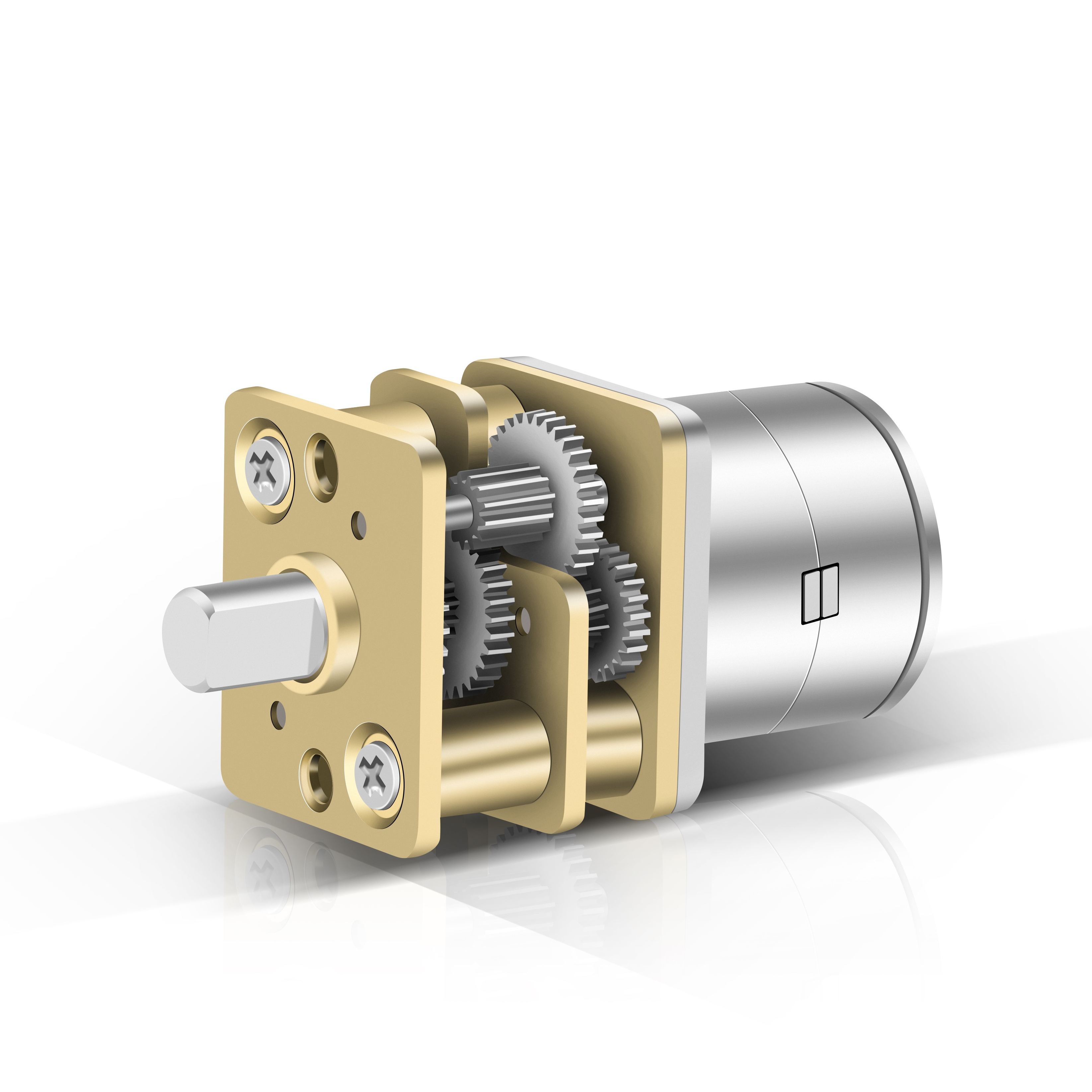

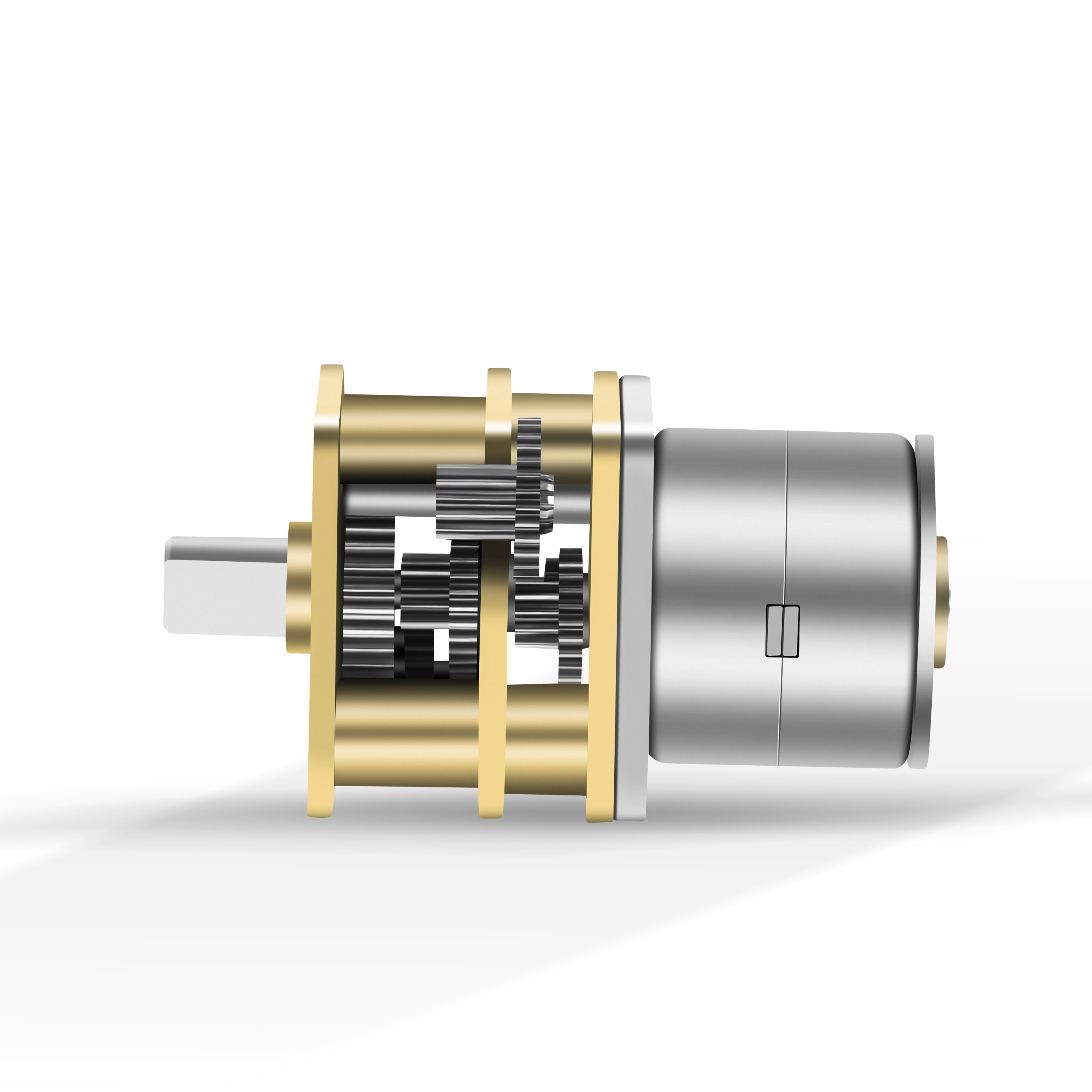

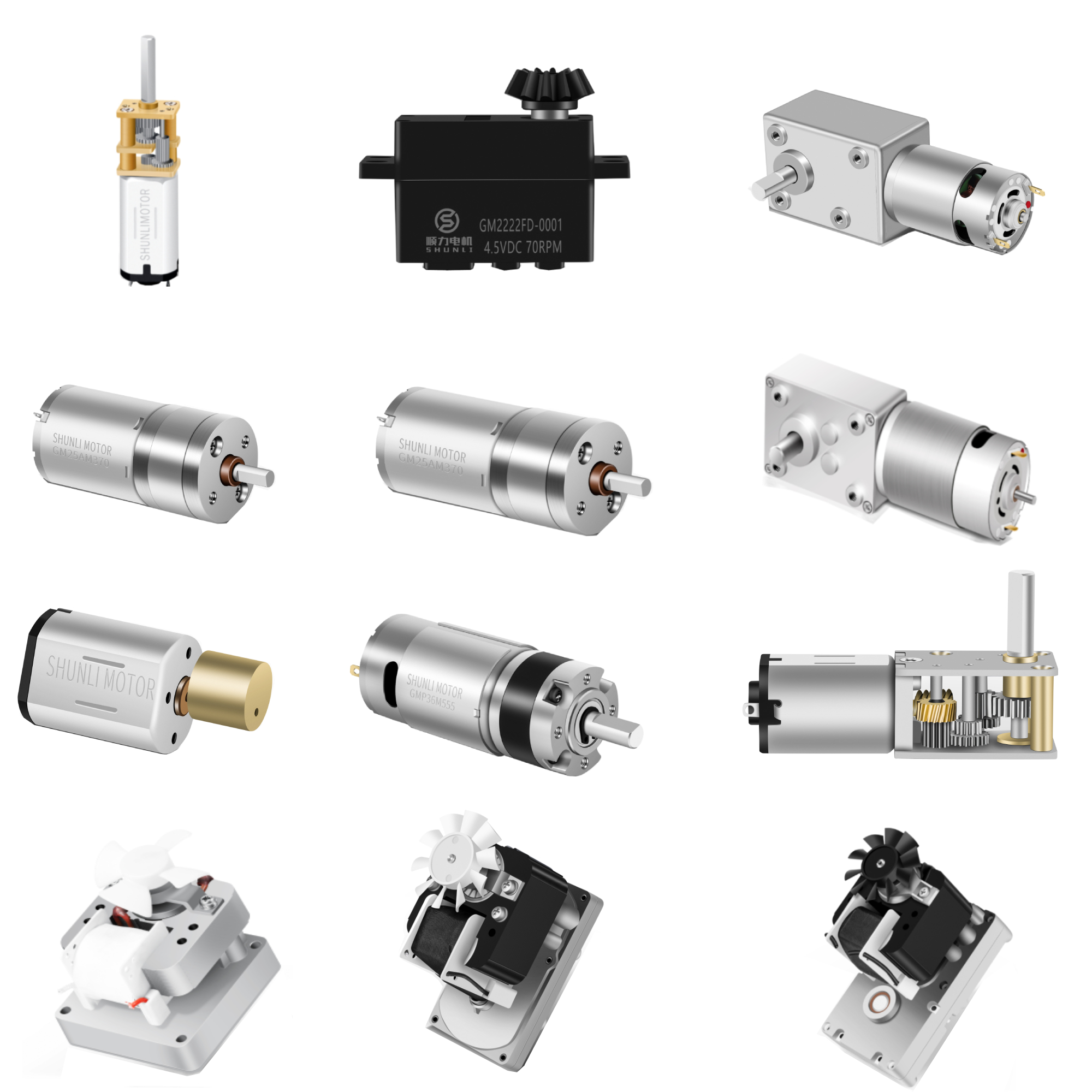

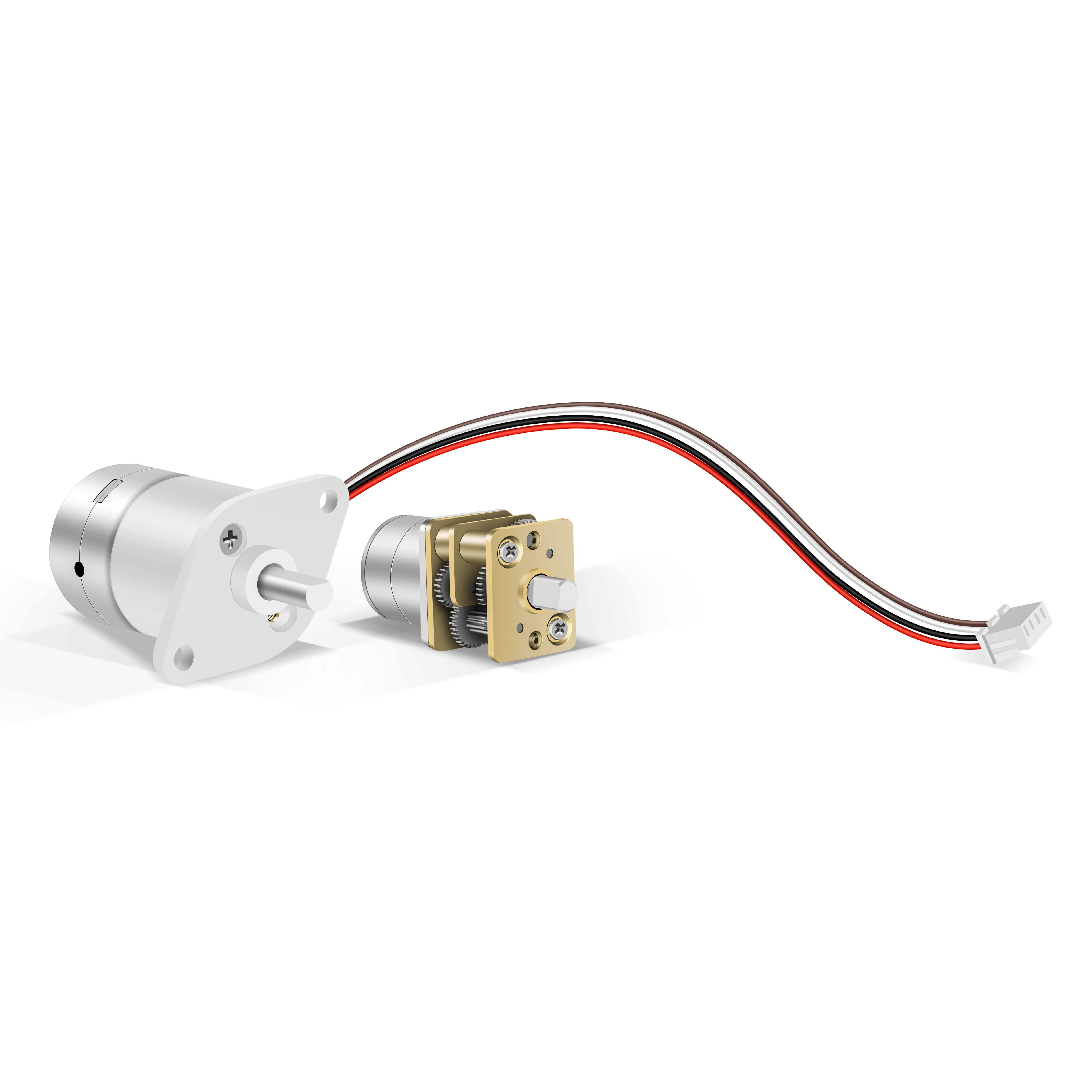

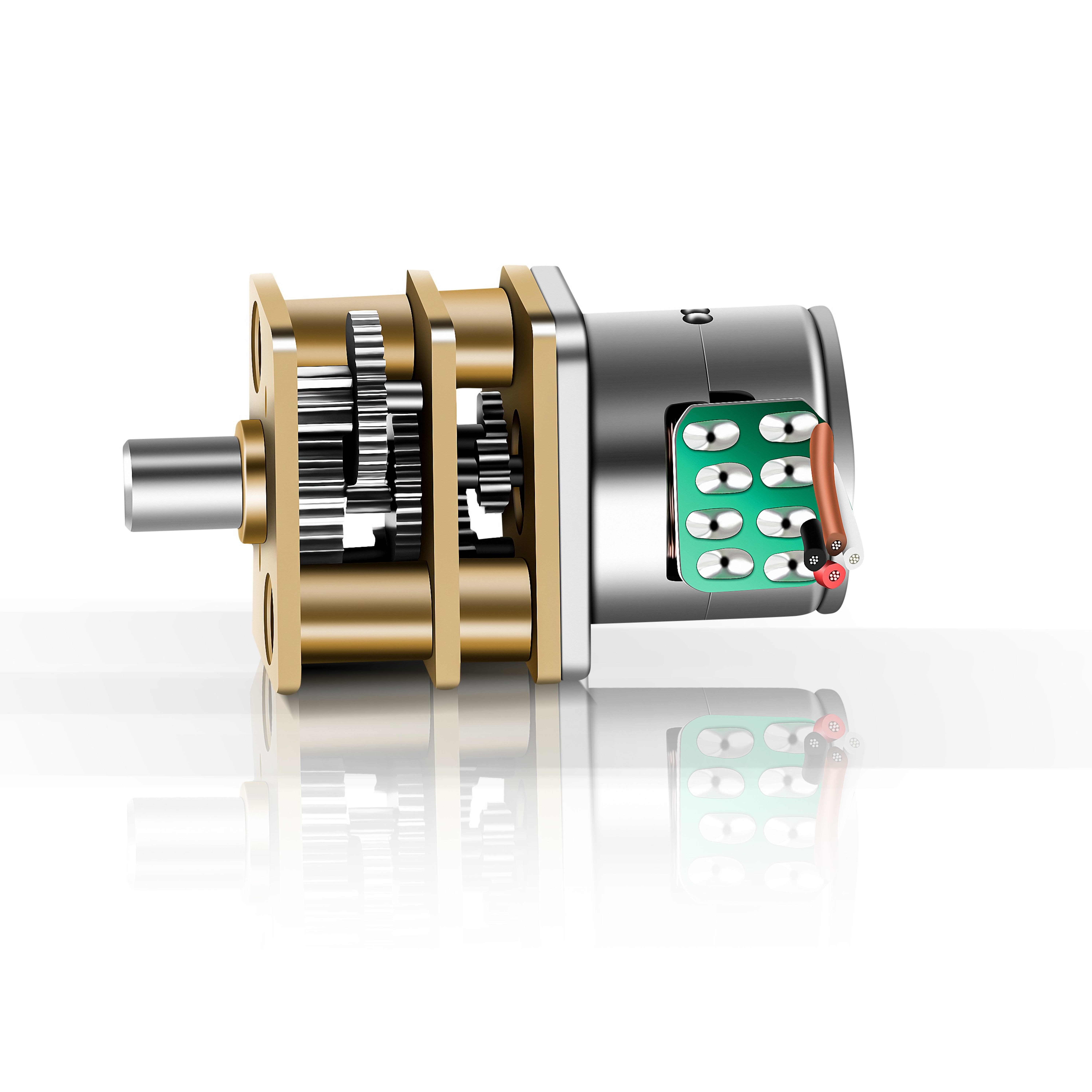

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Product Banner
Product Description
Customized 12mm micro dc gear motor, Non-captive stepper motor, miniature 5v stepper motor designed for medical equipment applications.

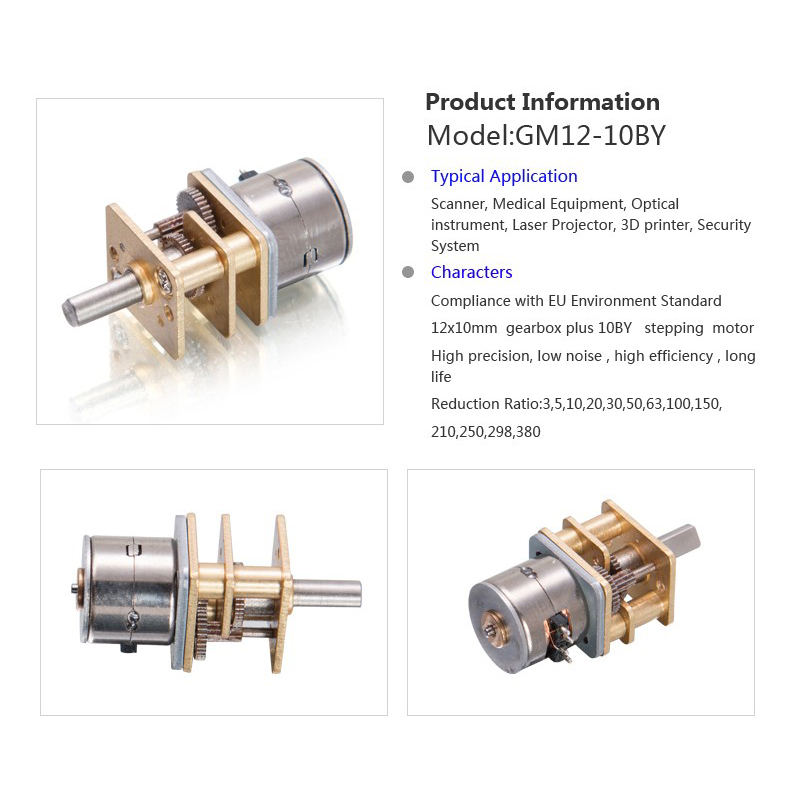

Micro DC Gear Motor

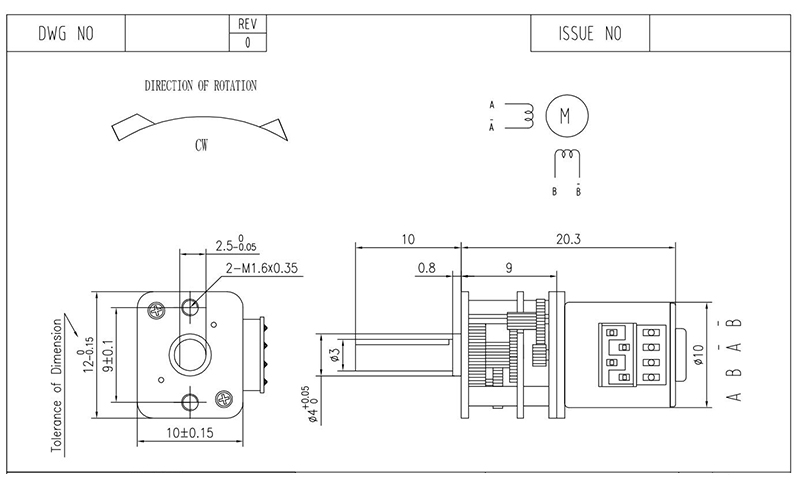

Reference Drawing - GM12-10BY
Technical specification and dimensions for motor customization. For specific requirements, please reach out for technical support.
Technical Drawing
Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L"(mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (Kgf.cm) Current (mA) Torque (Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.95 ≤ 1700 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 3.2 ≤ 3900 12.5

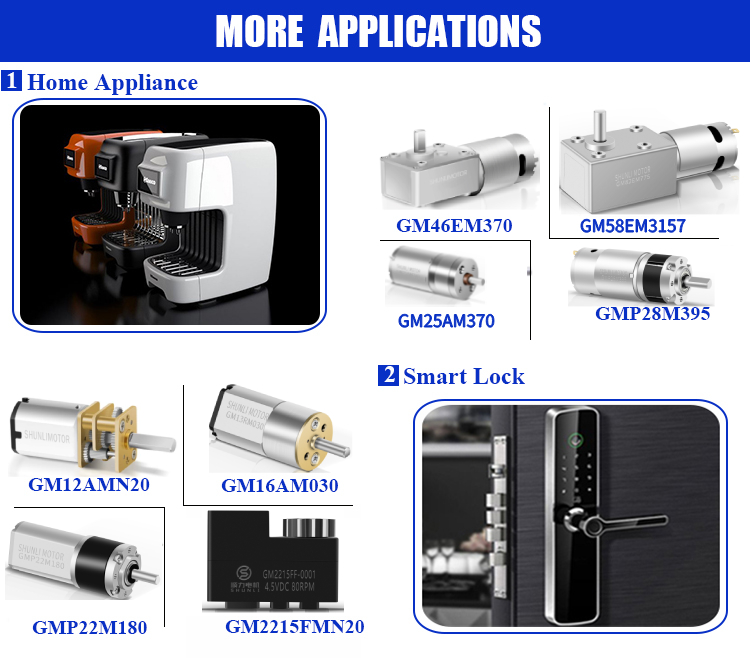

Product Varieties & Applications
DC Motor Series 1

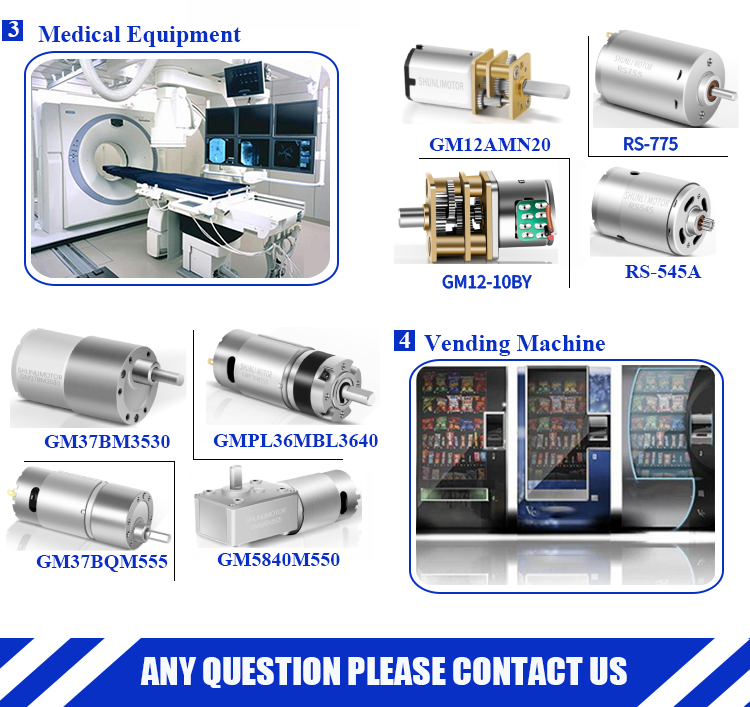

DC Motor Series 2
Quality Certifications
Certificates
Customer Evaluation
Customer Feedback
Production Excellence
As a high-tech enterprise established in 2005, we integrate R&D, production, and sales of various micro DC motors, planetary geared motors, and specialized gearbox motors. Products are widely used in automobiles, communications, smart homes, and medical equipment across 50+ countries.

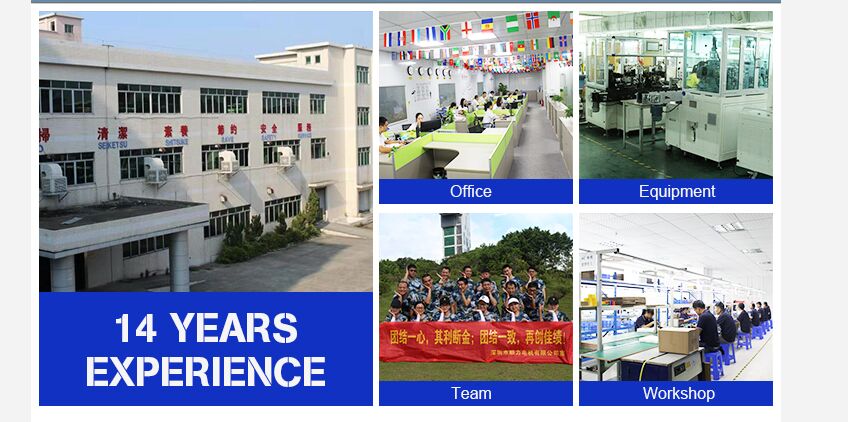

Factory Overview
Manufacturing Line
Testing Equipment
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors for over 14 years.
What payment methods do you support for new orders?
We accept various payment methods including online assurance orders (MasterCard, Visa), PayPal, and TT (Telegraphic Transfer).
Can you provide customized motor solutions?
Yes, we specialize in customization. We can adjust specifications according to your specific project requirements.
Which quality certificates do your motors hold?
Our products are certified with CE, FCC, and ISO. We can also apply for other specific certifications if required by your region.
How do you ensure product quality control?
We have professional inspection personnel on every production line. Finished motors undergo comprehensive testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for custom samples?
Lead times vary based on complexity, but we generally provide technical confirmation and prototypes following a standard development schedule to ensure precision.
