Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
1 / 5
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared

Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared

Send Inquiry

Product Description

Product Overview

Technical Specifications

Motor Detail
Product Model GMP22M130/180
Gearbox Length 13.3~27.3MM
Speed 30RPM-138RPM
Voltage 6V/5V
Torque 0.095 N.m / 0.32 N.m
Customization The Transmission Dimensions And Motor Parameters Can Be Customized

Product Dimensions & Performance

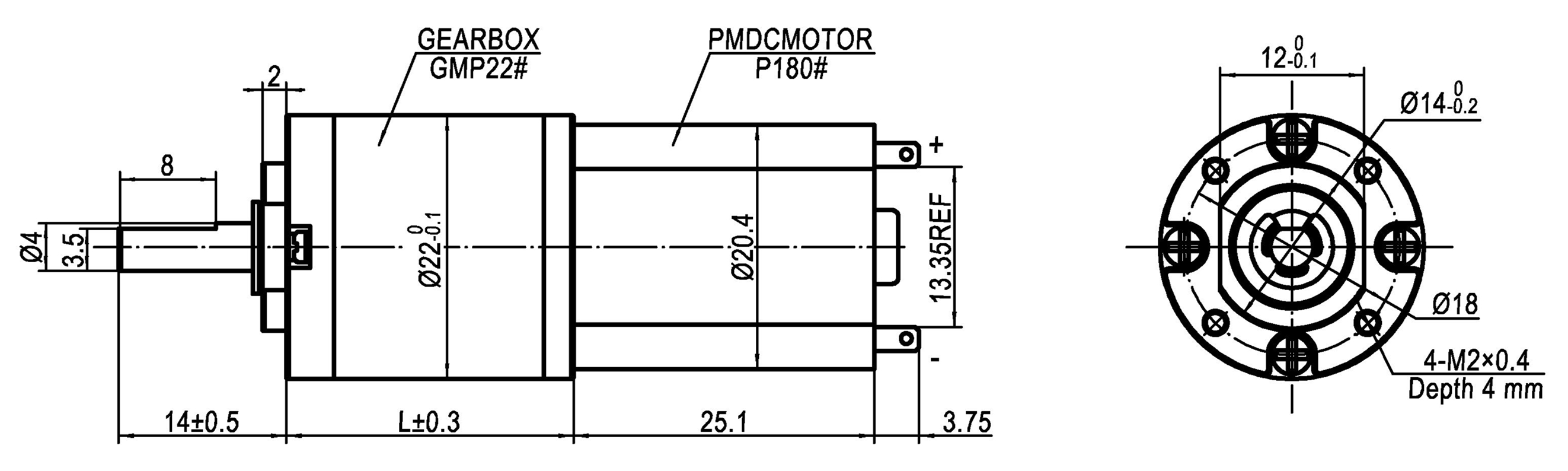

Product Dimension

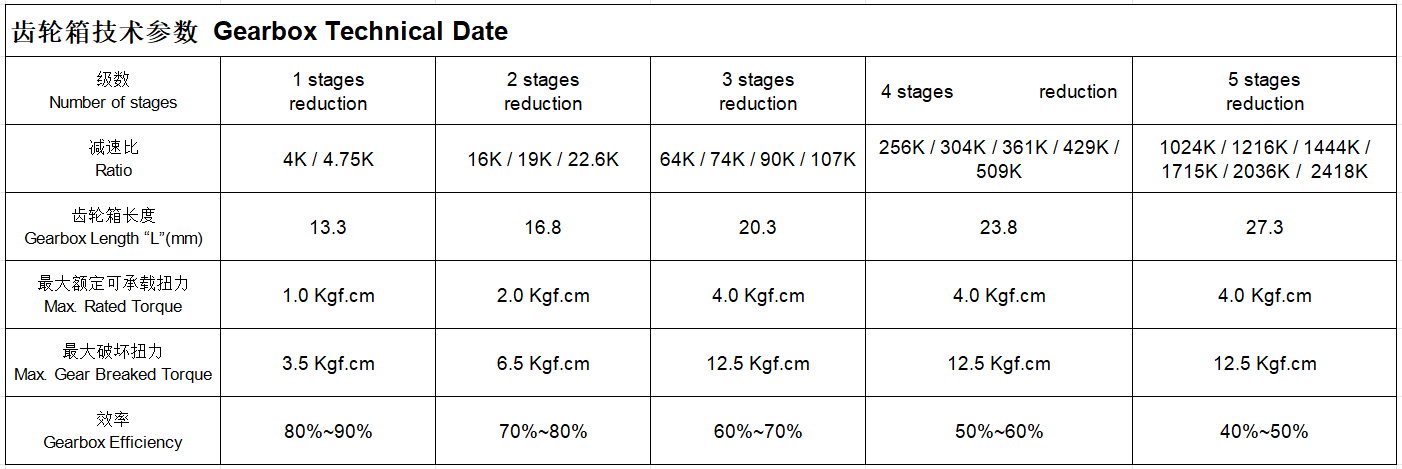

Technical Drawing

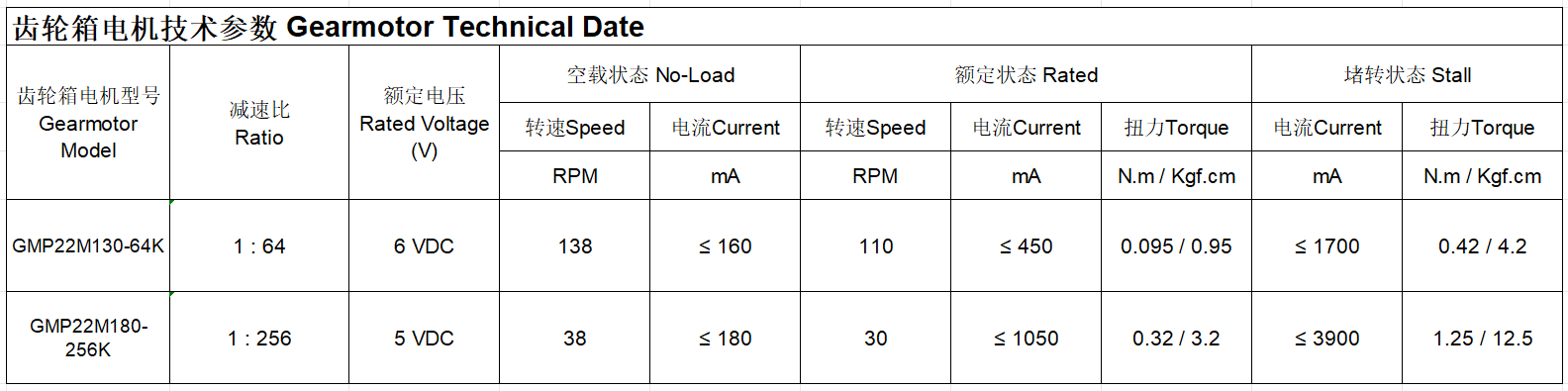

Performance Chart

Production Display

Motor Production 1
Motor Production 2
Motor Production 3
Motor Production 4
Motor Production 5
Motor Production 6

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for new customers?
We can facilitate online assurance orders which accept Master Card, Visa, and other major cards. Customers can also choose to pay via PayPal or TT.
Can you customize a motor if I cannot find a suitable one on the website?
Yes, we provide full customization services to meet specific motor requirements based on customer needs.
Do your motors come with certification?
Yes, our motors are certified with CE, FCC, ISO, and other standards. We can apply for additional certifications if required.
How do you ensure quality control?
We employ professional inspection staff at every stage of production. Finished products undergo rigorous testing using machines such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What is the typical lead time for custom orders?
Lead times depend on the complexity of the customization and order volume. Please contact our support team for a detailed production schedule.
