12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
1 / 4
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

Send Inquiry

Product Description

Product Overview
Product Dimension
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

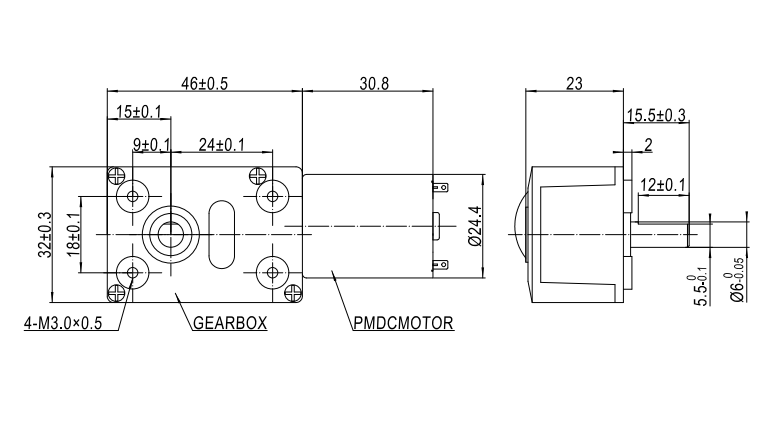

Technical Specifications 1

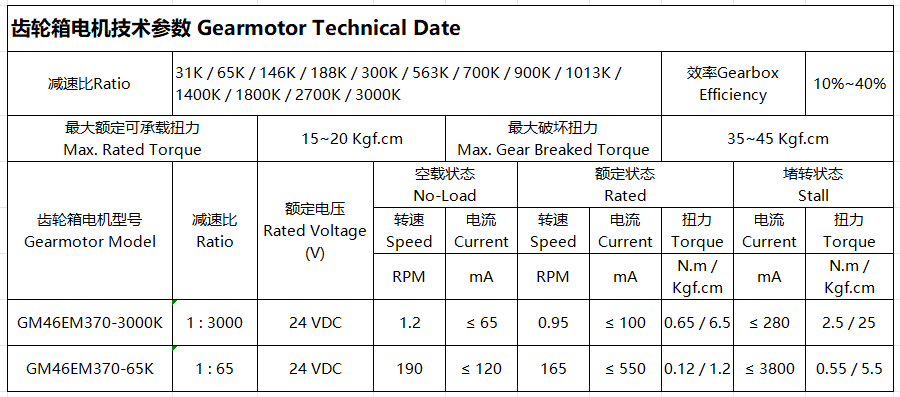

Technical Specifications 2
Product Showcase
Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of industry experience.
What are the available payment terms?
We accept various payment methods including Credit Cards (MasterCard, Visa), PayPal, and TT (Telegraphic Transfer) to ensure a secure and convenient transaction.
Can you provide customized motor solutions?
Yes, we provide full customization services. We can adjust motor parameters and transmission dimensions to meet your specific application requirements.
What certifications do your products hold?
Our products are certified with CE, FCC, and ISO standards. We can also apply for additional certifications if required by your specific market or project.
How do you ensure product quality?
We maintain strict quality control through professional inspection at every production stage. Our testing facility includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testing machines.
What is your standard lead time for orders?
Lead times depend on order volume and the level of customization required. Please reach out to our team with your specifications for an accurate delivery timeline.
