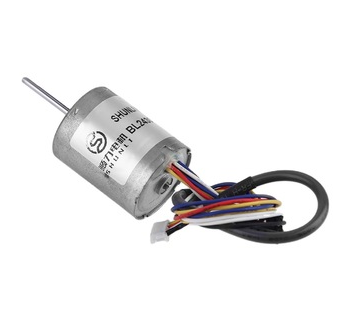

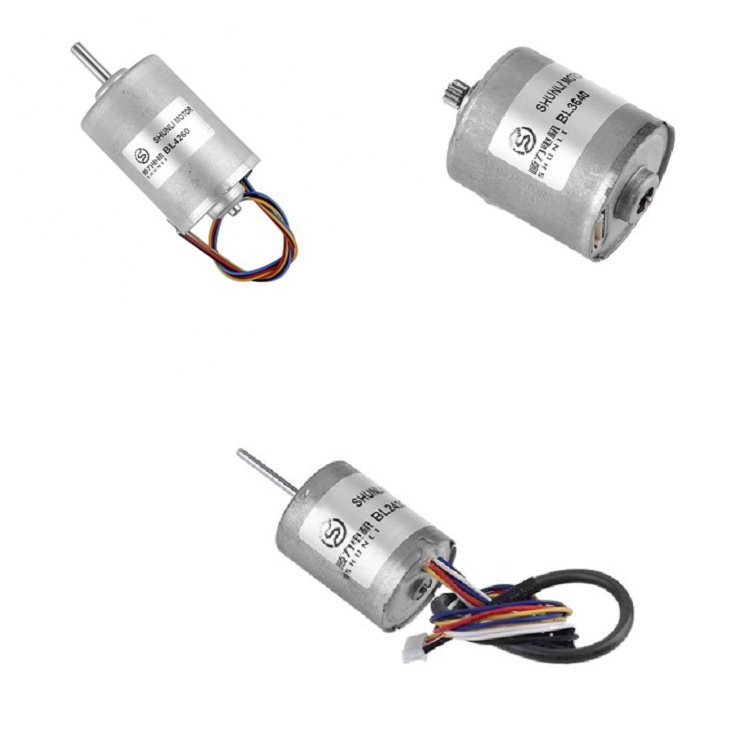

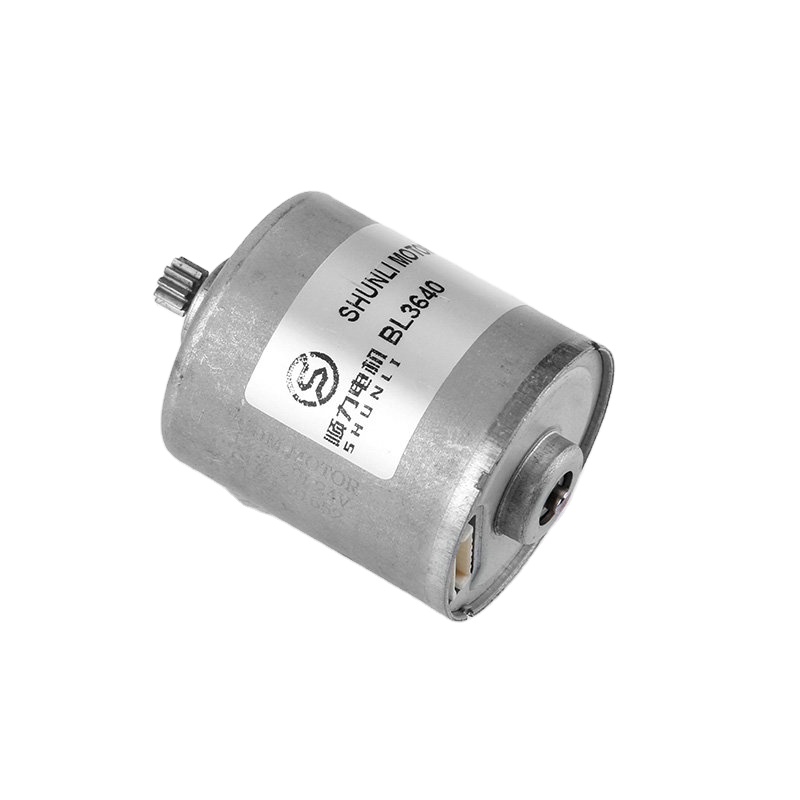

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

1 / 5

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Send Inquiry

Product Description

12V 18V 24V High Speed 36 mm Brushless DC Motor for Fan

Product Details

Motor Customized Specification Available

Reference Technical Specification

BLDC MOTOR Terminations

PIN NO.	PIN Arrangement
1	VCC
2	FG
3	CW/CCW
4	GND
5	PWM

Reference Datasheet

Frequently Asked Questions

What are the available voltage options for this brushless DC motor?

This motor supports multiple voltage configurations, including 12V, 18V, and 24V.

What is the maximum speed this motor can reach?

The motor is designed for high-speed performance, reaching speeds of 20,000 RPM, 30,000 RPM, or up to 40,000 RPM depending on the specific configuration.

What is the torque rating for the 36mm BLDC motor?

The rated torque generally ranges between 100 G.CM and 150 G.CM.

Can the technical specifications be customized?

Yes, we provide customized motor specifications to meet your specific project requirements.

What functions do the 5 pins of the motor termination provide?

The 5-pin arrangement includes VCC (Power), FG (Feedback), CW/CCW (Direction control), GND (Ground), and PWM (Speed control).

What is the primary application for this motor?

This high-speed 36mm brushless motor is ideally suited for fan applications and other equipment requiring compact, high-RPM performance.

Product Detail

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Product Description

12V 18V 24V High Speed 36 mm Brushless DC Motor for Fan
