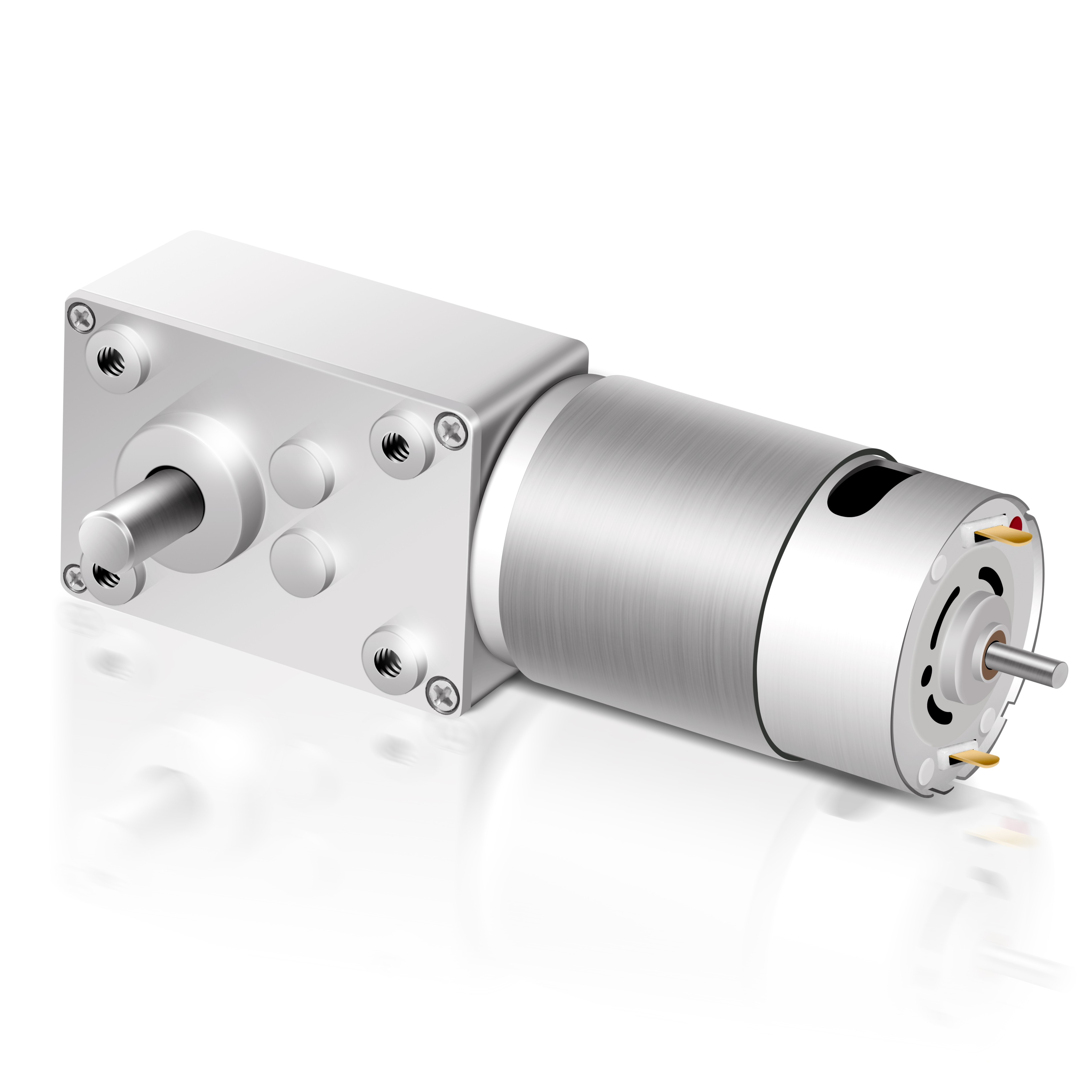

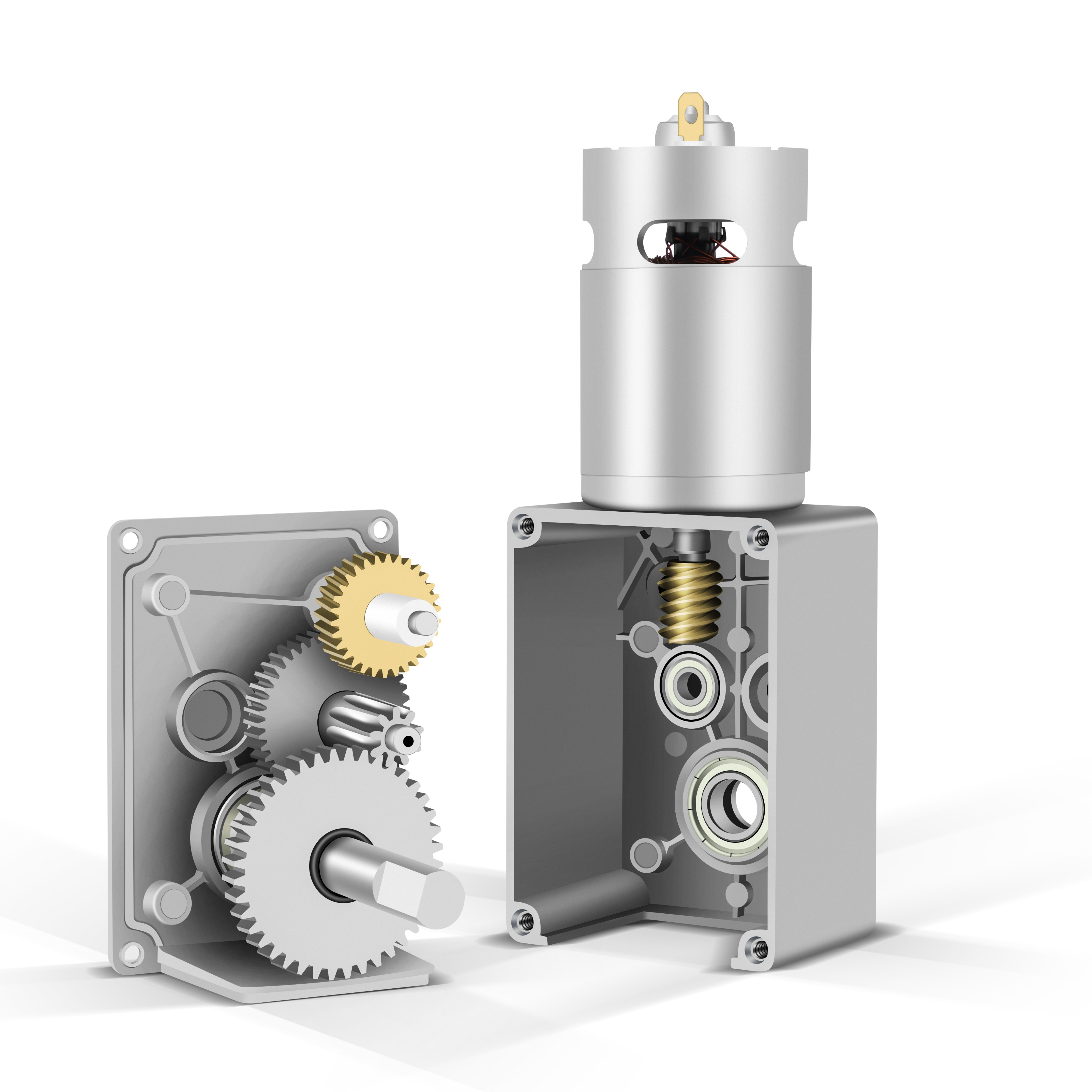

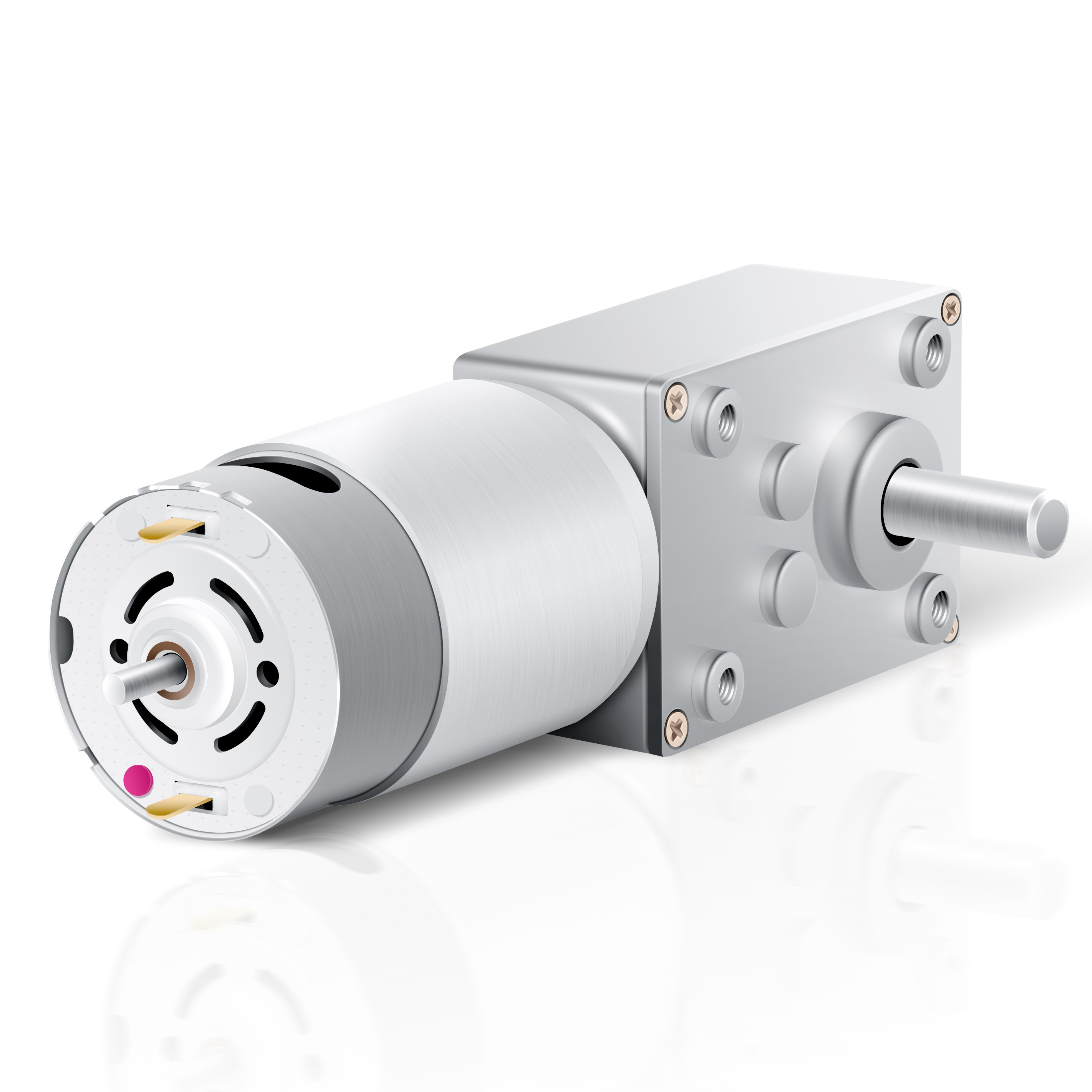

Modulox Drive
Modulox Drive

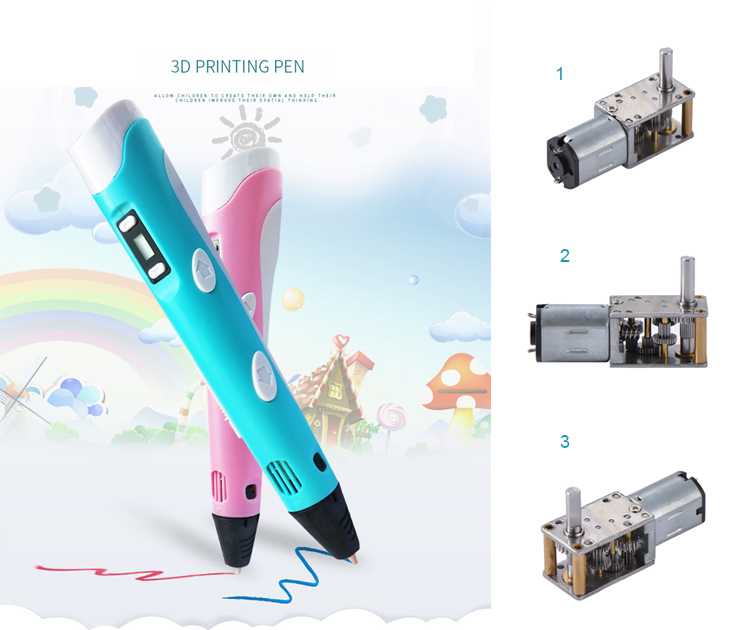

Specially designed for 3D printing pens and high-precision applications, offering both brush and brushless options for versatile industrial needs.
| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
| Model | Ratio | Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| RPM | mA | RPM | mA | Torque (gf.cm) | mA | Torque (gf.cm) | |||
| GM1220EMN20-95K | 1:95 | 4.5 VDC | 145 | ≤70 | 122 | ≤200 | 80 | ≤700 | 750 |
| GM1220EMN30-1007K | 1:1007 | 12 VDC | 25 | ≤90 | 22 | ≤230 | 1200 | ≤400 | 4200 |
| Model | Length (mm) | Voltage | No-Load RPM | No-Load mA | Rated RPM | Rated Torque | Stall Torque |
|---|---|---|---|---|---|---|---|
| SL-N20 | 15 | 4.5 VDC | 14000 | ≤40 | 12000 | 2.5 gf.cm | 15 gf.cm |
| SL-N30 | 20 | 12 VDC | 25400 | ≤50 | 22600 | 5 gf.cm | 42 gf.cm |

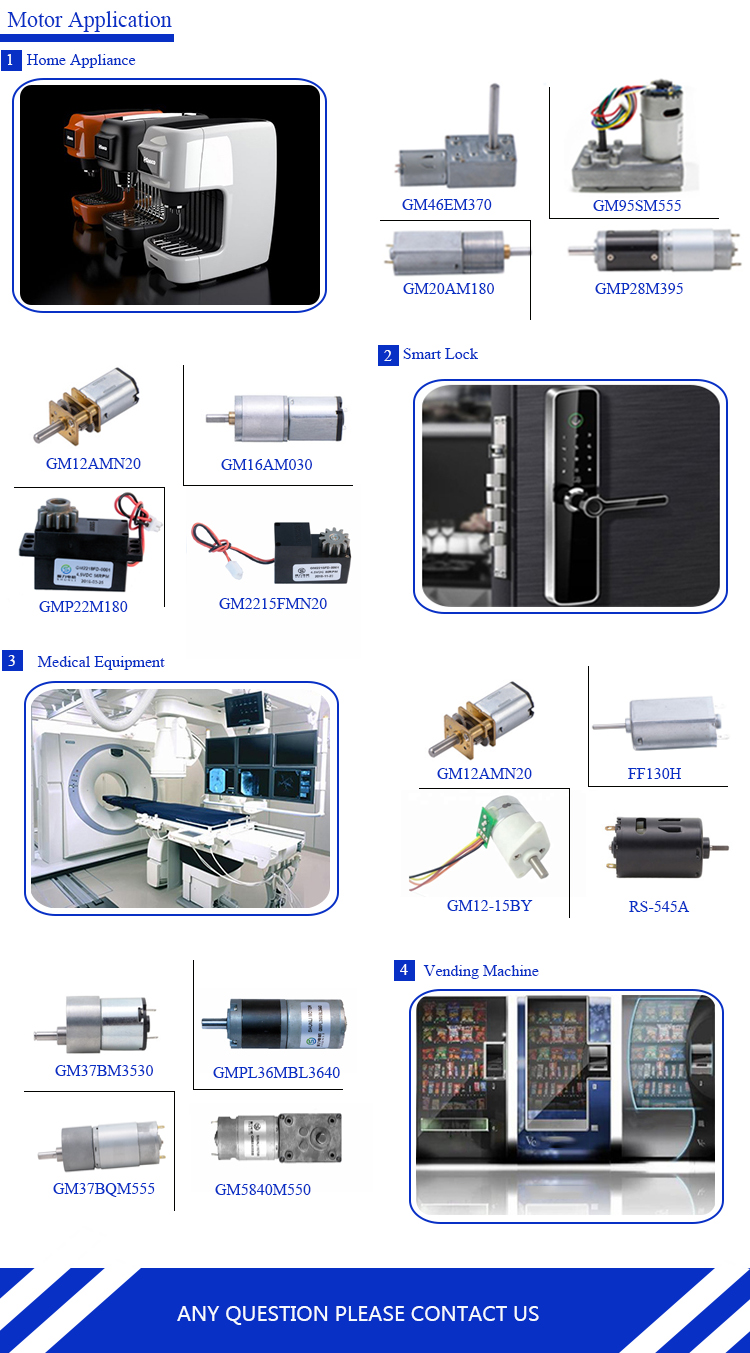

Our motors are extensively used in smart home devices, security systems, medical equipment, and high-end 3D printing technology.

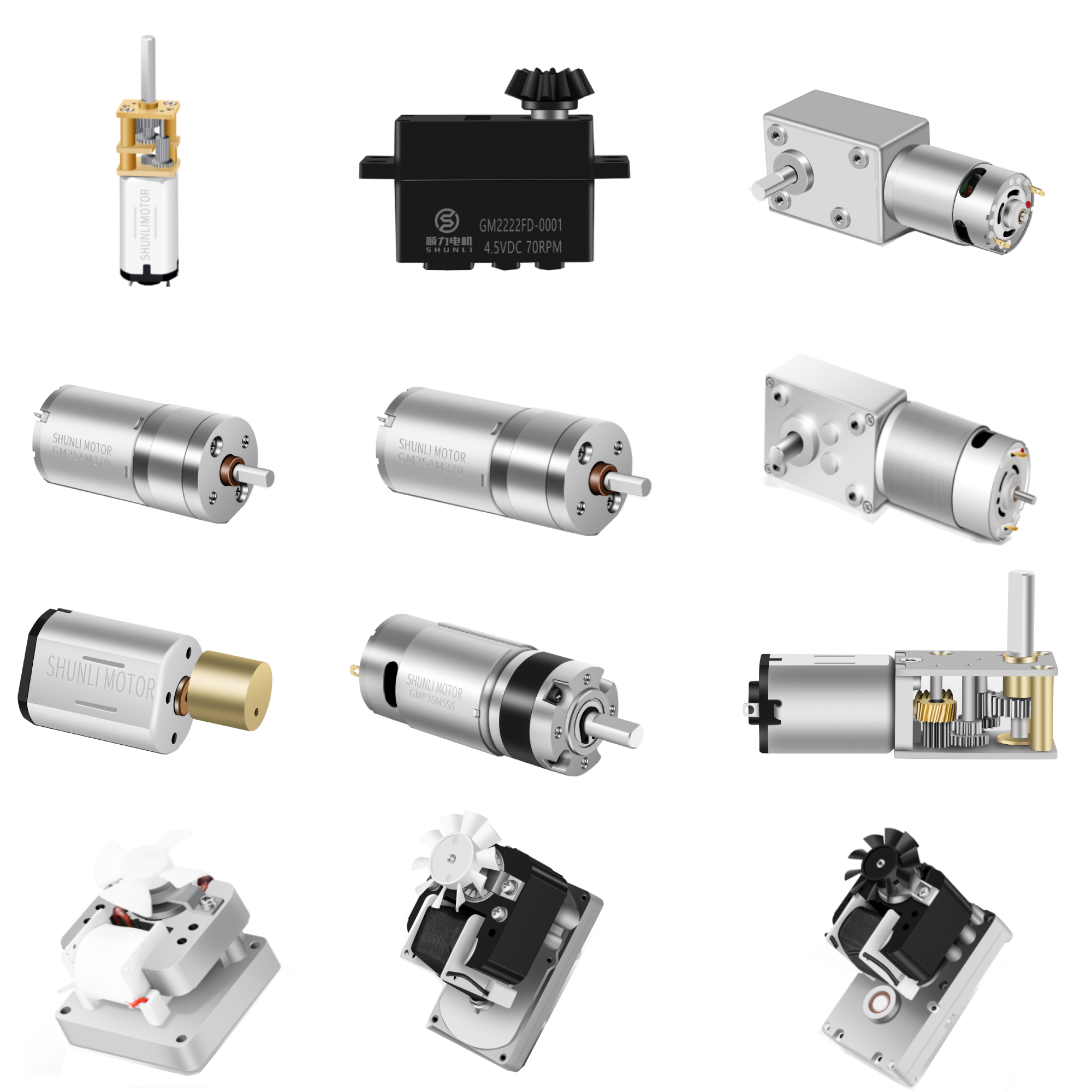

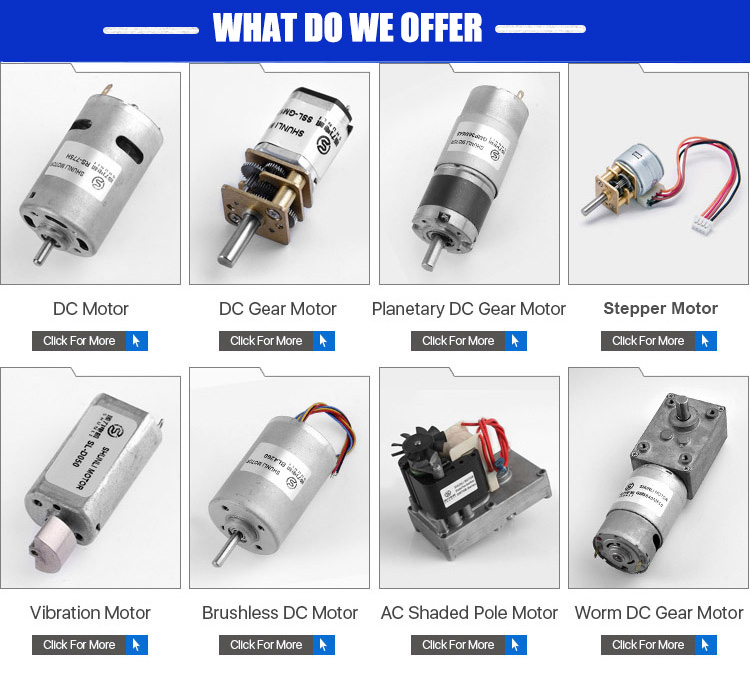

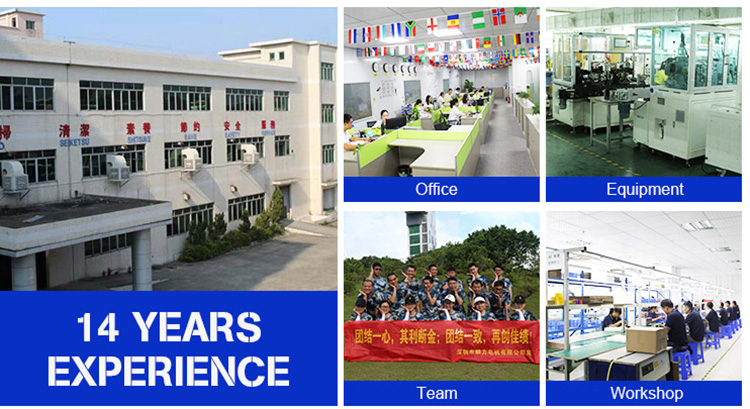

Established in 2005, we are a high-tech enterprise integrating the research, development, production, and sales of various micro DC motors, geared motors, planetary geared motors, and special gearbox motors. Our products are widely used in automobiles, communications, smart home systems, and medical equipment. We export to more than 50 countries and regions worldwide.
